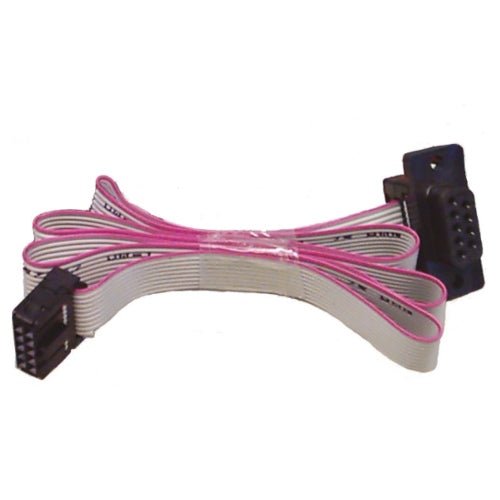

Simplex 733-794 — serial download cable used to program the Simplex SDACT from a personal computer.
The Serial DACT is the digital alarm communicator transmitter that reports panel events to a central station, and its accounts and reporting formats are built on a computer rather than entered at the panel. Simplex instructions 574-090 list this cable among the items needed to run the SDACT Programmer; it runs from the computer serial port to connector P4 on the SDACT.
- Simplex designation: 733-794 Serial Download Cable
- Connects a computer serial communications port to SDACT connector P4
- For the SDACT Programmer with 4020, 4100 and 4120-0155 SDACT
- Also required: a 742-079 software key, or the 740-989 TR key
- Also required: 4100 Programming Unit software Rev. 8.02 or later
- SDACT switch SW3 is set on to program and download, then returned off
Match the full number rather than the 733 prefix, which covers unrelated cables: 733-894 belongs with the 4905-9816 adapter module and 733-974 appears on 4006 panels and 4610 annunciators. No Simplex document read gives its connector type or length.
