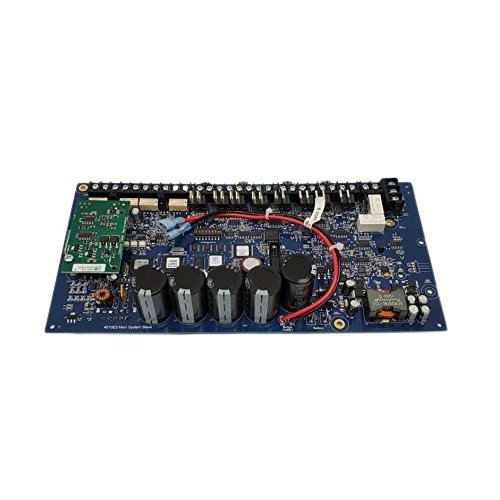

Simplex 650-442 — 4010ES Main System Supply assembly, the variant with an IDNet+ addressable channel.
The Main System Supply, MSS in Simplex shorthand, is the power source and field-wiring hub of a 4010ES: 24 VDC card power, the notification appliance circuits and the addressable loop. Simplex ships it installed inside the panel, so one bought alone is a service assembly — no back box, dead front, door, CPU, operator interface or batteries.
- 8 A available power, four NACs, one auxiliary relay at 2 A and 32 V, one 2 A auxiliary power tap
- Single channel, dual isolated loop IDNet+ circuit for up to 248 devices, Class A or B
- IDNet+ limits: 50 Ω loop resistance to 125 devices, 35 Ω from 126 to 248, 0.6 µF capacitance
- AC input 4 A maximum at 120 VAC, or 2 A at 220 to 240 VAC, 50 or 60 Hz
- DC output 19.9 to 31.1 VDC; charger float 27.4 VDC, rated for 110 Ah (UL) and 50 Ah (ULC)
The MSS has two forms. This one fits panels 4010-9401, 4010-9402, 4010-9501 and 4010-9502; the version with no IDNet channel serves the MX Loop panels 4010-9403 and 4010-9503. The IDNet 2+2 card 4010-9929 is a separate module.
