Simplex 6310-9226 Industrial Synchronous Wall Mount

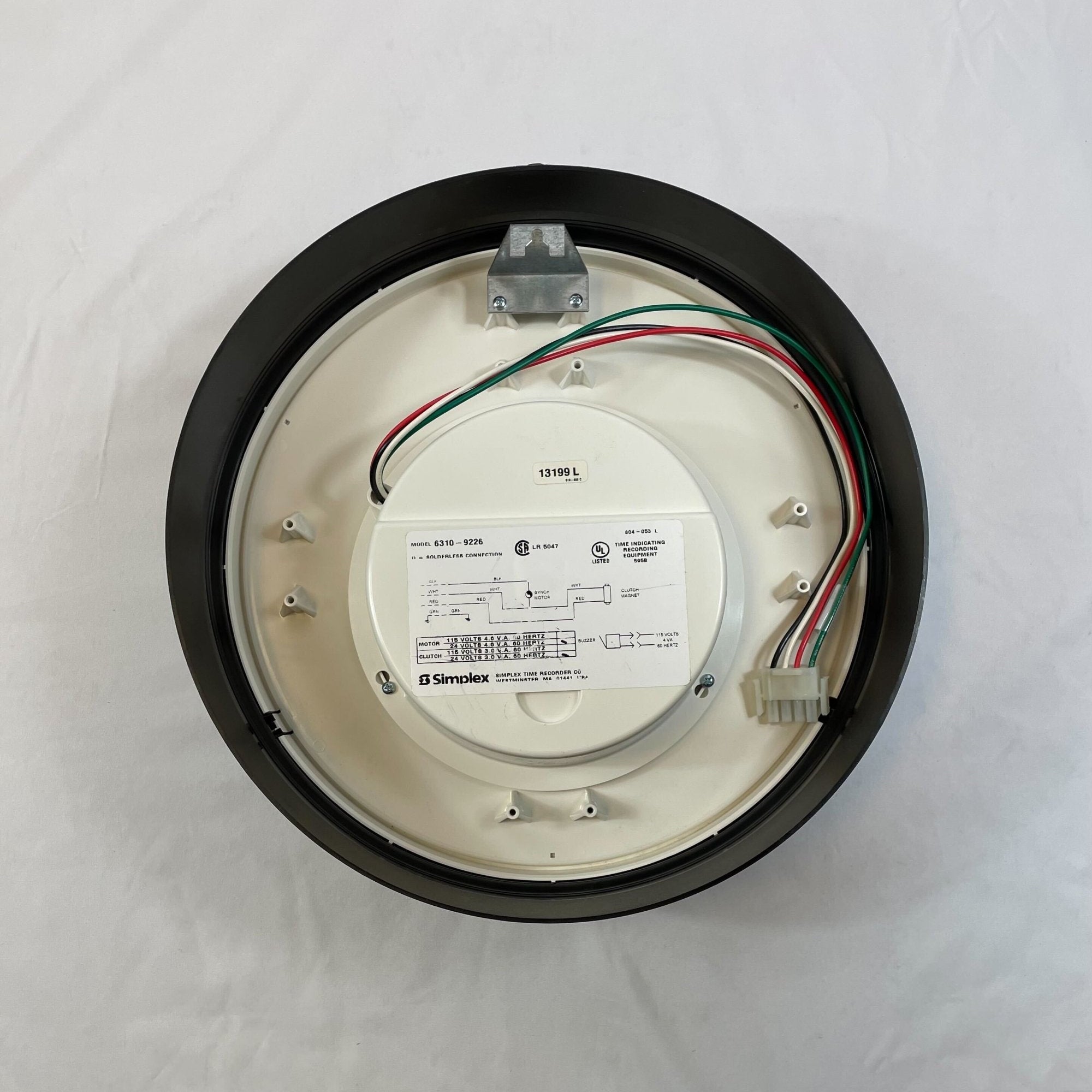

The Simplex 6310-9226 is a 12 in. round synchronous wall clock in a black case that runs on 24 V, 60 Hz and corrects on the same voltage. Clocks in this series synchronize with a Simplex Time Control Center every hour and also apply a 12-hour correction after longer outages. The current datasheet lists the part as 6310-9226A (Series A).
Key Features

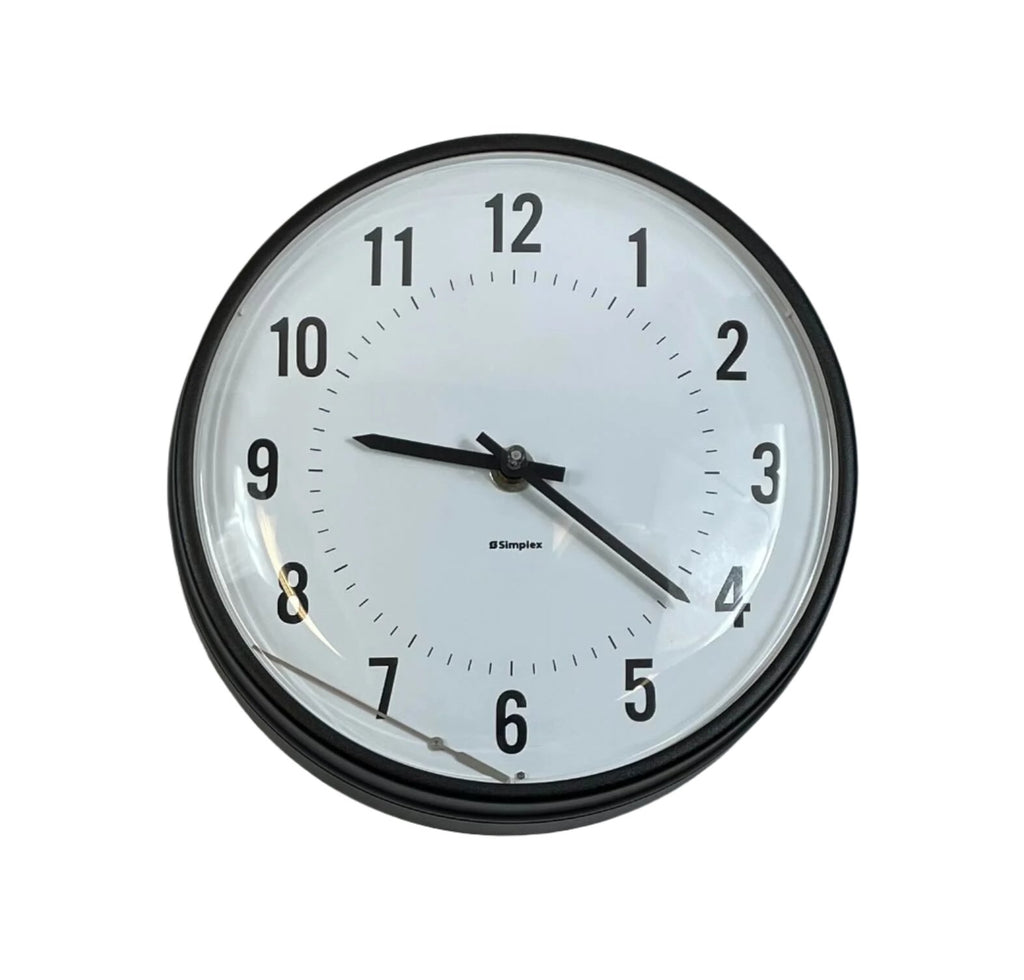

- 12 in. round SlimLine case with hour, minute and stepped second hands
- Hourly correction: clocks up to 59 minutes slow or 55 seconds fast are corrected on the hour
- 12-hour correction for clocks up to 12 hours slow
- Corrects Simplex 59-minute, National Time/Rauland and various 58-minute formats
- Microprocessor-based movement
- Dial face style S, 1-12 hours; Molex power connector
Specifications
| Size |
12 in. round |
| Operating / correction voltage |
24 V, 60 Hz |
| Voltage input (24 V models) |
7-28 VDC/VAC, 50/60 Hz |
| Average current |
35 mA @ 24 VDC/VAC |
| Case |
ABS, black |
| Crystal |
Shatter-proof transparent polycarbonate |
| Temperature range |
32 to 120 F |
Compatible With
- Simplex Time Control Center / master clock systems
