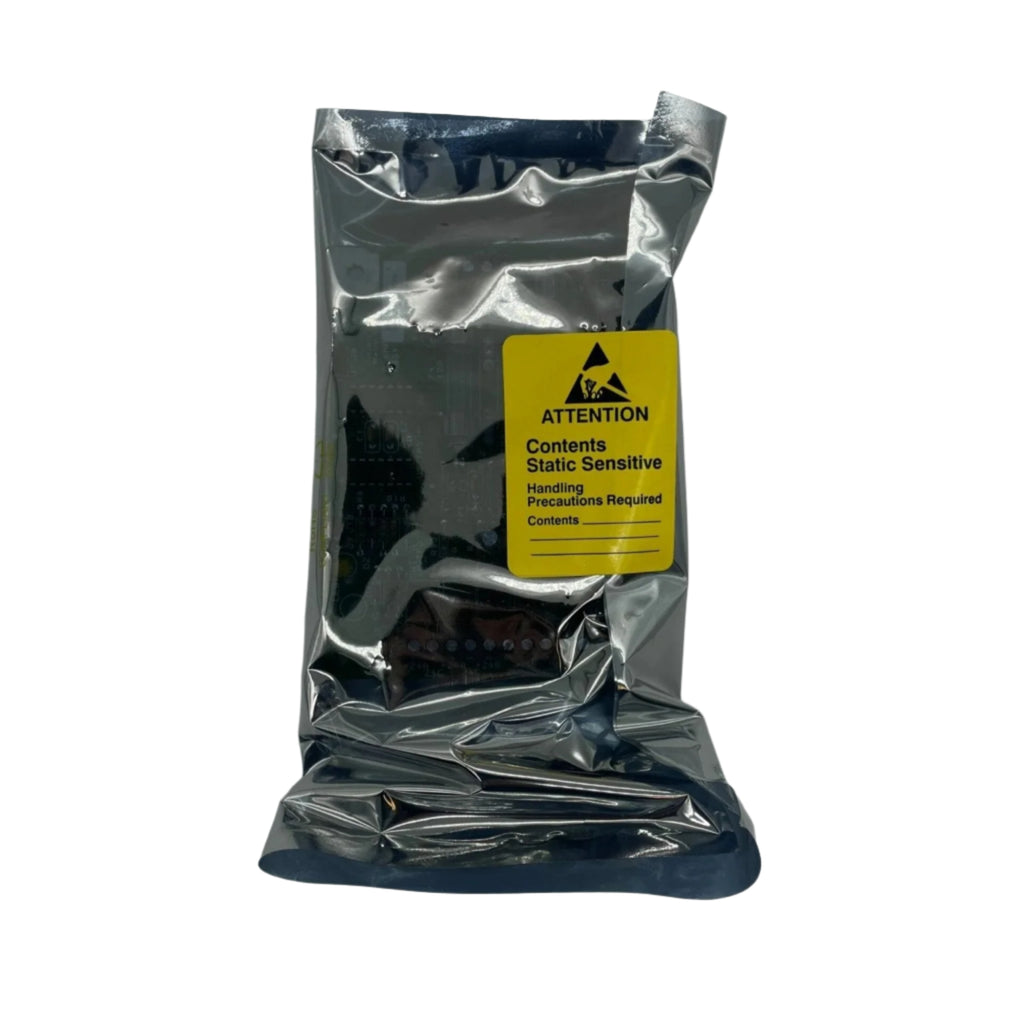

Simplex 565-079 Power Supply 8 Amp 100 Watt Power Supply 4100
The 565-079 is the 8 A power supply board used in legacy Simplex 4100 audio systems as the power supply for the 100 W amplifier. Simplex builds the same board in two configurations: as 565-028 it is the 8 A expansion power supply, and as 565-079 it powers the 100 W amplifier.
Key Features
- 24 VDC output through a 12 A replaceable output fuse (F4)
- 15 A replaceable input fuse (F3)
- Trouble LED lights on low or disconnected batteries, loss of rectified DC, or a blown fuse
- Jumper J10 selects the 565-079 configuration (J9 for 565-028)
Specifications
| Rating |
8 A / 100 W amplifier supply |
| Output |
24 VDC |
| Output fuse |
F4, 12 A |
| Input fuse |
F3, 15 A |
Compatible With
- Simplex 4100 / 4100+ fire alarm control panels
- Simplex 4100 Universal Transponder (UT)
- Simplex 4100 100 W audio amplifier
