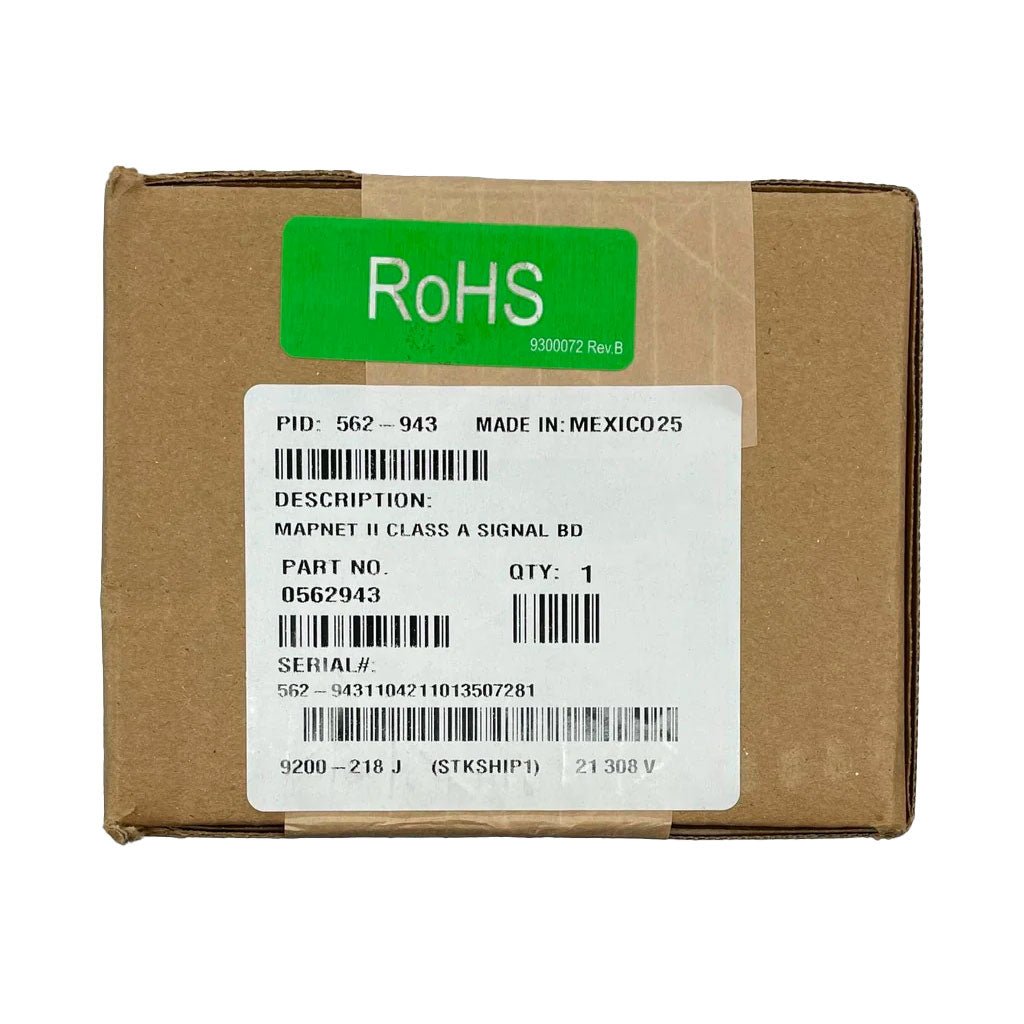

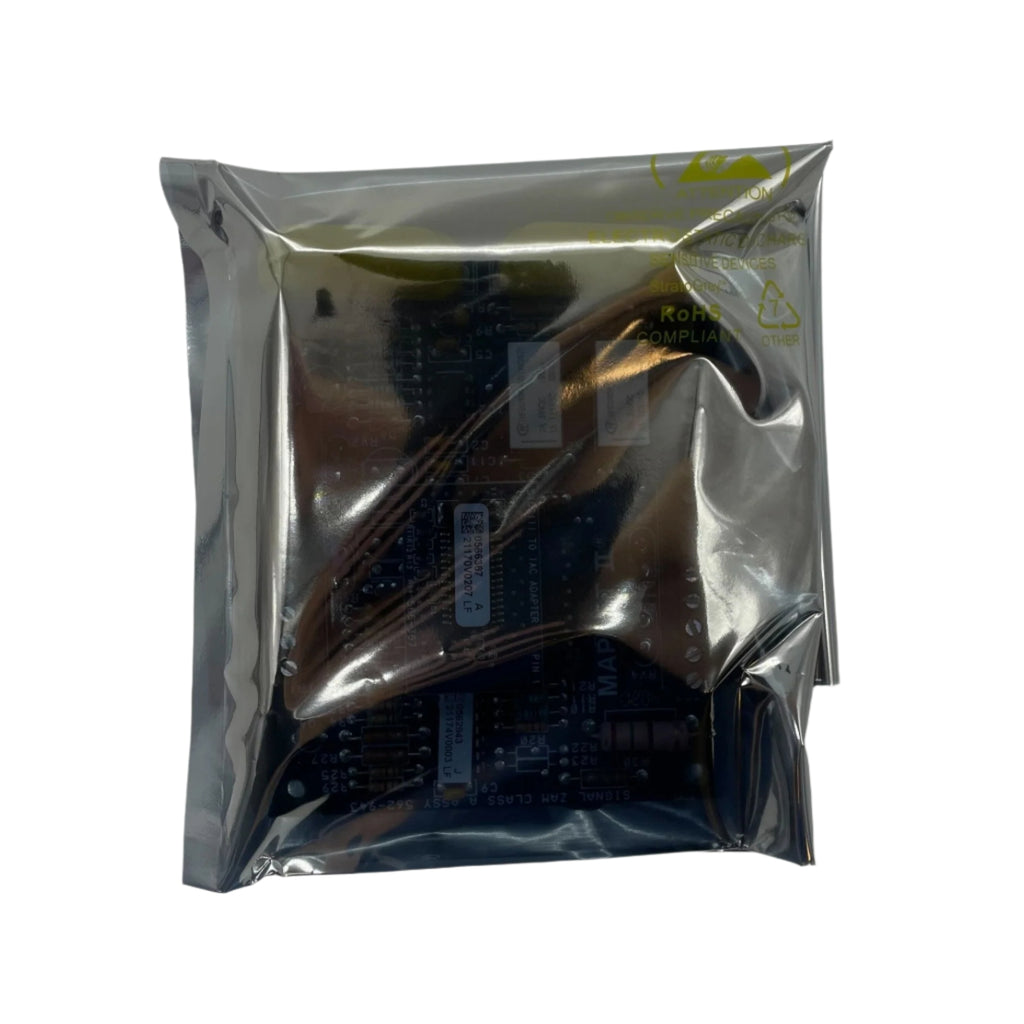

Simplex 562-943 (0562943) Mapnet LI Class A Signal Board
The 562-943 is the MAPNET II Signal ZAM (zone adapter module) board for Style Z (Class A) notification appliance circuits. A Signal ZAM gives a MAPNET II addressable panel a supervised, addressable output for a conventional circuit of 24 VDC notification appliances, speakers or firefighter telephones. Simplex sold the Class A Signal ZAM as catalog models 2190-9159 (surface cover) and 2190-9160 (flush cover).
Key Features
- Supervises and operates a Style Z (Class A) notification appliance circuit
- Output capacity up to 2 A at 24 VDC, or 50 W of 25 VRMS speakers, or up to three simultaneously active firefighter phones
- Address set by 8-position DIP switch
- Needs separate 24 VDC power from a listed fire alarm power supply
- Screw terminals for 18 to 12 AWG wire
- Uses 2 A fuses, part 208-048
Specifications
| Communications |
MAPNET II, 24 to 40 VDC with data |
| Supervisory current |
15 mA at 24 VDC |
| Alarm current |
65 mA at 24 VDC |
| Output capacity |
2 A at 24 VDC; 50 W at 25 VRMS |
| Operating temperature |
32 F to 120 F (0 C to 49 C) |
| Humidity |
Up to 85% RH at 86 F (30 C) |
Compatible With
- Simplex 4100 / 4100U with MAPNET II communications
- Simplex 4100 Universal Transponder
- Simplex 4120 network nodes
- Simplex 4020
- Simplex 2120 Communicating Device Transponder (CDT)
