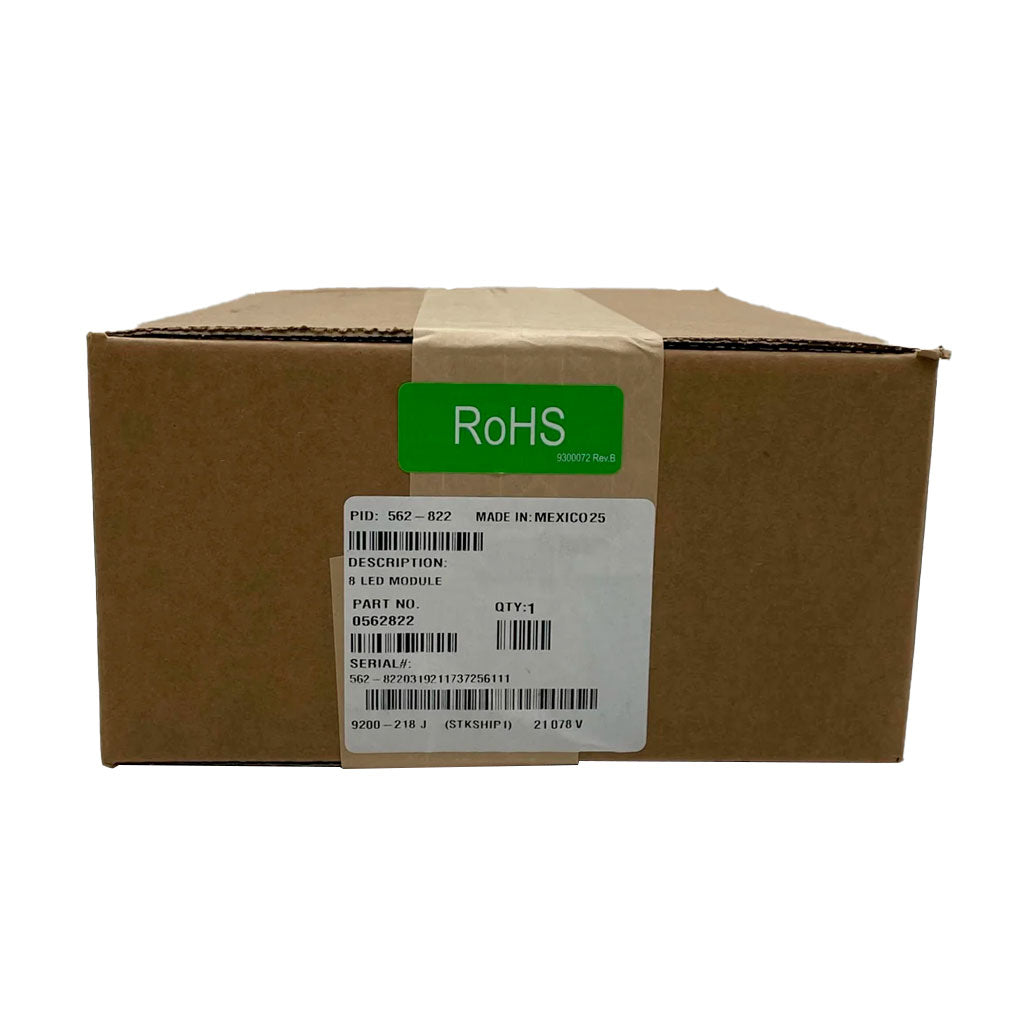

Simplex 562-822 8 LED Module
The 562-822 is an 8-LED display module for legacy Simplex 4100 panels, supplied with eight red LEDs and no switches. It is used in the panel's LED/switch annunciation area to show zone or point status.
Key Features
- 8 red LEDs, no switches
- Display module for the LED/switch annunciation area of legacy Simplex 4100 panels
- LEDs are pluggable, so colors can be changed, and are supervised for failure or removal
- Switches are 3-position, center-off
- Two 26-pin connectors (P1/P2) link the module by flex ribbon harness to the master controller or 64/64 LED/switch controller and to the next module
- Front overlay is part 635-892
Compatible With
- Simplex 4100 / 4100+ fire alarm control panels
- Simplex 4100 Universal Transponder (UT)
