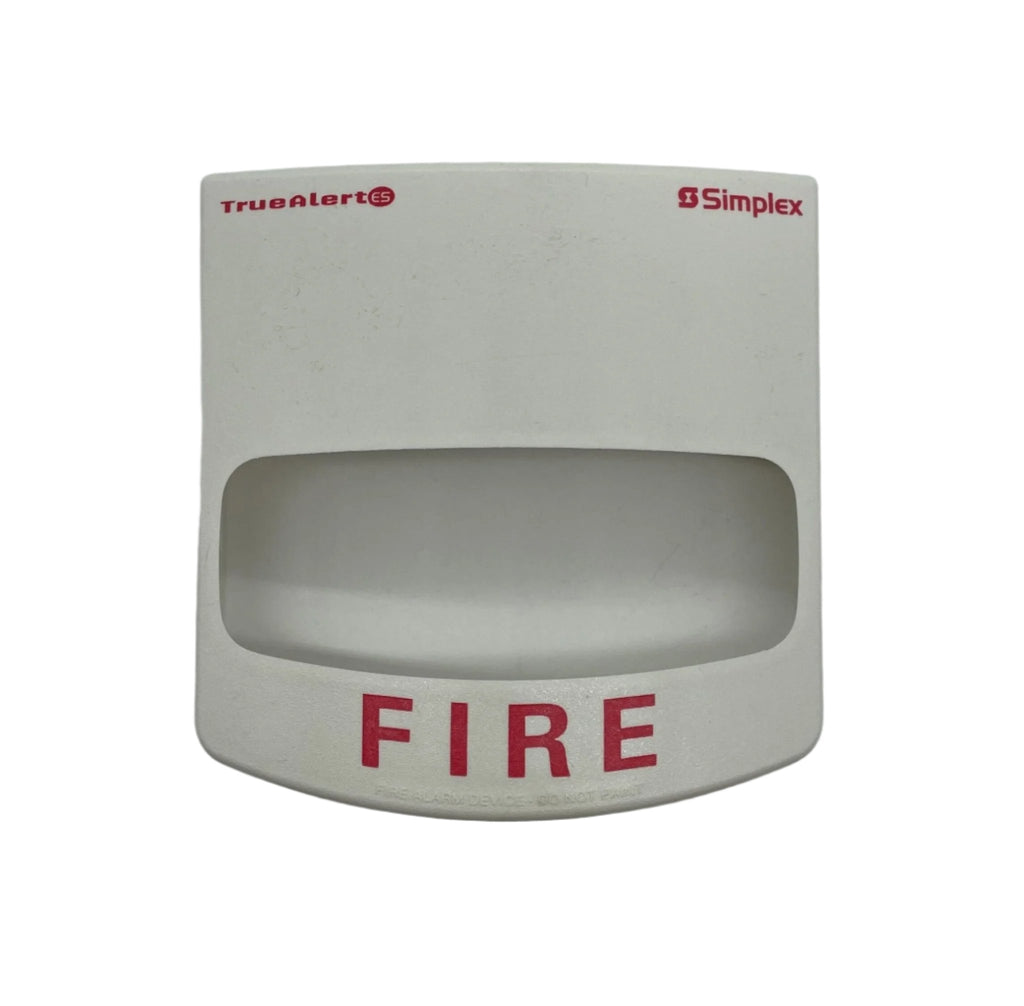

Simplex 49VO-WWF — TrueAlert ES addressable wall mount multi-candela strobe, white cover with FIRE wording and a clear lens.
This is a visible only appliance. Simplex classes the 49VO series as V/O notification and certifies it to the strobe standards alone, so there is no horn in it. Each unit is individually addressed over an IDNAC signalling line circuit, which holds a regulated 29 VDC even on battery standby.
- Certified to UL 1971 and ULC S526; UL, ULC and CSFM certified, FM approved
- Candela set from the panel or by jumper at 15, 30, 75, 110, 135 or 185 cd
- At 23 VDC those six settings draw 47, 57, 100, 132, 160 and 208 mA
- On legacy TrueAlert circuits only 15, 30, 75 and 110 cd are available
- 5-1/8 × 5 × 2-5/8 in. (130 × 127 × 67 mm) with cover; 32 to 122 °F

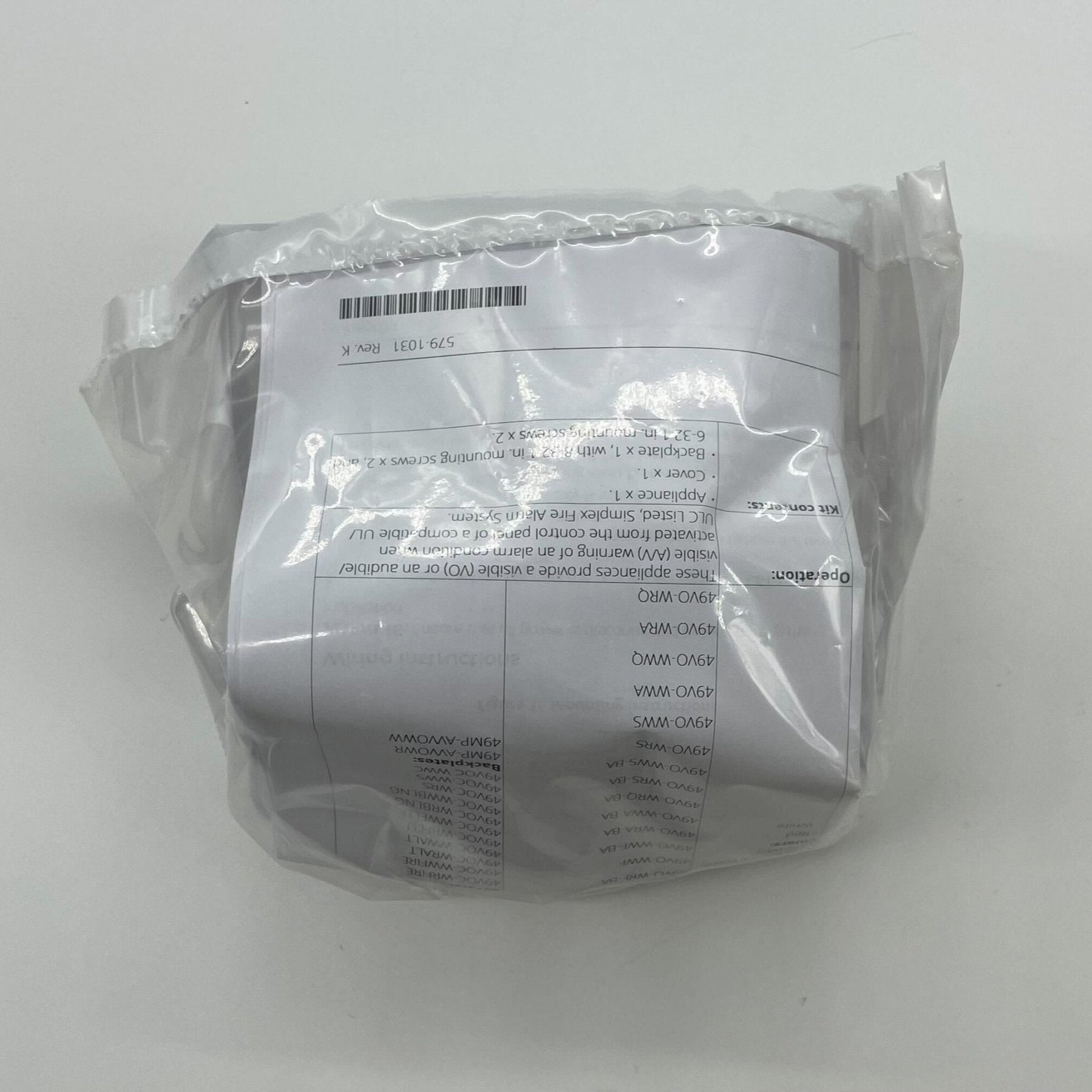

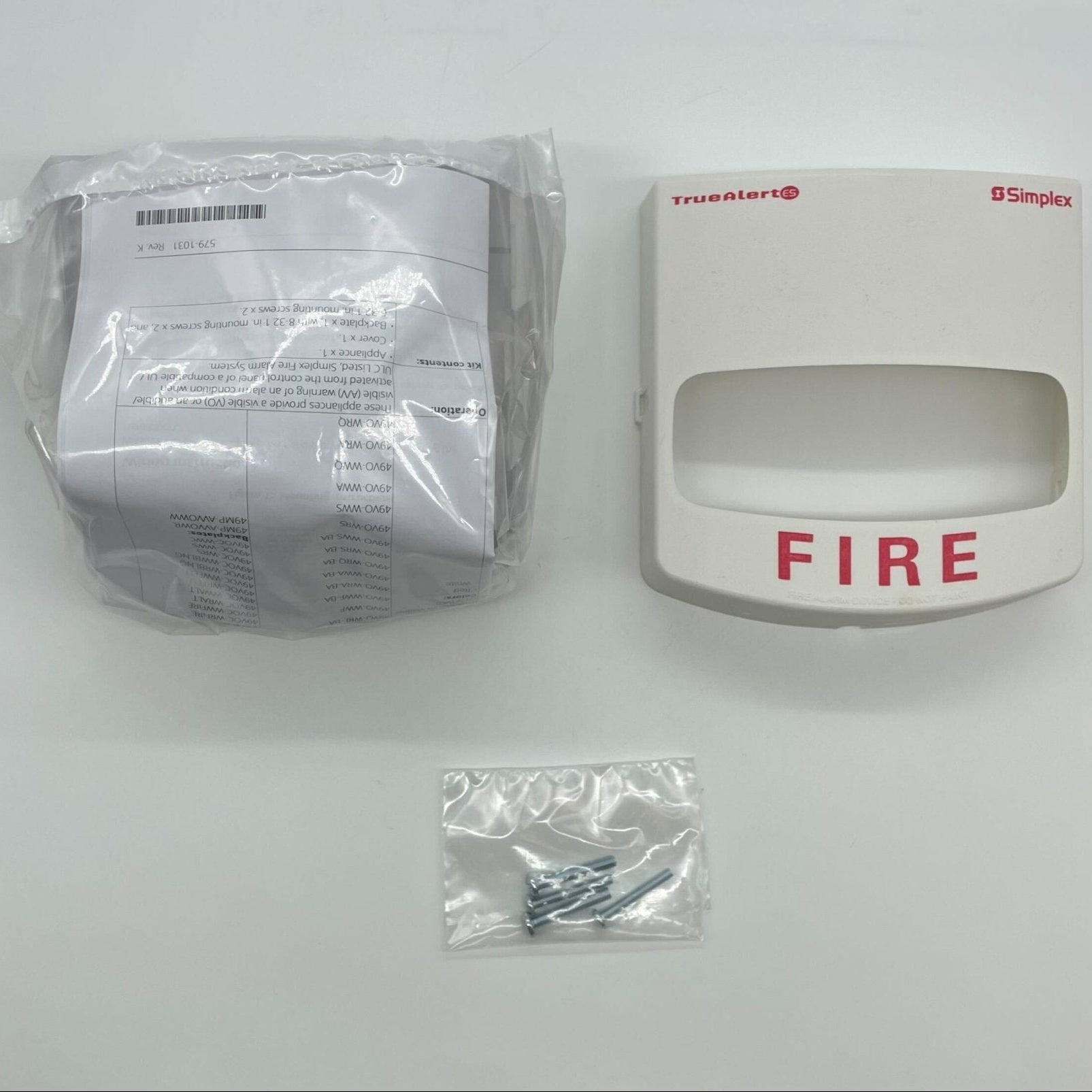

- Supplied with cover and matching mounting plate; terminals 18 to 12 AWG
Across the series only cover colour and wording change: 49VO-WRF is red with FIRE and 49VO-WWA carries ALERT, while 49VO-APPLW ships without cover or mounting plate. Where an audible device is wanted, the wall mount horn strobe is the separate 49AV series.
Documents
FAQ
Does the 49VO-WWF have a horn?
No. It is a visible only strobe. For a wall mount horn strobe, use the 49AV series, such as the 49AV-WWF.
What powers and controls it?
It is individually addressed on a Simplex IDNAC signaling line circuit, which keeps a regulated 29 VDC even during battery standby. Each strobe uses 1 unit load, with up to 127 addresses and 139 unit loads per SLC.
Can it be used on older TrueAlert addressable systems?
Yes, it is compatible with legacy TrueAlert addressable systems for upgrade and replacement, where only the 15, 30, 75 and 110 cd settings are available.
What box does it mount on?

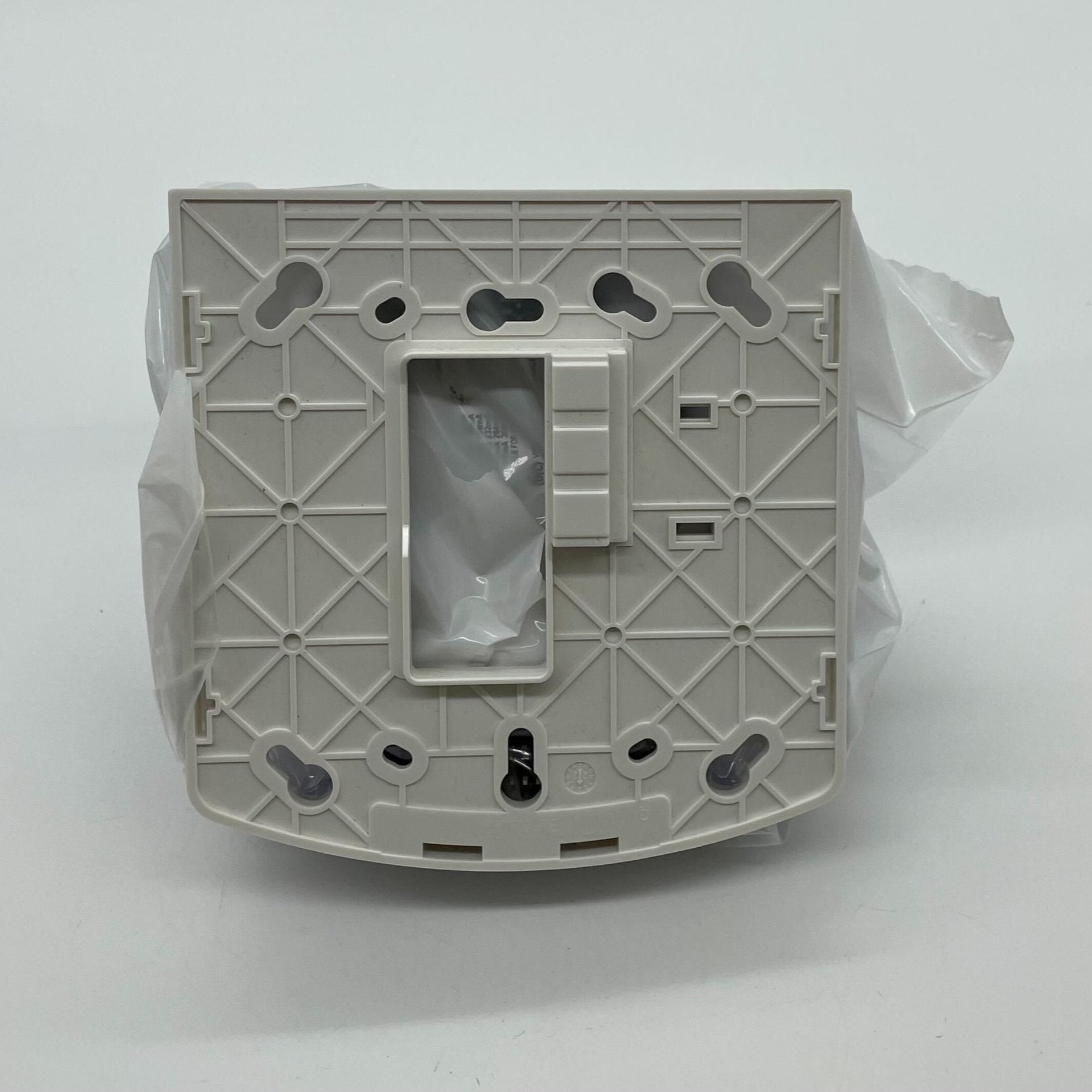

The separate mounting plate fits a single gang, double gang or 4 in. square box, so wiring can be completed before the appliance is mounted.
