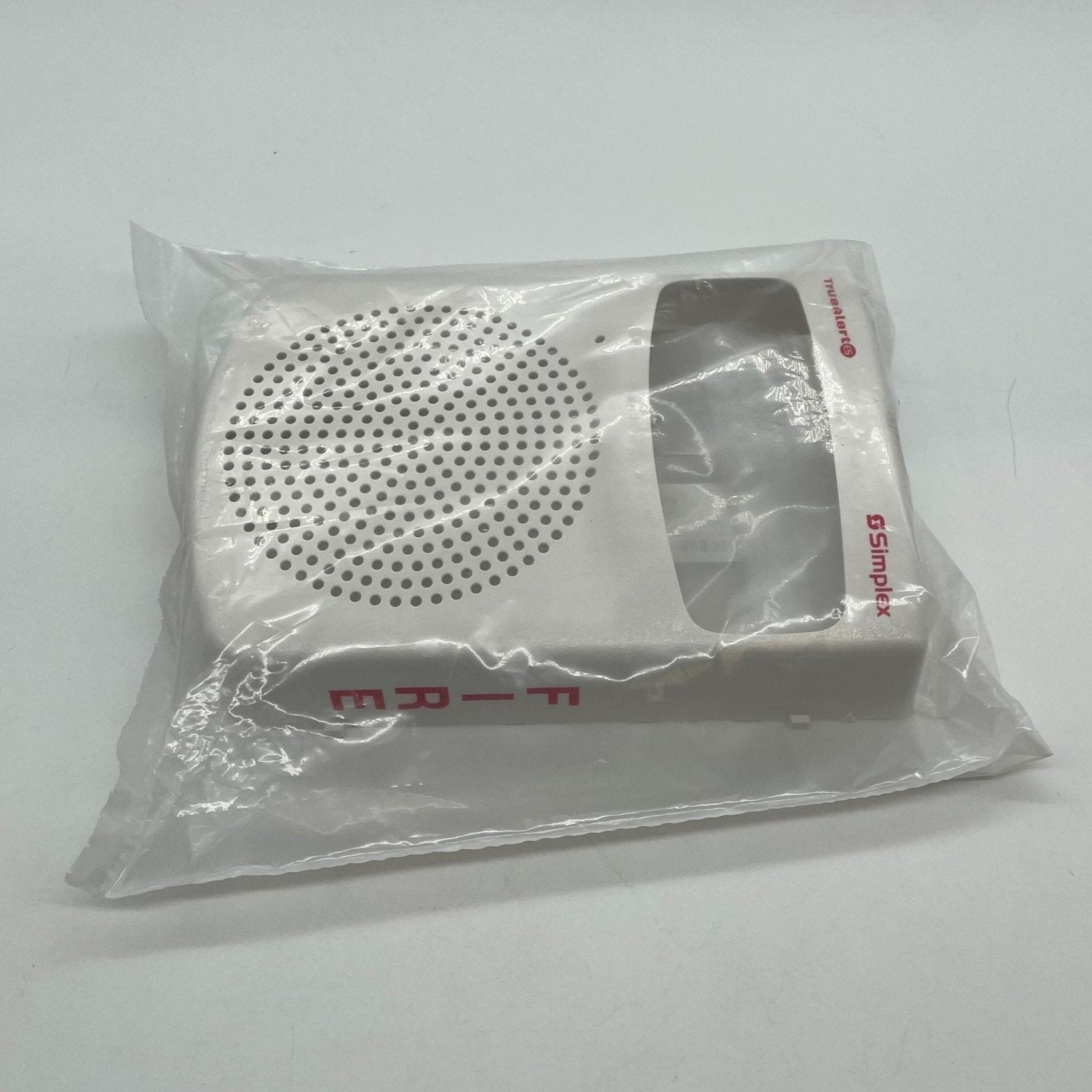

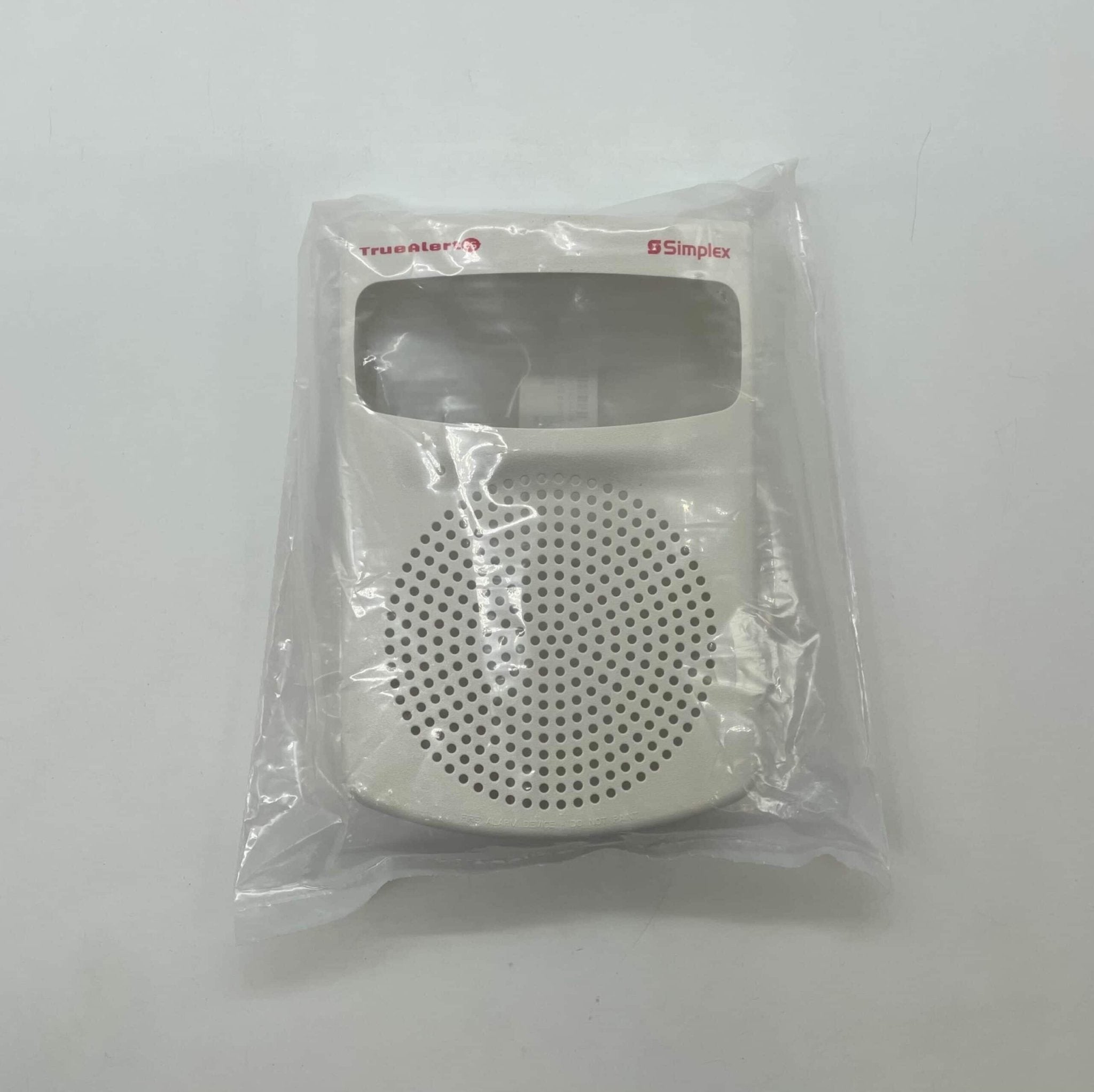

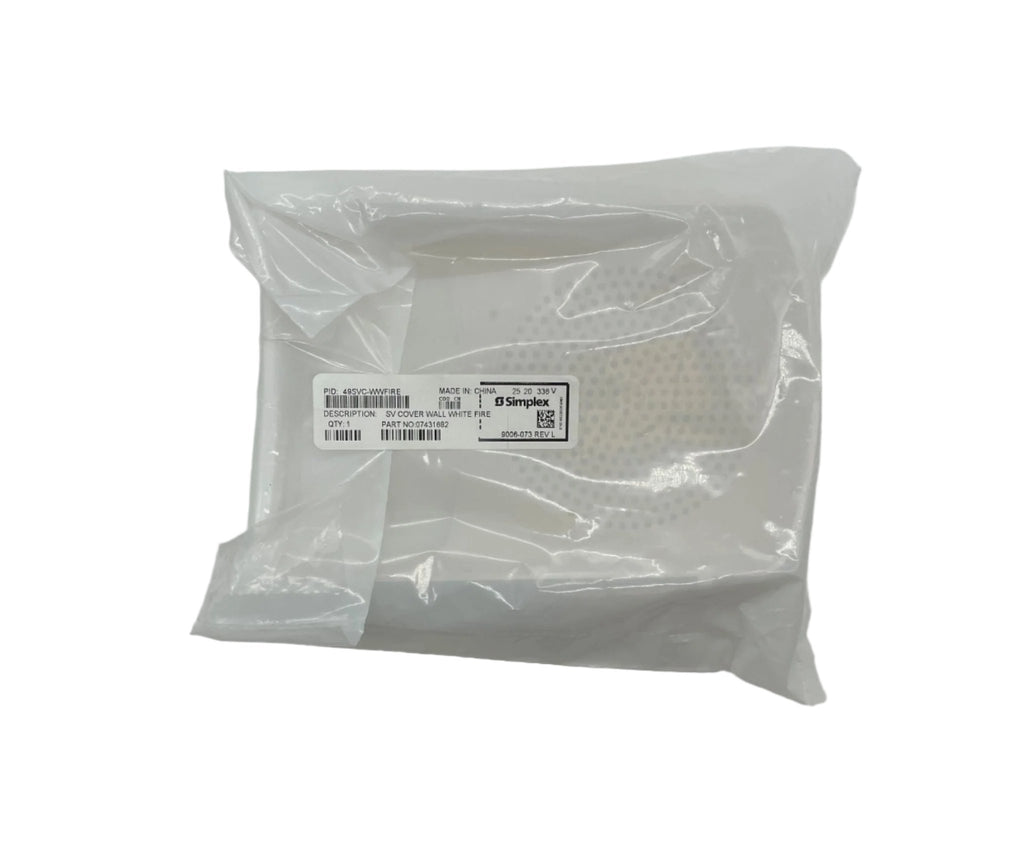

Simplex 49SVC-WWFIRE — TrueAlert ES appliance cover for wall mount addressable speaker visible units, white, lettered FIRE.
Simplex sells TrueAlert ES appliances and their covers separately, so mechanism, wording and color are chosen independently. Reading the catalog number: SV is speaker visible, C is cover, the first W is wall mount, the second W is white, FIRE is the lettering. It is a cover only, with no speaker, strobe or electronics.
- Required when ordering 49SV-APPLW or 49SV-APPLW-BA appliances
- NEMA 1, indoor
- Removes without disturbing the connected appliance housing
- Selected with a configured appliance order, to change wording or color on site, or as a replacement
- Appliances it completes offer 1/4, 1/2, 1 and 2 W taps at 25 or 70.7 VRMS
- Colored 49LENS lenses are a separate order
The dangerous neighbor is 49AVC-WWFIRE, identical in color and wording but fitting audible visible horn strobe appliances instead. Within this family, 49SVC-WRFIRE is red, 49SVC-WWALT reads ALERT, 49SVC-WWFEU reads FEU, 49SVC-WWS carries the logo alone, and 49SVC-WWFIRE-O is the NEMA 3R weatherproof version.
