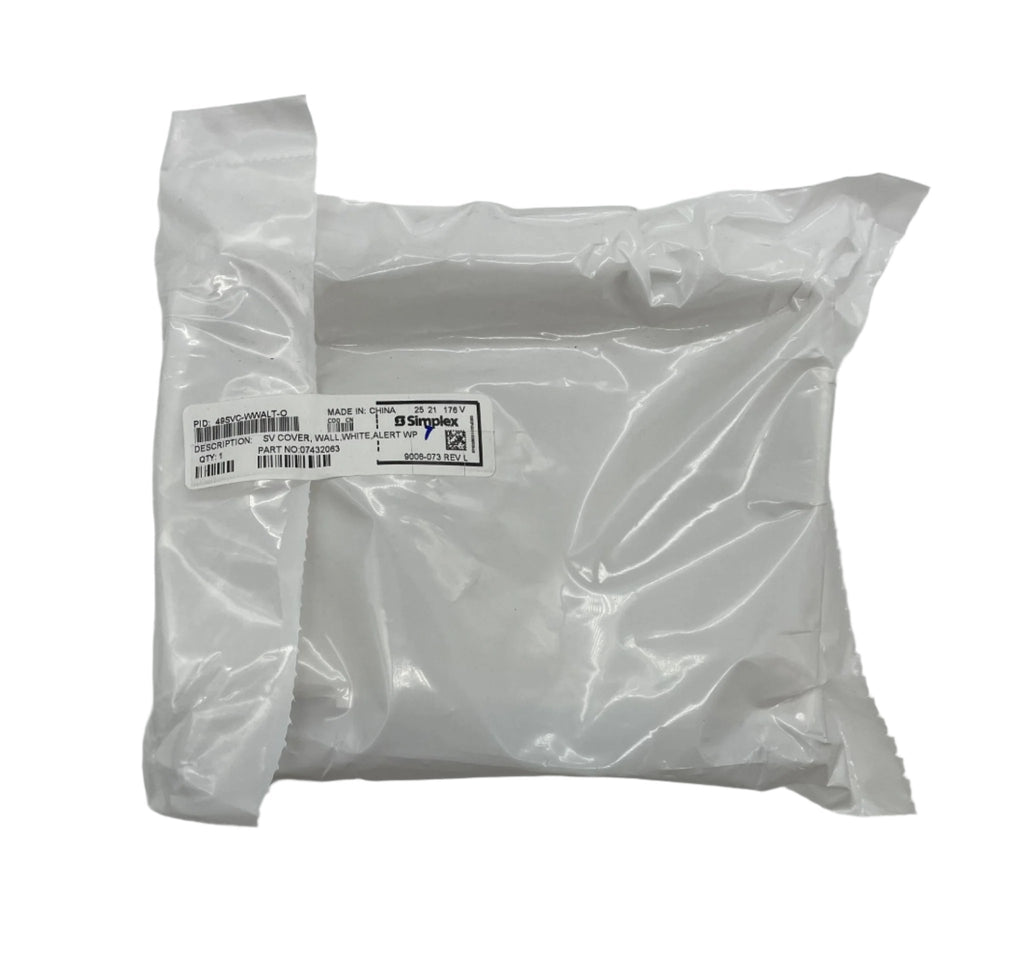

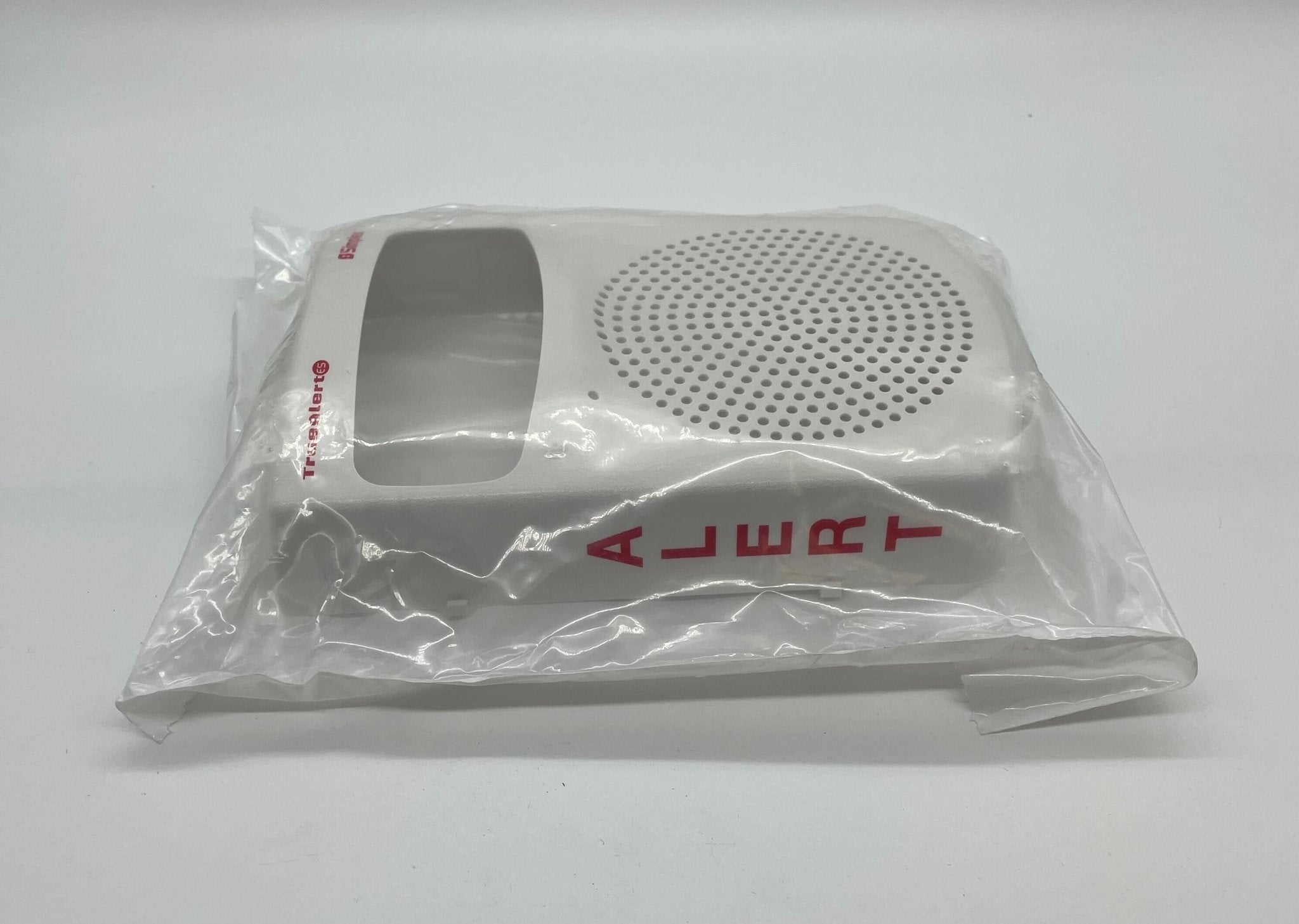

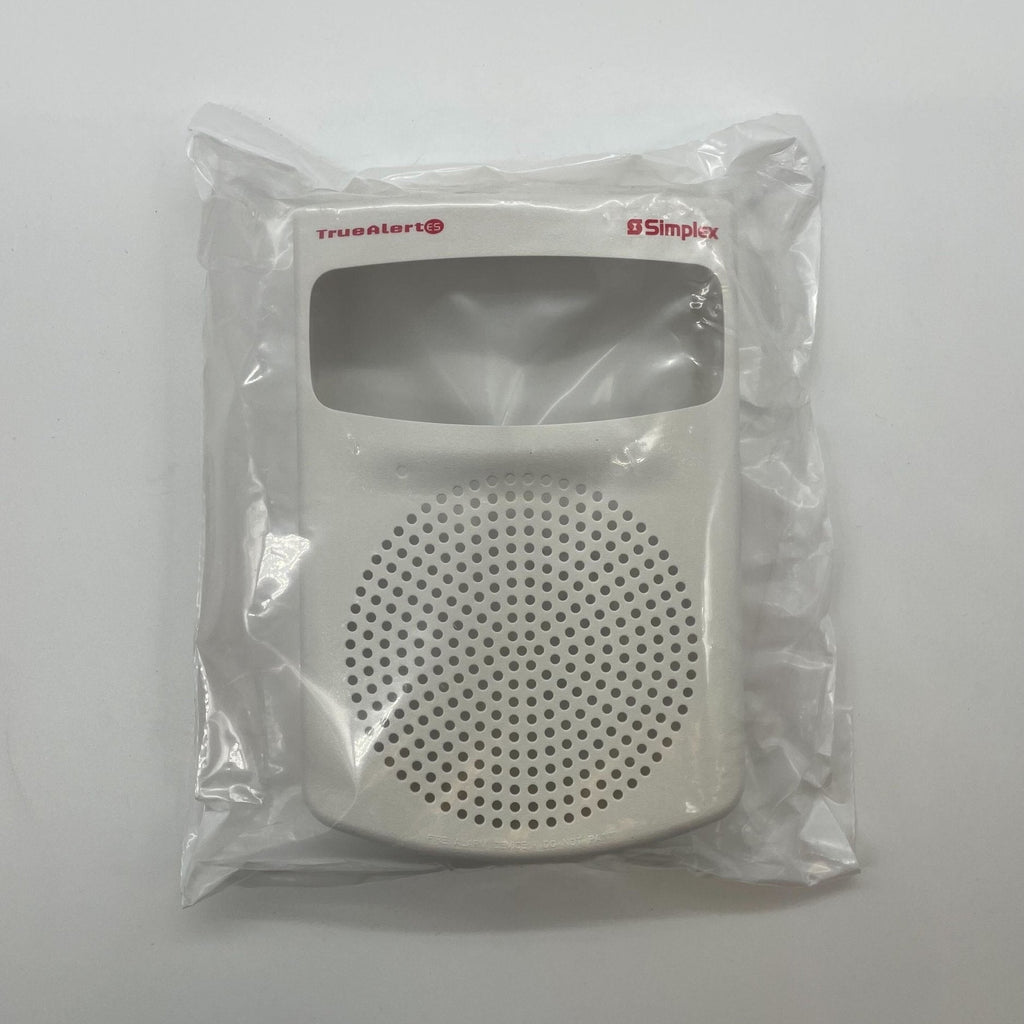

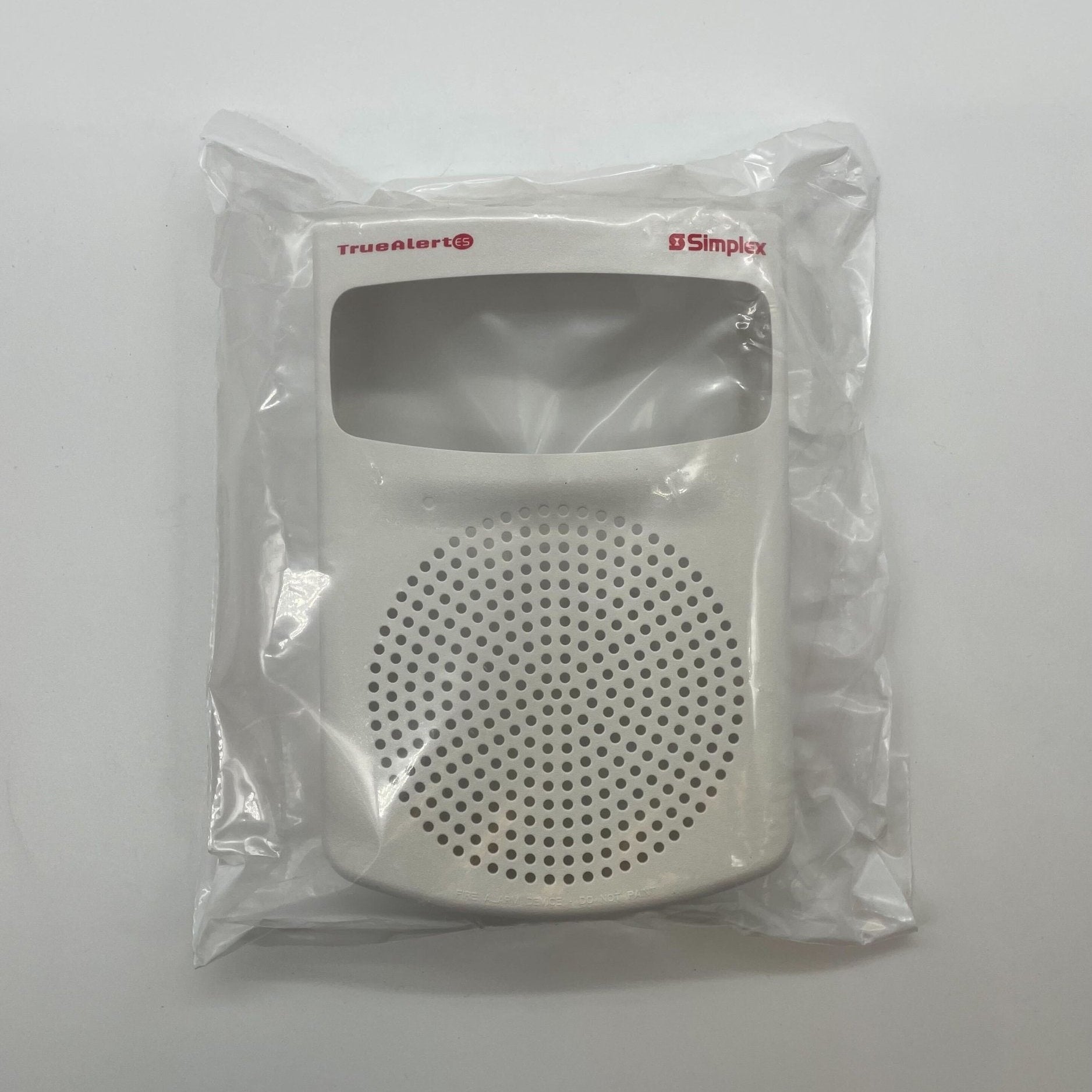

Simplex 49SVC-WWALT-O SV Cover, Wall,White,Alert Wp
Wall mount indoor and outdoor addressable speaker visible (S/V) notification appliances Use a Simplex fire alarm control unit (FACU) IDNAC signaling line circuit (SLC) to individually power, address, and control wall mount indoor and outdoor addressable S/V notification appliances. Use a separate compatible Simplex FACU audio NAC for audio. The electronic monitoring of wiring supervision means you can T-tap audio and IDNAC wiring for Class B wiring, reducing wiring costs and wiring distances. Install on standard 4 in. square 2 1/8 in. deep USA electrical boxes for flush installations, provided by others, or surface or weatherproof (WP) backboxes, see Table 15, for surface or WP installations . The appliances are available in 400 Hz to 4000 Hz and 200 Hz to 10000 Hz high-fidelity models. You can select appliance and covers separately for simple ordering and installation. Model numbers tha
Key Features
- Separate appliances, covers, back boxes, and wire guards for installation flexibility
- The TrueAlert device reports include important appliance information details, for example, point ID, custom label, type, and candela setting
- Rugged, high impact flame retardant thermoplastic housings
- You can remove the covers without disturbing the connected housing
- Terminals for wiring sizes 18 AWG to 12 AWG
- You can select the appliance LED to display during each polling cycle to indicate appliance supervision
- Magnet test diagnostics to assist checkout and testing of appliances
- Compatible with the Americans with Disabilities Act (ADA) requirements IDNAC Signalling Line Circuit (SLC)
- You can use the advanced addressable notification controlled by IDNAC SLCs to provide regulated 29 VDC for low current operation, even during battery backup conditions
- The wiring supervision is electronically monitored. This means you can T-tap IDNAC SLC wiring for Class B wiring for reduced wiring sizes, distances, and costs
