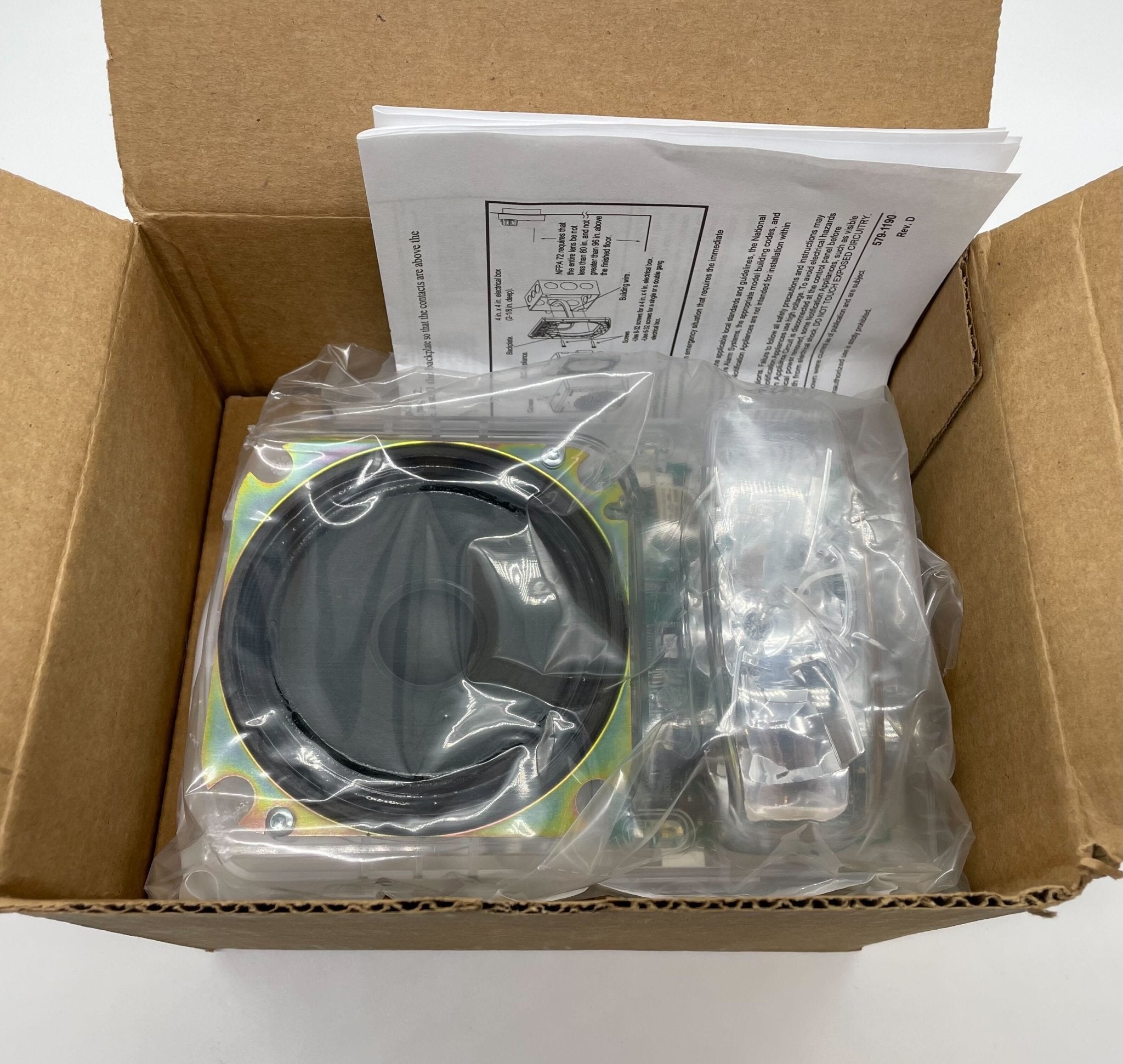

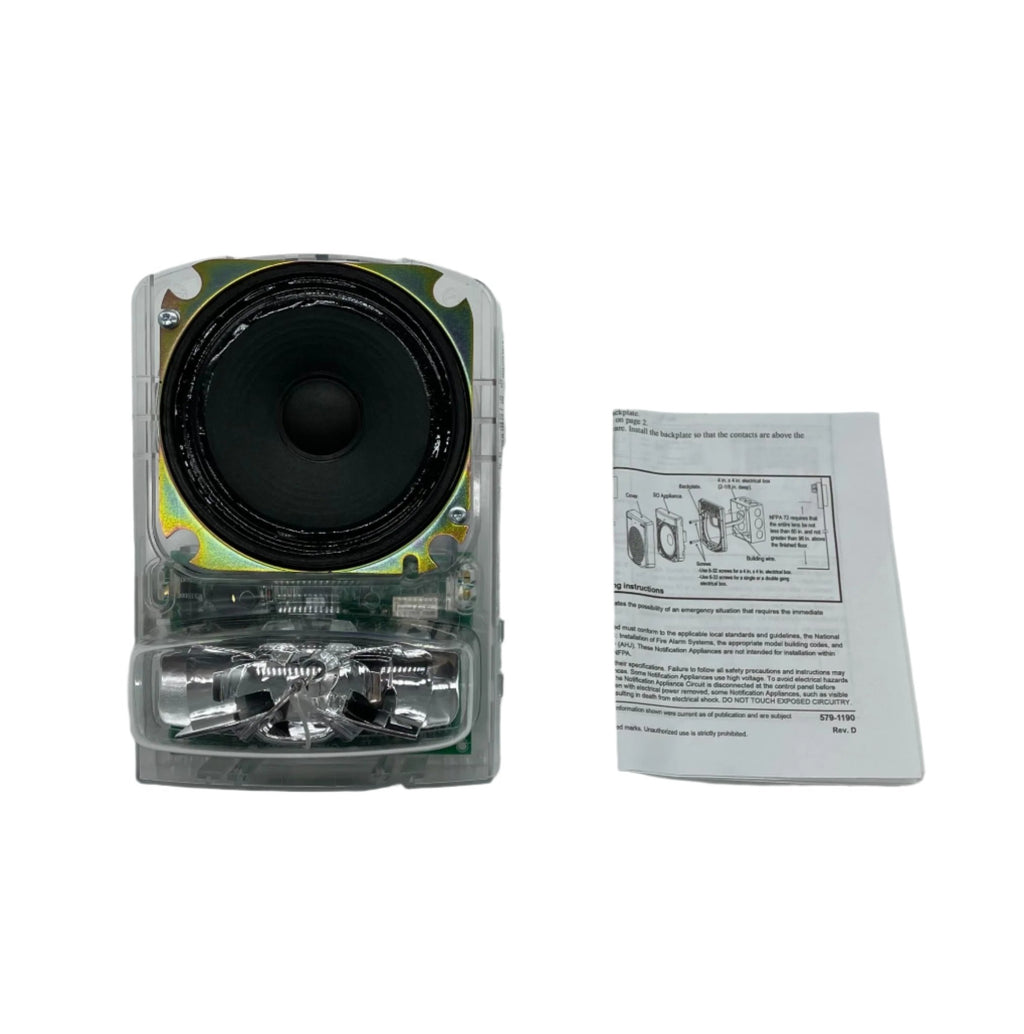

Simplex 49SV-APPLW is a TrueAlert ES addressable speaker/strobe for wall mounting, supplied as the electronics only. A multi-tapped speaker carries voice or tone signals, and the strobe can be set anywhere from 15 to 185 cd.
The strobe is individually addressed on an IDNAC signaling line circuit. The mounting plate and cover are not included; the mounting plate is a 49MP-SVWx model, and both parts are ordered separately.
Features
- Addressed individually on an IDNAC signaling line circuit
- Strobe intensity selectable from 15 to 185 cd
- Strobe flash synchronized at 1 Hz
- Audio wiring can be T-tapped for Class B
- Speaker taps of 1/4, 1/2, 1 and 2 W
- Mounting plate (49MP-SVWx) and cover ordered separately
Specifications
| Operating voltage |
23 to 30 VDC (Special Application) |
| Supervision |
1 unit load (0.8 mA panel current) |
| Circuit |
Simplex IDNAC SLC |
| Speaker input |
25 or 70.7 Vrms |
| Power taps |
1/4, 1/2, 1, 2 W |
| Mounting |
Wall |
Specifications taken from the manufacturer data sheet S49SVW-0001, TrueAlert ES Wall Mount Speaker/Strobes.
Documents
FAQ
Are the cover and mounting plate included?
No. The 49SV-APPLW is the appliance only. Select a 49SVC- series cover and a 49MP-SVWR (red) or 49MP-SVWW (white) mounting back plate separately.
Which panels and circuits does it work with?
It is powered, addressed and controlled from a Simplex IDNAC signaling line circuit, such as the 4100ES with EPS or EPS+ power supply or a 4009 IDNAC repeater. An IDNAC SLC supports up to 127 addresses.
What candela settings and current draw does it have?
The strobe is selectable from 15 to 185 cd and flashes at a synchronized 1 Hz. With a clear lens it draws 47 mA at 15 cd up to 208 mA at 185 cd, measured at 23 VDC.
What speaker taps are available?
1/4, 1/2, 1 and 2 W taps at 25 or 70.7 Vrms input, with a 400 to 4000 Hz frequency response.
