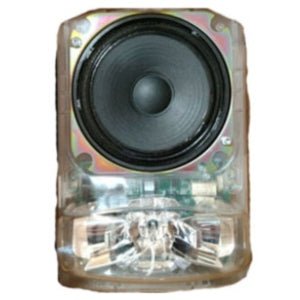

Simplex 49SV-APPLW-O — weatherproof NEMA 3R wall mount TrueAlert ES addressable speaker visible (S/V) notification appliance, supplied as the appliance only.
The trailing O is the outdoor marker, not a color or lettering code. Simplex lists it in the weatherproof NEMA 3R table as "S/V appliance only. Select cover, mounting plate and surface or WP back box separately", so the buyer gets housing and electronics with no cover and no box.
- Individually addressed from an IDNAC SLC, 23 to 30 VDC, 1 unit load, 127 per SLC
- 15 and 75 cd public mode settings, plus WP15, WP75, WP110 and WP185 outdoor private mode settings
- Maximum RMS current at 23 V: 47 and 100 mA at 15 and 75 cd; 81, 187, 230 and 298 mA at the WP settings
- Audio on a separate Simplex audio NAC: taps 1/4, 1/2, 1 and 2 W at 25 or 70.7 VRMS
- Outdoor private -40 to 150.8 °F; indoor and uncontrolled wet public mode 32 to 122 °F
Order an outdoor cover such as 49SVC-WRFIRE-O and a 49WPBB-SVWR or 49WPBB-SVWW back box; indoor covers lacking the O suffix are a separate list. 49SV-APPLW is the indoor model and 49SO-APPLW-O the weatherproof speaker with no strobe.
Documents
FAQ
Does it include a cover and back box?
No. Simplex lists the 49SV-APPLW-O as the S/V appliance only; the cover, mounting plate and surface or weatherproof back box are selected separately. Outdoor covers carry the -O suffix, such as 49SVC-WRFIRE-O.
How is it powered and controlled?
It is individually powered, addressed and controlled from a Simplex IDNAC signaling line circuit, using 1 unit load. Audio comes from a separate compatible Simplex audio NAC.
How many can go on one IDNAC SLC?
Up to 127 addresses per SLC (139 unit loads), subject to the control unit current limits.
What speaker taps are available?
1/4, 1/2, 1 and 2 W at 25 VRMS or 70.7 VRMS.
