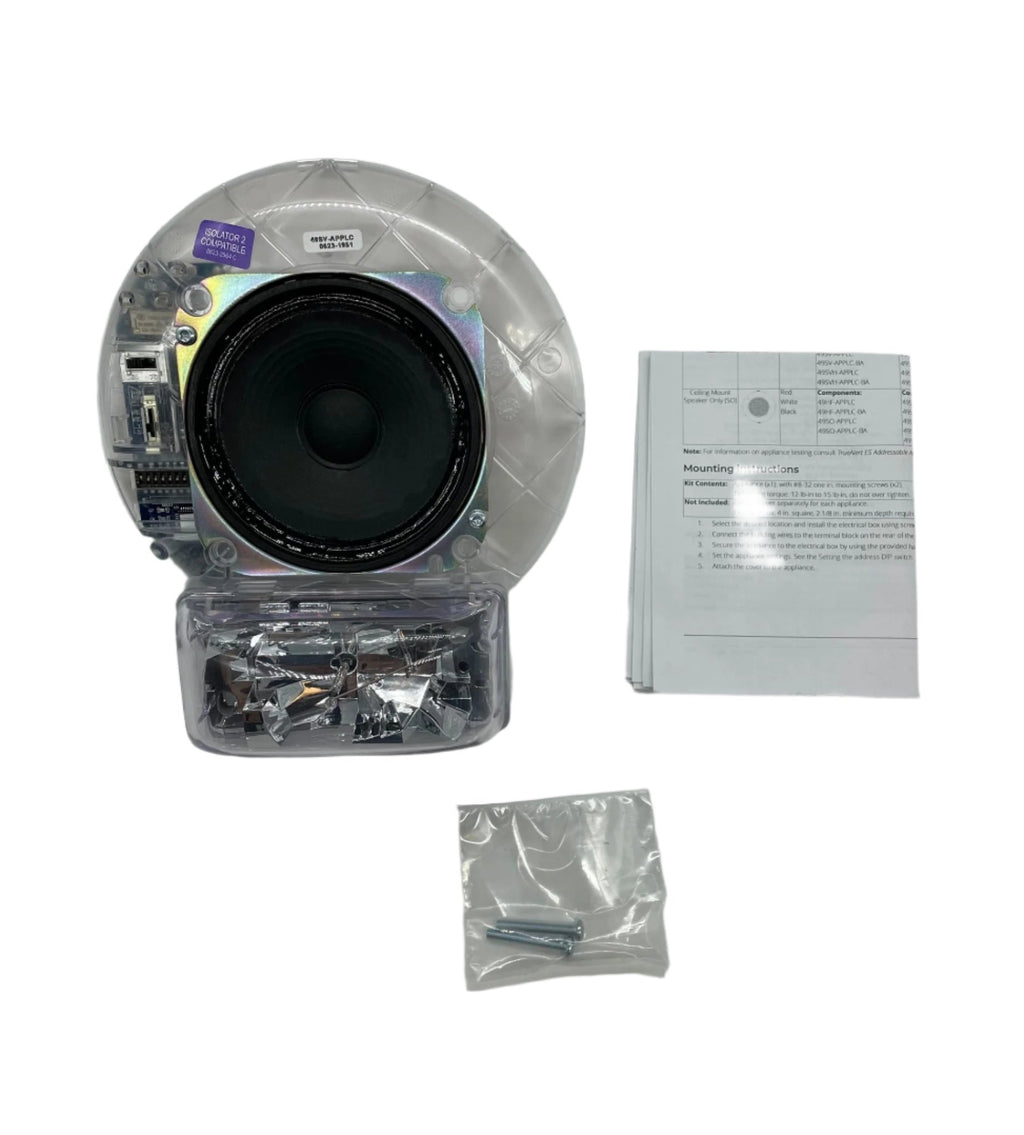

Simplex 49SV-APPLC — a TrueAlert ES ceiling-mount addressable speaker/visible (S/V) notification appliance, combining a multi-tapped speaker with a multi-candela strobe that flashes at a synchronized 1 Hz rate.
The appliance is individually powered, addressed, and controlled from a Simplex fire alarm control panel IDNAC signaling line circuit, while audio is carried on a separate compatible Simplex audio circuit. Because wiring supervision is electronically monitored, audio wiring may be T-tapped for Class B, which reduces wiring cost and distance. The 49SV-APPLC ships as the appliance only — a cover from the 49SVC-C series must be ordered separately, which is what lets one appliance serve red or white housings and ALERT, FIRE, FEU, FEU/FIRE, bilingual, or Simplex-logo lettering without stocking a different appliance for each.
Specifications
| Appliance type |
Ceiling-mount addressable speaker/visible (S/V), TrueAlert ES |
| Dimensions with cover |
8 1/8 in. H x 7 1/8 in. W x 3 in. D (206 mm x 180 mm x 76 mm) |
| Candela settings |
15, 30, 75, and 110 cd |
| Strobe current (23 VDC on IDNAC SLC) |
15 cd: 59 mA; 30 cd: 82 mA; 75 cd: 145 mA; 110 cd: 193 mA |
| Operating voltage range |
23 VDC to 30 VDC, special application |
| Appliance voltage design reference |
23 VDC (with 6 VDC drop) from a 29 VDC regulated IDNAC SLC output |
| Supervisory requirement |
1 unit load (= 0.8 mA control panel current) |
| Flash rate and SLC loading |
1 Hz; up to 63 synchronized strobes per powered circuit, max 127 S/V appliances per IDNAC channel |
| IDNAC SLC loading |
Maximum 127 addresses per SLC, 139 unit loads |
| Speaker input voltage |
25 or 70.7 Vrms |
| Speaker power taps |
1/4, 1/2, 1, and 2 W |
| Frequency response |
400 to 4000 Hz (S/V); general signaling 125 Hz to 12 kHz |
| Speaker output, UL 1480 reverberant at 10 ft (3 m) |
1/4 W: 79 dBA; 1/2 W: 83 dBA; 1 W: 86 dBA; 2 W: 89 dBA |
| Speaker output, ULC-S541 anechoic at 10 ft (3 m) |
1/4 W: 79 dBA; 1/2 W: 83 dBA; 1 W: 86 dBA; 2 W: 89 dBA |
| Polar dispersion (ULC-S541 anechoic) |
-3 dB at 70°; -6 dB at 80° |
| Light output at room temperature |
UL required 100% on-axis, 45% at 45°, 25% at 90°; typical 327% on-axis |
| Environmental |
32° to 120°F (0° to 49°C); 10% to 93% RH, non-condensing at 104°F (40°C) |
| Connections |
Terminal blocks for 18 AWG to 12 AWG (0.82 mm2 to 3.31 mm2); two wires per terminal for in/out wiring |
| Installation instructions |
579-1203 |
| Listings |
UL, ULC Listed; FM Approved |
Installation notes
-
Cover sold separately: the APPLC part number is the appliance only. A 49SVC-C series cover is required to complete the assembly, and the cover determines housing color and lettering.
-
Two circuits, not one: the strobe is powered, addressed, and controlled from the IDNAC SLC, but the speaker must be wired to a separate compatible Simplex audio circuit. This is not a two-wire appliance.
-
Use unshielded twisted pair: the data sheet specifies UTP for both IDNAC and audio wiring.
-
T-tap only on Class B: electronic wiring supervision permits T-tapped audio wiring for Class B circuits; this is what keeps wiring distances down.
-
ULC 85 dBA applications: under ULC the 1 W and 2 W taps are the ones that meet the 85 dBA minimum — the 1/4 W and 1/2 W taps do not.
-
Synchronization limit: up to 63 synchronized strobes per powered circuit, which is a tighter constraint than the 127-address SLC limit.
Related models
-
49SV-APPLC-BA — the same ceiling S/V appliance, assembled in the USA.
-
49HFV-APPLC — high fidelity ceiling version, 200 to 10,000 Hz frequency response instead of 400 to 4000 Hz.
-
49SVH-APPLC — high candela ceiling appliance covering 110, 135, and 185 cd (235, 255, and 295 mA) rather than 15 to 110 cd.
-
49HFVH-APPLC — high fidelity and high candela combined; also offered with amber (49HFVH-APLCA-BA) or blue (49HFVH-APLCB-BA) lenses.
-
49SV-APPLW — the wall-mount addressable S/V appliance, covered by a separate data sheet (S49SVW-0001) with different dimensions and current draw.
Specifications taken from the Simplex data sheet "Ceiling Mount Addressable Speaker Visible (S/V) Notification Appliances," document S49SVC-0001-2 (11/2016). Manufacturer specifications are subject to change without notice.
