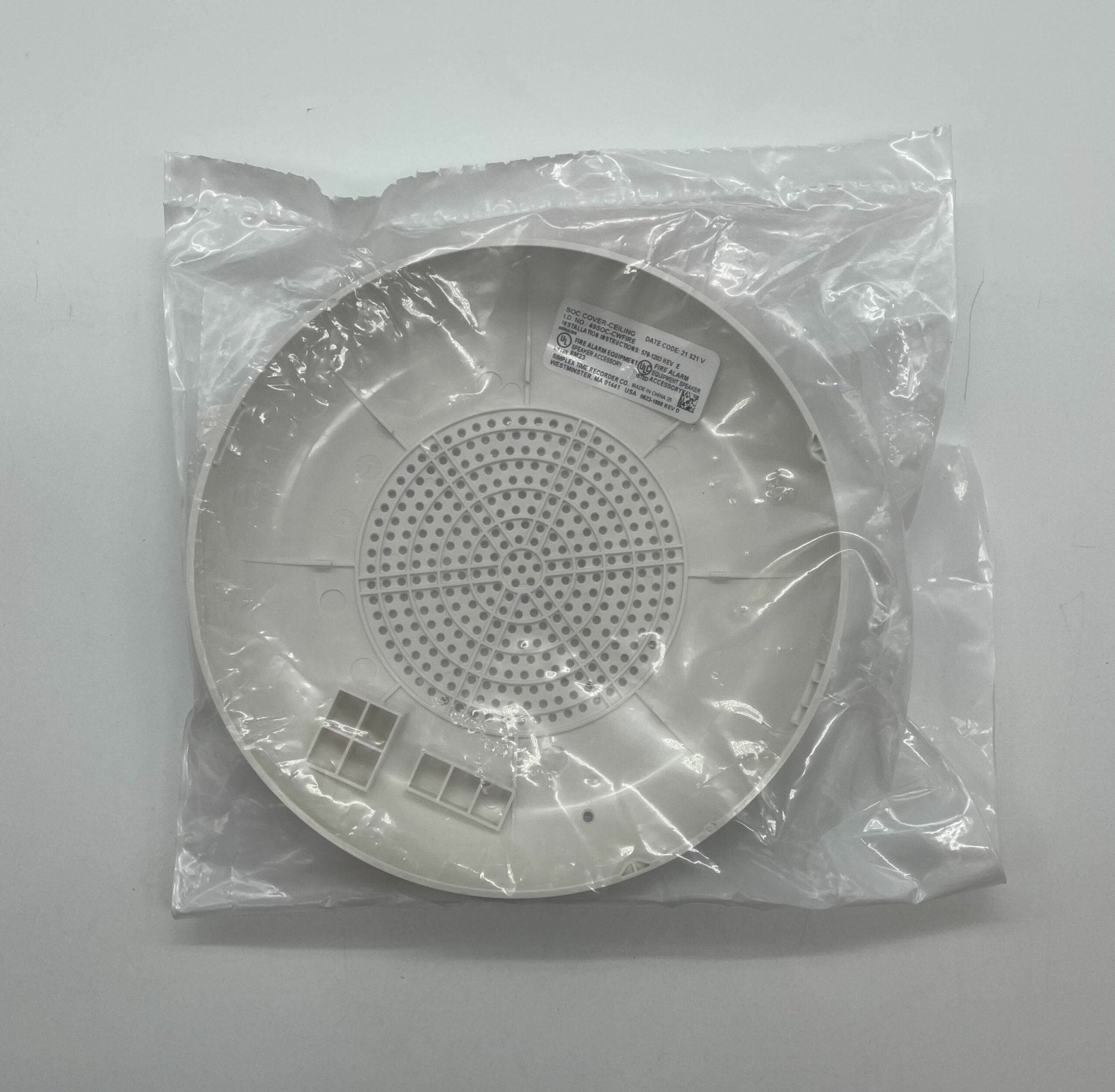

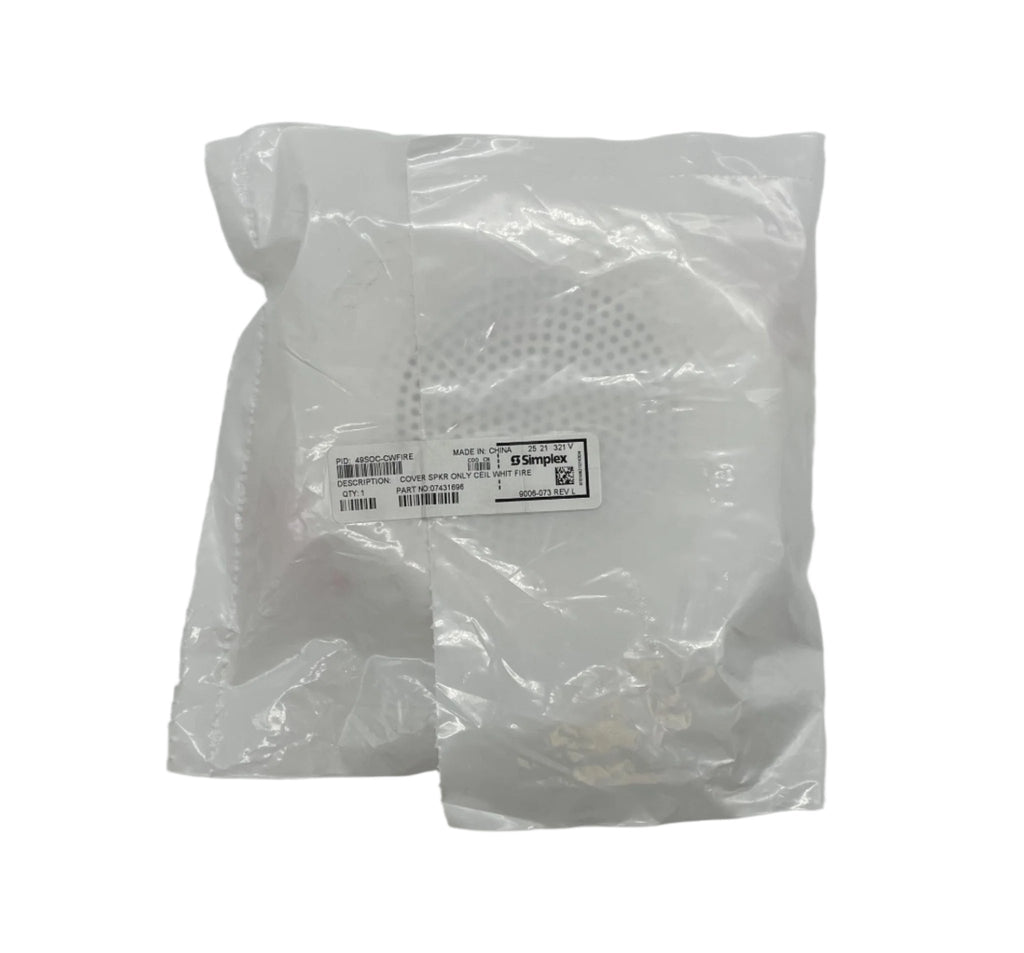

Simplex 49SOC-CWFIRE Cover Speaker Only Ceiling White Fire
Ceiling mount Addressable Speaker (SO) notification appliances To power, address, and control ceiling mount SO notification appliances, use the Simplex Fire Alarm Control Unit (FACU) IDNAC Signaling Line Circuit (SLC). A separate compatible Simplex FACU audio NAC supplies audio. Electronic monitoring of wiring supervision means you can T-tap audio and IDNAC wiring for Class B wiring, which reduces wiring costs and wiring distances. Install ceiling mount SO notification appliances on a standard 4 in. or 101.6 mm square 2 1/8 in. or 53.97 mm deep electrical box, provided by others, for flush installations. Install on a surface or weatherproof backbox, see Table 6, for surface or weatherproof (WP) installations. Appliances are available in 400 Hz to 4000 Hz and 200 Hz to 10000 Hz high fidelity models. Select the appliance and cover separately to simplify the ordering and installation proces
Key Features
- Separate appliances, covers, back boxes, and wire guards provide complete flexibility for meeting customers installation requirements
- The TrueAlert device reports provide important appliance information details including point ID, custom label, type, and candela setting
- Rugged, high impact flame retardant thermoplastic housings
- The covers can be easily removed without disturbing the connected housing
- Terminals for wiring sizes 18 AWG to 12 AWG
- The appliance LED can be selected to display during each polling cycle indicating appliance supervision
- Magnet test diagnostics to assist checkout and testing of appliances
- Compatible with the Americans with Disabilities Act (ADA) requirements IDNAC Signalling Line Circuit (SLC)
- The advanced addressable notification controlled by IDNAC SLCs provides regulated 29 VDC for low current operation even during battery backup conditions
- The wiring supervision is electronically monitored and allows IDNAC SLC wiring to be T-tapped for Class B wiring, which provides flexibility in reducing wiring sizes and or distance, and which reduces costs for wiring installation
