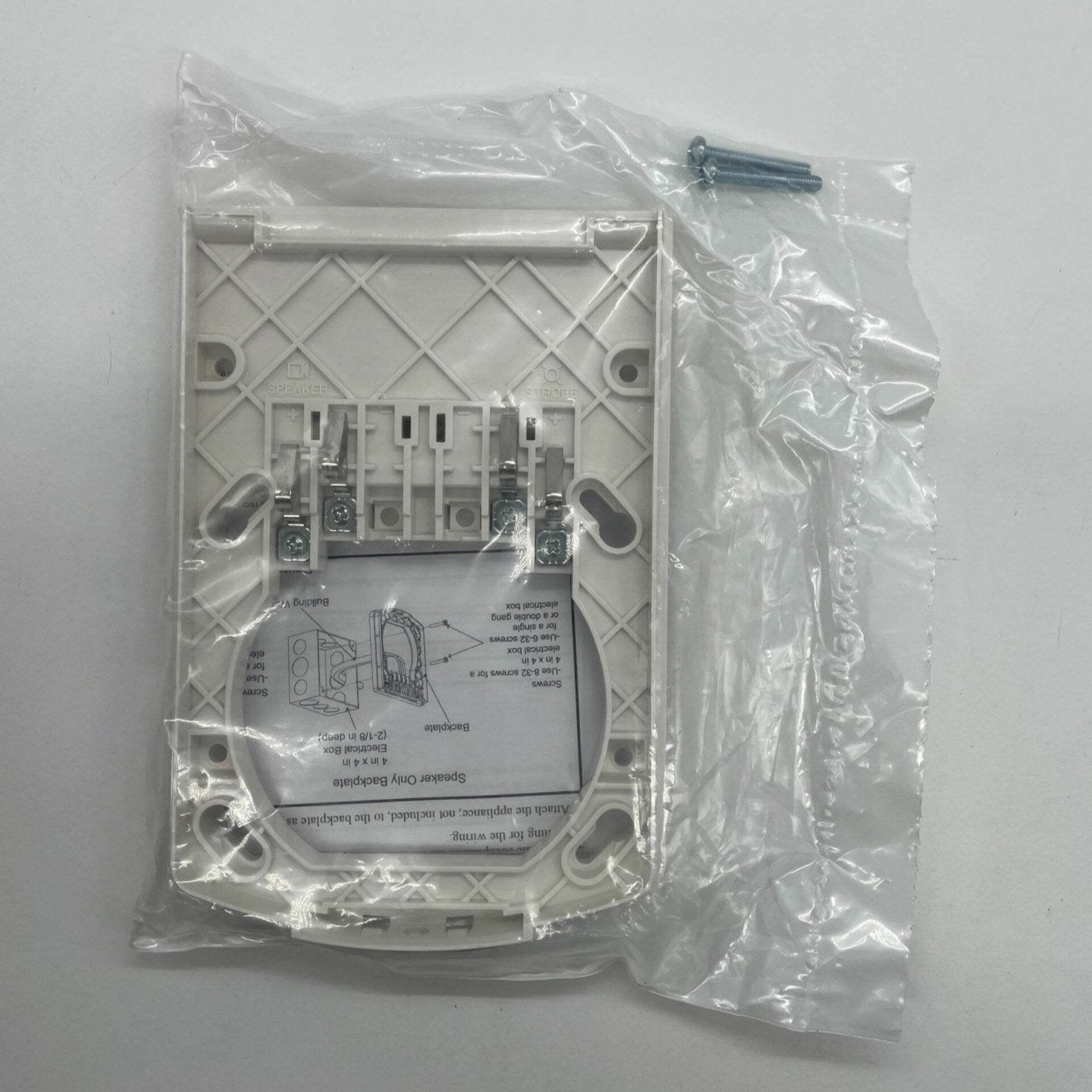

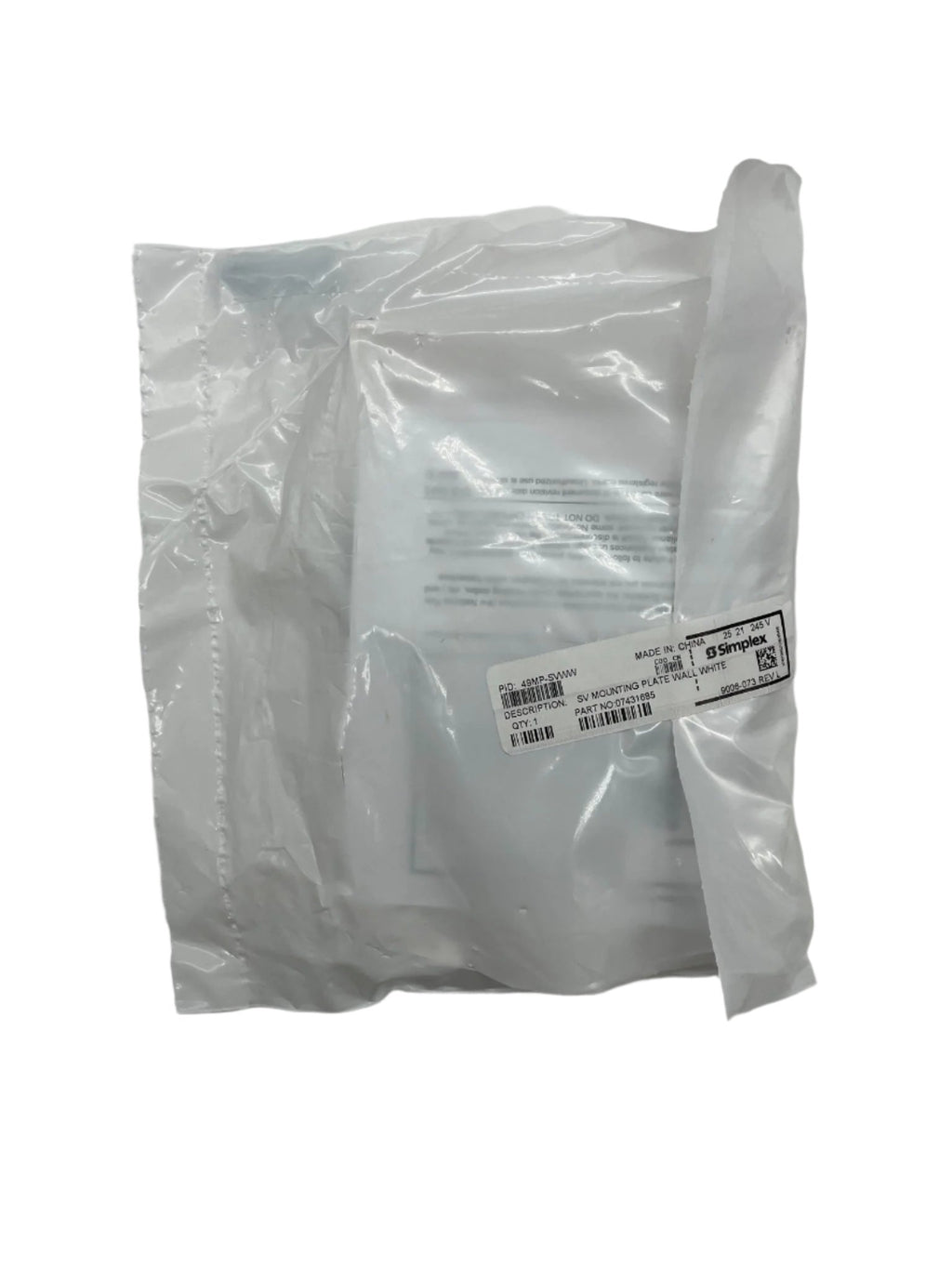

Simplex 49MP-SVWW — white wall mount back plate for TrueAlert ES addressable speaker visible (S/V) notification appliances.
On TrueAlert ES the back plate is where the job is actually wired. Building wire lands on the plate terminals, so the circuit can be dressed, terminated and torqued before any appliance is fitted; the appliance then clips on and unclips for service without disturbing field wiring. Appliances are sold without the plate, so one is needed for each S/V appliance on the order.
- Serves wall S/V appliances 49SV-APPLW and 49HFV-APPLW, including the -BA versions
- Ordered separately, one per appliance, with mounting screws included
- Electrical box: 4 in. square, 2-1/8 in. minimum depth
- Building wiring lands on the CKT + and CKT – terminals; two wires per terminal, 12 AWG to 18 AWG twisted pair, tightened to 12–15 in-lb
- Installation instructions 579-1193
Watch the suffix: 49MP-SVWR is the same plate in red, 49MP-SOWW and 49MP-SOWR belong to the speaker-only appliances, and 49MP-AVVOWW / 49MP-AVVOWR serve the horn/strobe and visible-only strobe ranges — which is what AV plus VO encodes in that number.
Documents
FAQ
Which appliances use the 49MP-SVWW?
Simplex TrueAlert ES wall mount addressable speaker visible (S/V) appliances, such as the 49SV-APPLW and 49HFV-APPLW.
Is the plate included with the appliance?
No. The back plate is ordered separately, one per appliance.
Is there a red version?
Yes. The 49MP-SVWR is the red mounting back plate.
What are the installation instructions?
Simplex lists installation instructions 579-1193 for the S/V wall mount back plates.
