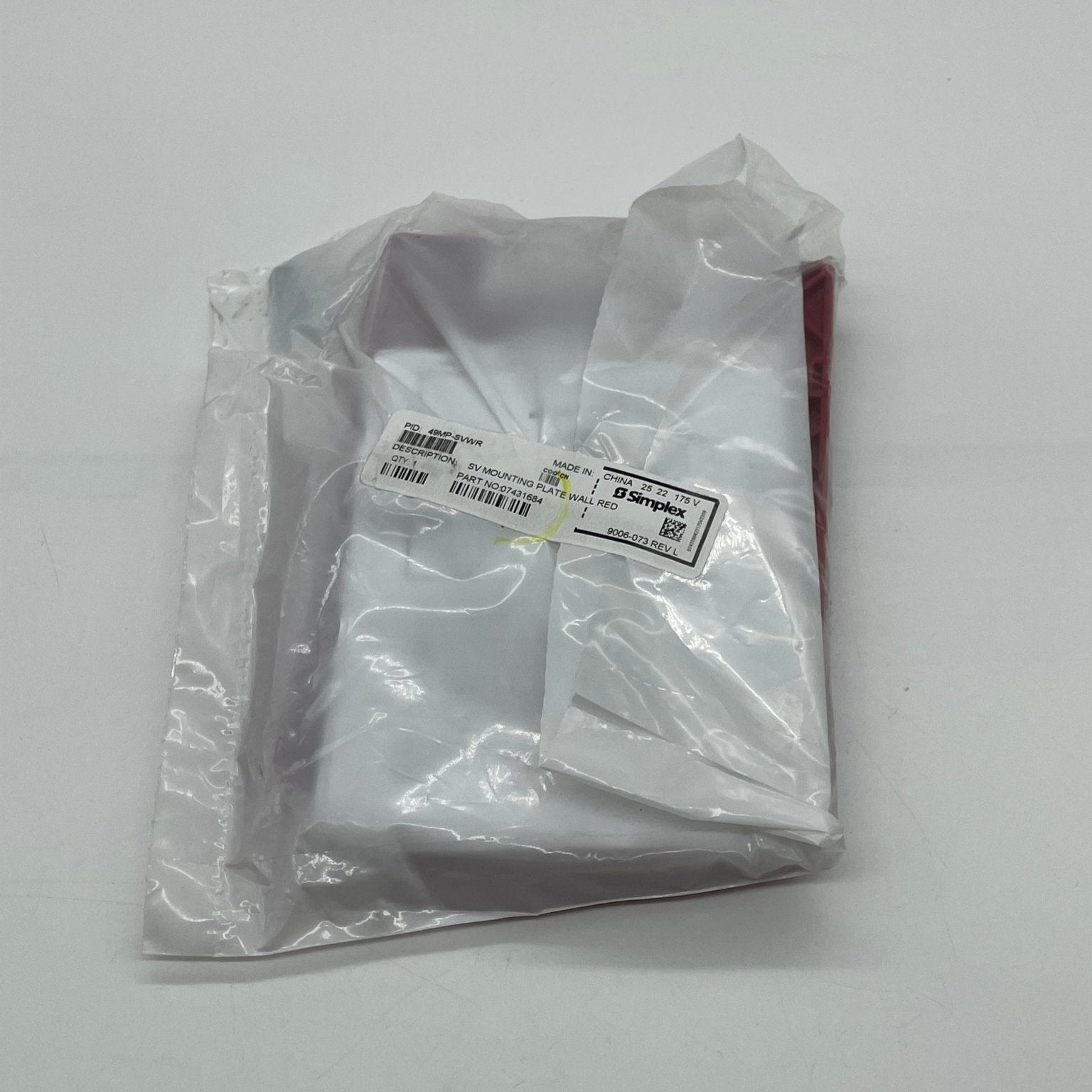

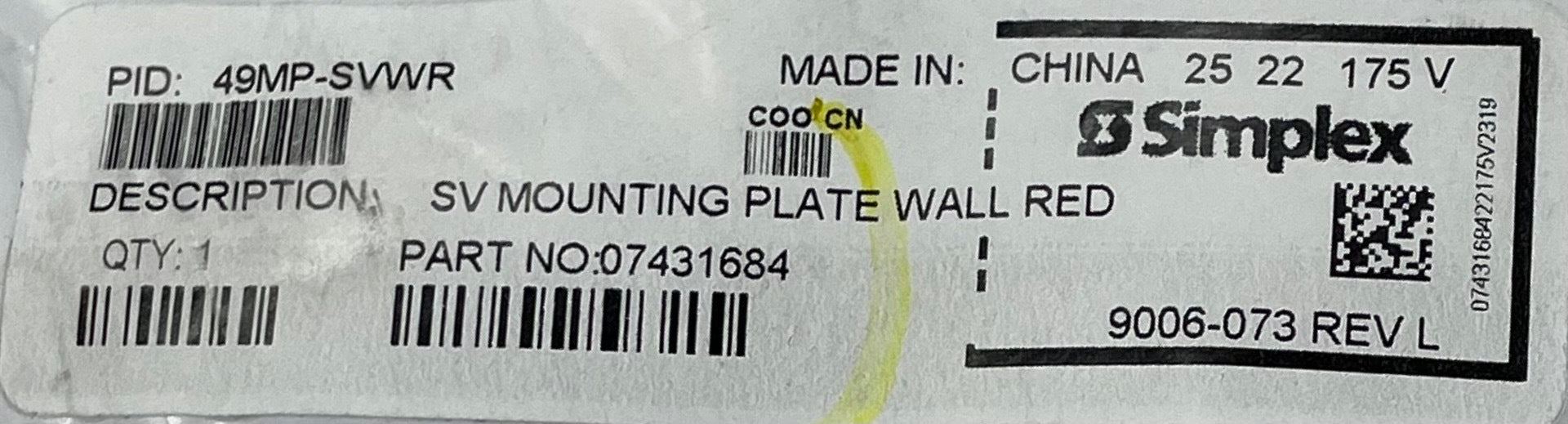

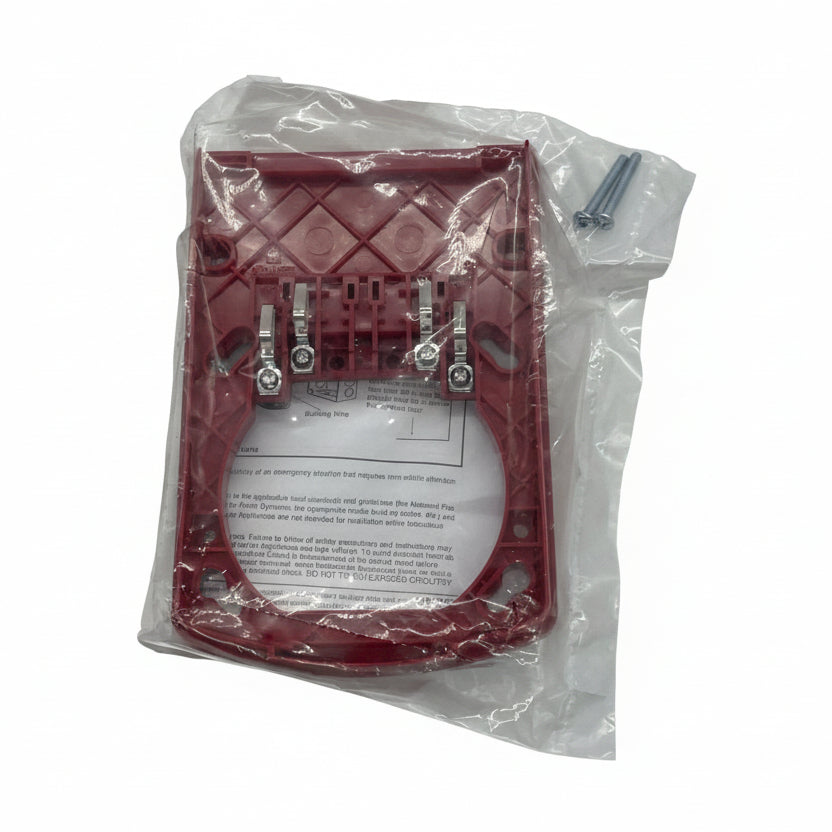

Simplex 49MP-SVWR — red wall mounting back plate for TrueAlert ES addressable speaker visible notification appliances.
TrueAlert ES wall appliances are ordered as separate pieces so housing, wording and mounting can be chosen independently: appliance, lettered cover, back plate, and where needed a surface or weatherproof box. This is the back plate, in red. In the model code SV is speaker visible, W is wall and R is the finish.
- Simplex catalogue description: mounting back plate in red
- For the 49SV-APPLW and 49SV-APPLW-BA speaker visible appliances
- Also selected with the high fidelity 49HFV-APPLW and 49HFV-APPLW-BA
- Flush-mounts on standard 4 in square, 2 1/8 in deep boxes, or on surface and weatherproof back boxes
- Ordered separately from the appliance and the cover
- Covered by Simplex installation instructions 579-1193
The white equivalent is the 49MP-SVWW. Buyers regularly order the 49WPBB-SVWR by mistake: that is the red surface or weatherproof back box, as is the 49WGBB-SVWR-O wire guard back box. This plate belongs to the speaker visible line, not audible visible hardware.
