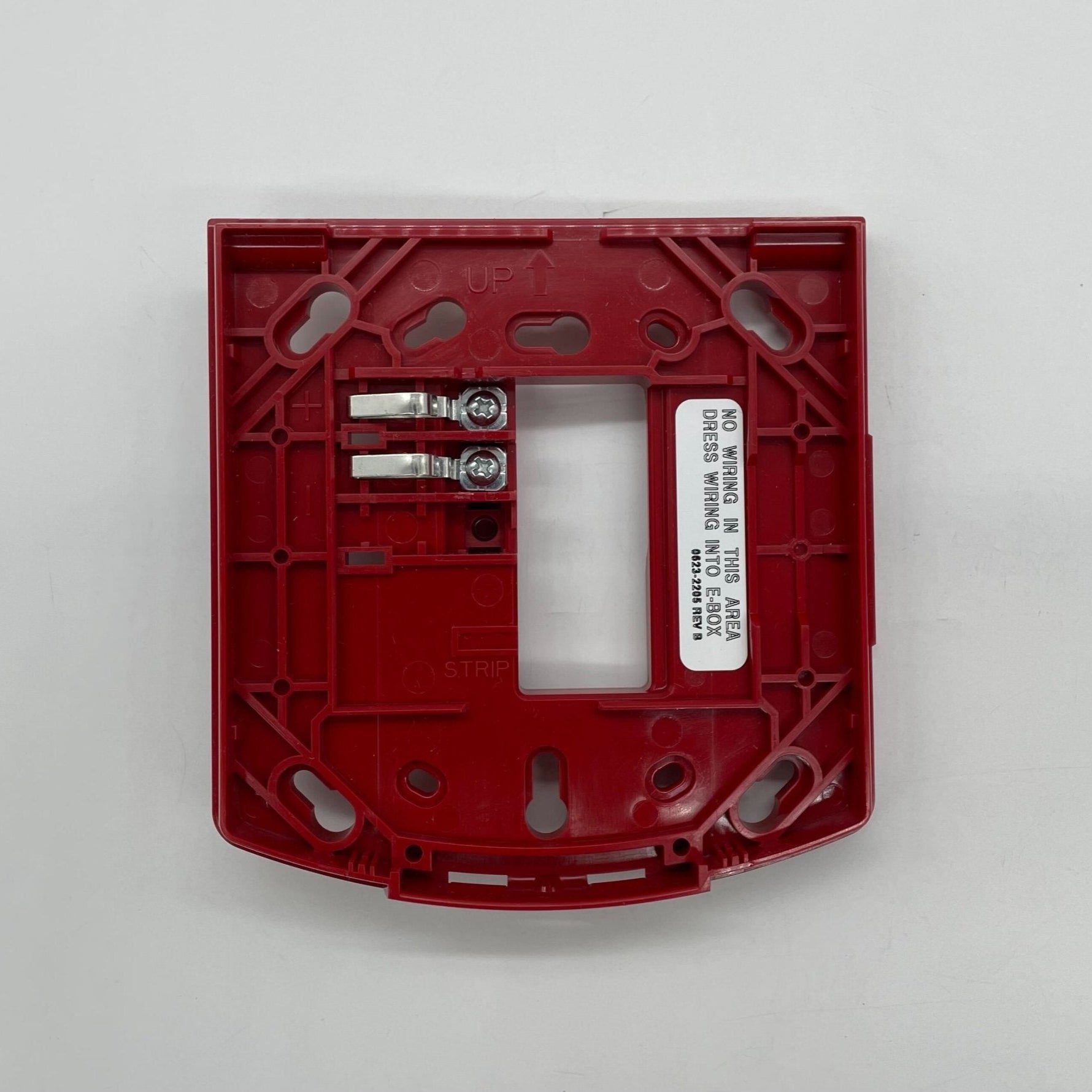

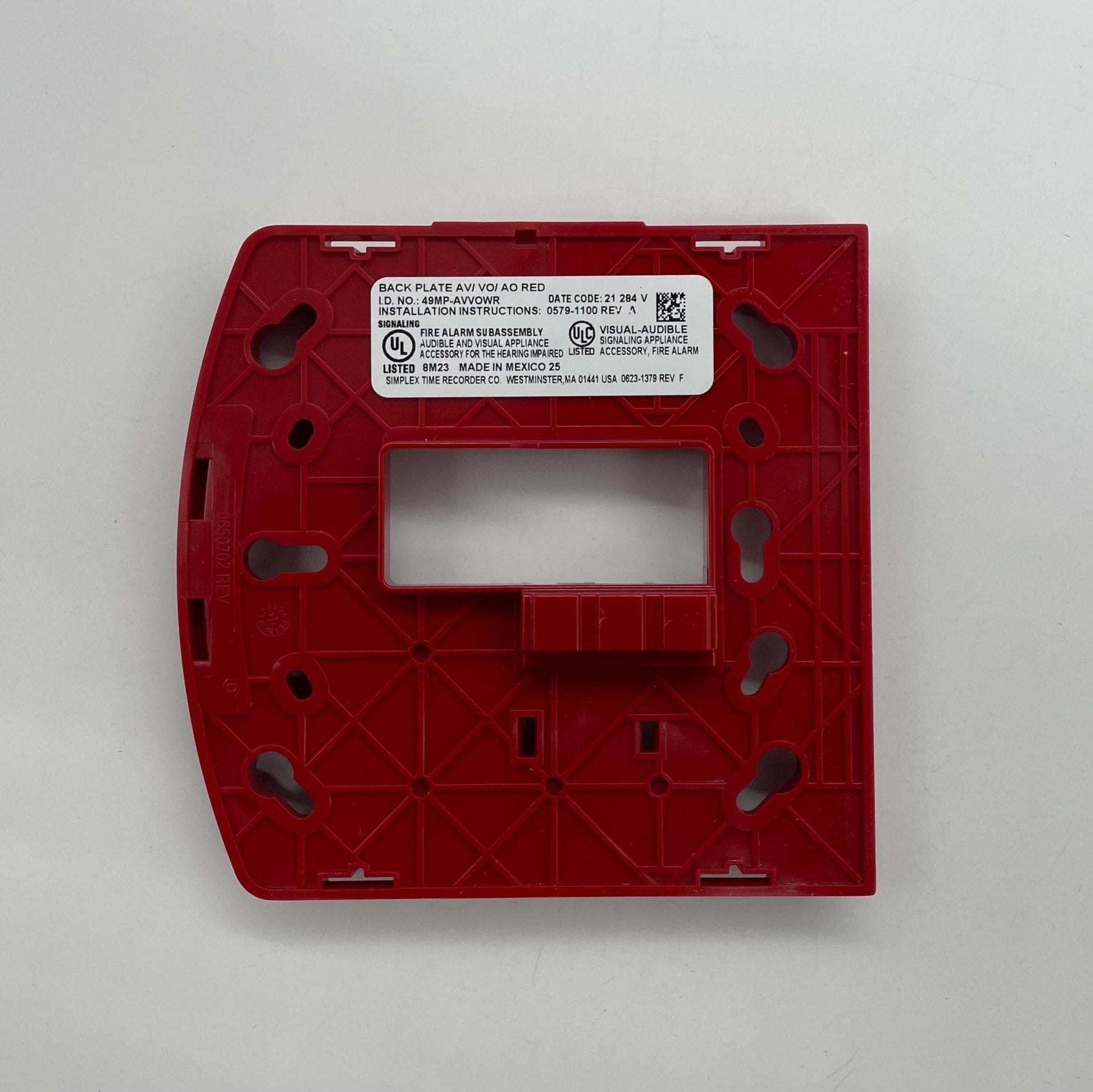

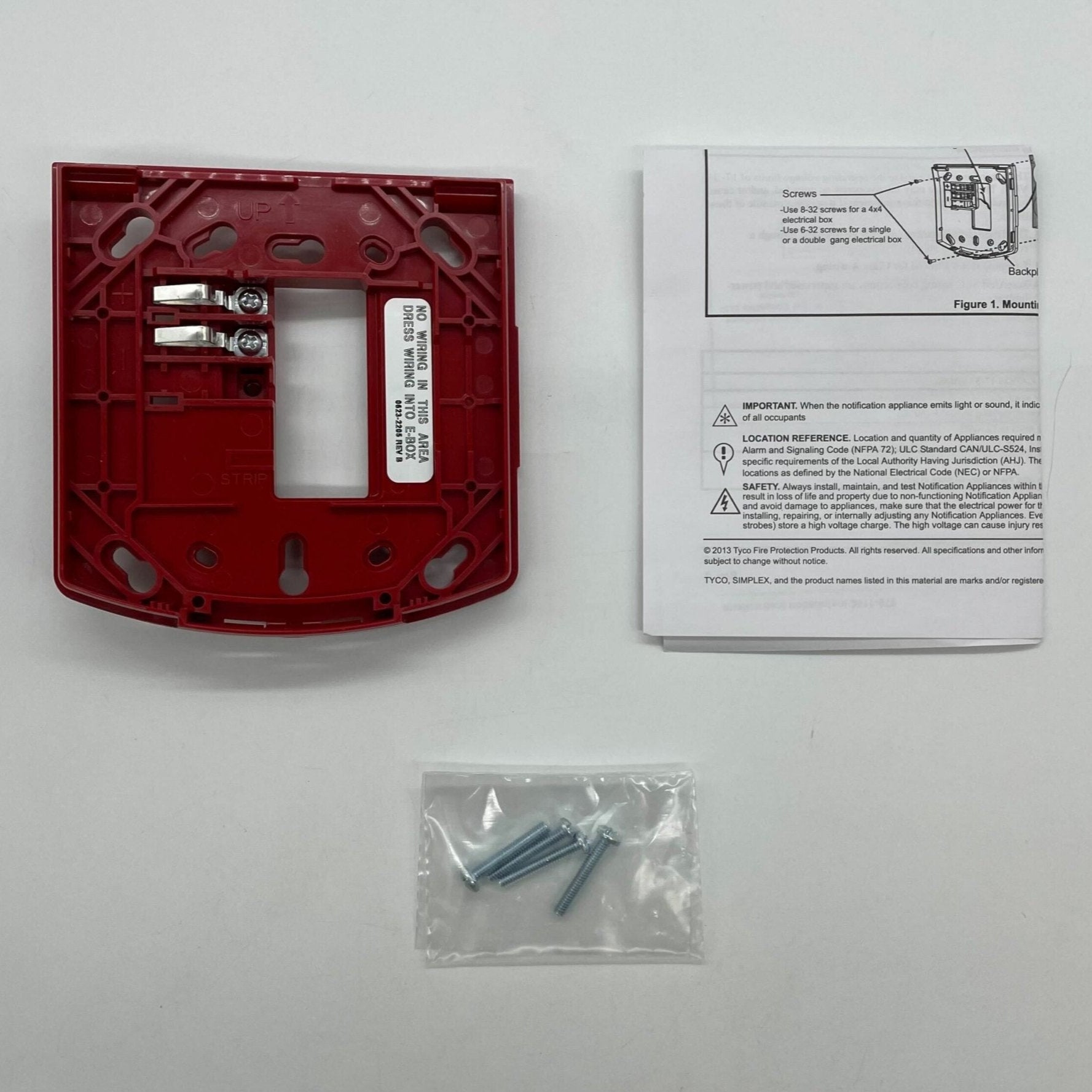

Simplex 49MP-AVVOWR — red mounting plate for TrueAlert ES wall-mount notification appliances.
The plate is the wiring half of the appliance: its terminal blocks take the IDNAC circuit so the run can be landed and dressed before any cover goes on, and the appliance body then attaches to the plate. It is ordered on its own because the APPLW versions of the wall horn/strobe and wall strobe ship bare, with cover and plate chosen separately to suit the lettering and colour the job calls for.
- Red; 49MP-AVVOWW is the same plate in white.
- Required when ordering 49AV-APPLW or 49AV-APPLW-BA horn/strobes and 49VO-APPLW or 49VO-APPLW-BA strobes.
- All other 49AV and 49VO wall models already include a cover and matching mounting plate.
- Terminal blocks accept 18 AWG to 12 AWG, two wires per terminal for in/out wiring.
- Mounts to a single-gang, double-gang or 4 in. square box, flush or surface mount.
Check the suffix: 49MP-AVVOWW is the white plate, and 49MP-SVWW serves the speaker-visible (S/V) range, not A/V or strobe appliances. The 4905-9937 red surface-mount adapter skirt is a separate accessory, not a substitute for this plate.
