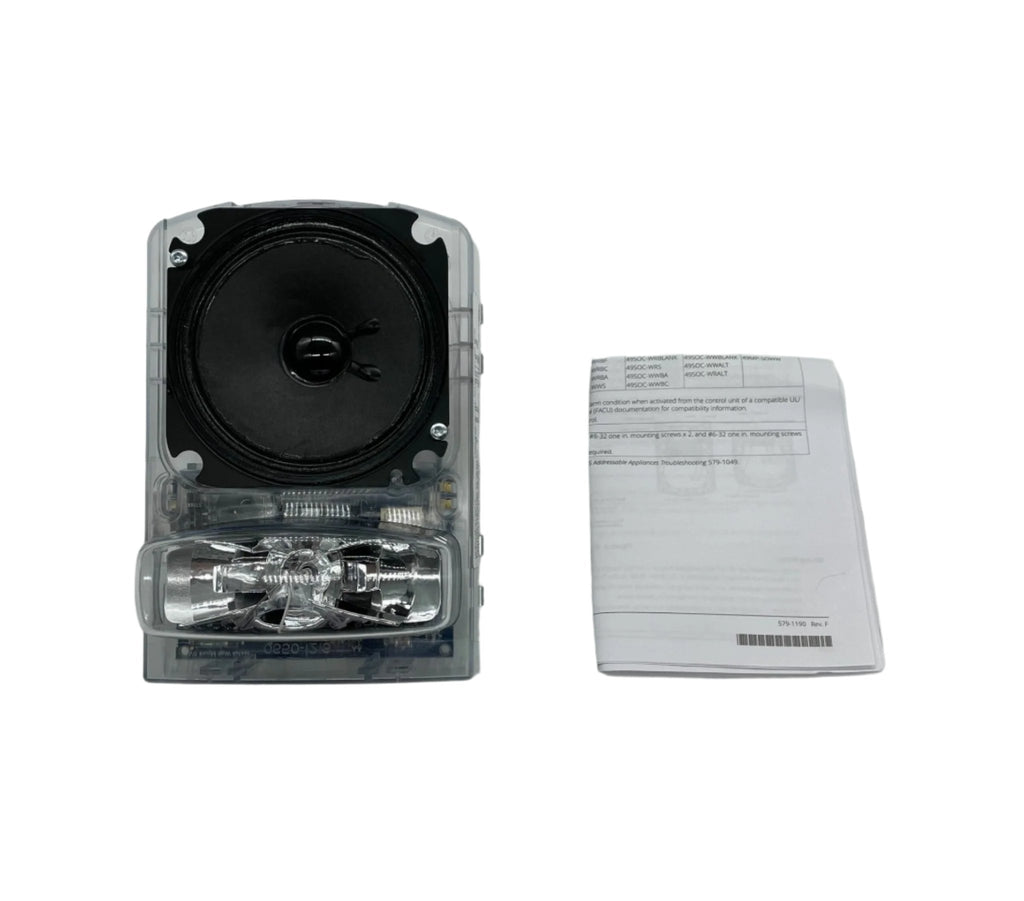

Simplex 49HFV-APPLW is a TrueAlert ES high-fidelity speaker/strobe for wall mounting, supplied as the appliance only. The strobe is powered, addressed and controlled from an IDNAC signaling line circuit, while the speaker connects to a separate Simplex audio NAC at 25 or 70.7 VRMS.
The high-fidelity speaker reproduces 200 Hz to 10,000 Hz, which supports clearer voice messages. The cover, mounting plate and any surface box are not included and are ordered separately.
Features
- High-fidelity speaker covering 200 Hz to 10 kHz
- Addressable multi-candela strobe on an IDNAC SLC
- Candela from 15 to 185 cd, set at the panel or by jumper
- Speaker taps of 1/4, 1/2, 1 and 2 W at 25 or 70.7 VRMS
- Self-Test and Magnet Test diagnostics
- Appliance only: order a 49SVC cover and mounting plate separately
Specifications
| Operating voltage |
IDNAC SLC, 23 to 30 VDC (regulated 29 VDC) |
| Candela |
15, 30, 75, 110, 135, 185 cd (programmable or jumper) |
| Speaker input |
25 VRMS or 70.7 VRMS |
| Power taps |
1/4, 1/2, 1, 2 W |
| Frequency response |
200 Hz to 10,000 Hz |
| Wiring |
18 to 12 AWG terminals, UTP recommended |
| SLC loading |
1 unit load; max 127 addresses per SLC |
| Dimensions |
7 3/8 x 5 x 1 3/4 in. (H x W x D) |
| Environment |
32°F to 120°F, 10-93% RH non-condensing |
| Rating |
NEMA 1 (indoor) |
| Standards |
UL 1480 and ULC S541 (speaker); FM approved |
Specifications taken from the manufacturer data sheet S49SVW-0001, Wall Mount Addressable Speaker Visible (S/V) Notification Appliances.
Documents
FAQ
What do I need to order with the 49HFV-APPLW?
It is the appliance only. A 49SVC wall cover and a 49MP-SVWW (white) or 49MP-SVWR (red) mounting back plate are ordered separately.
How big is it with the cover?
7-3/8 in. H x 5 in. W x 1-3/4 in. D.
What is the speaker frequency range?
The high fidelity speaker operates from 200 to 10,000 Hz.
Can the lens color be changed?
Yes. A colored lens kit is available to customize the light output.
