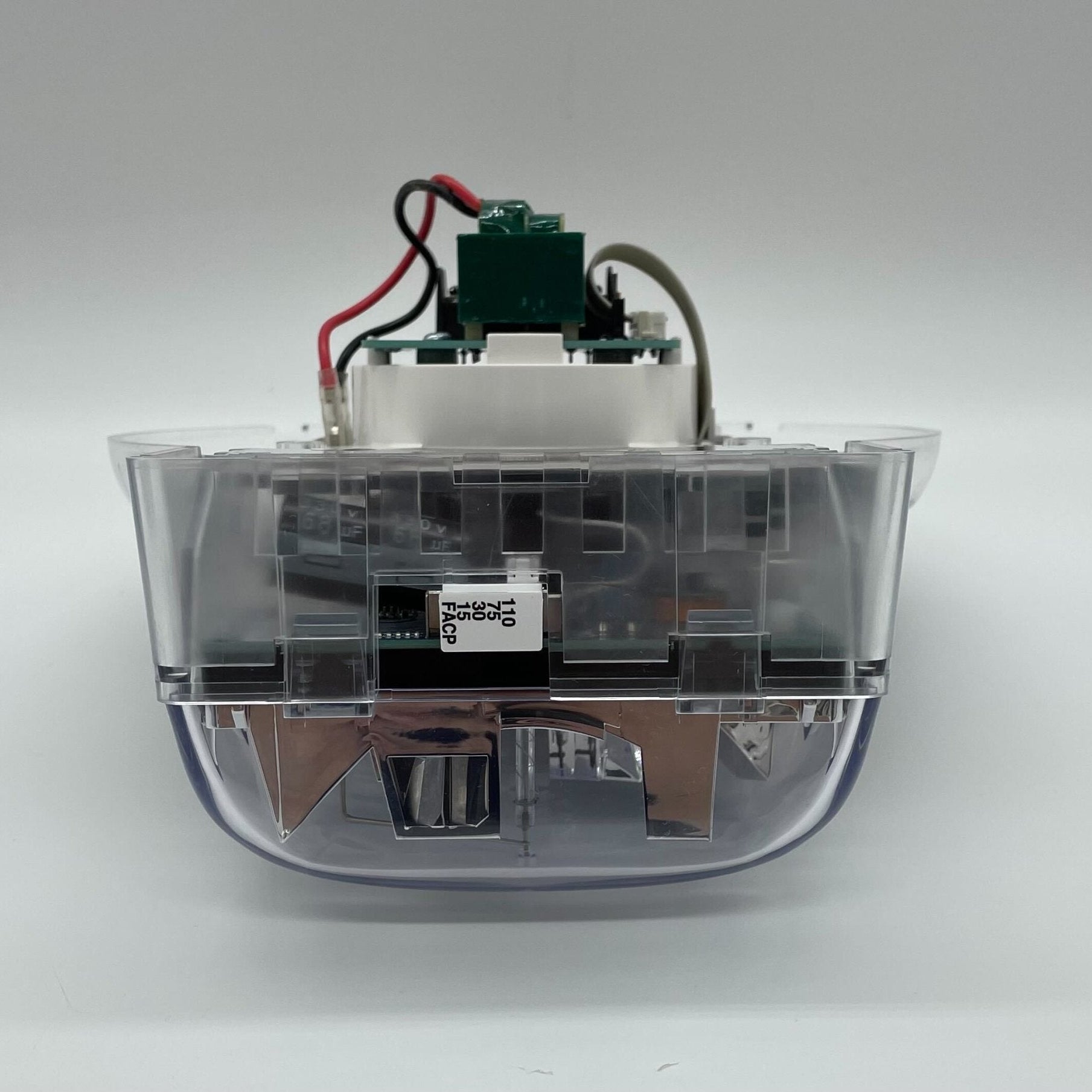

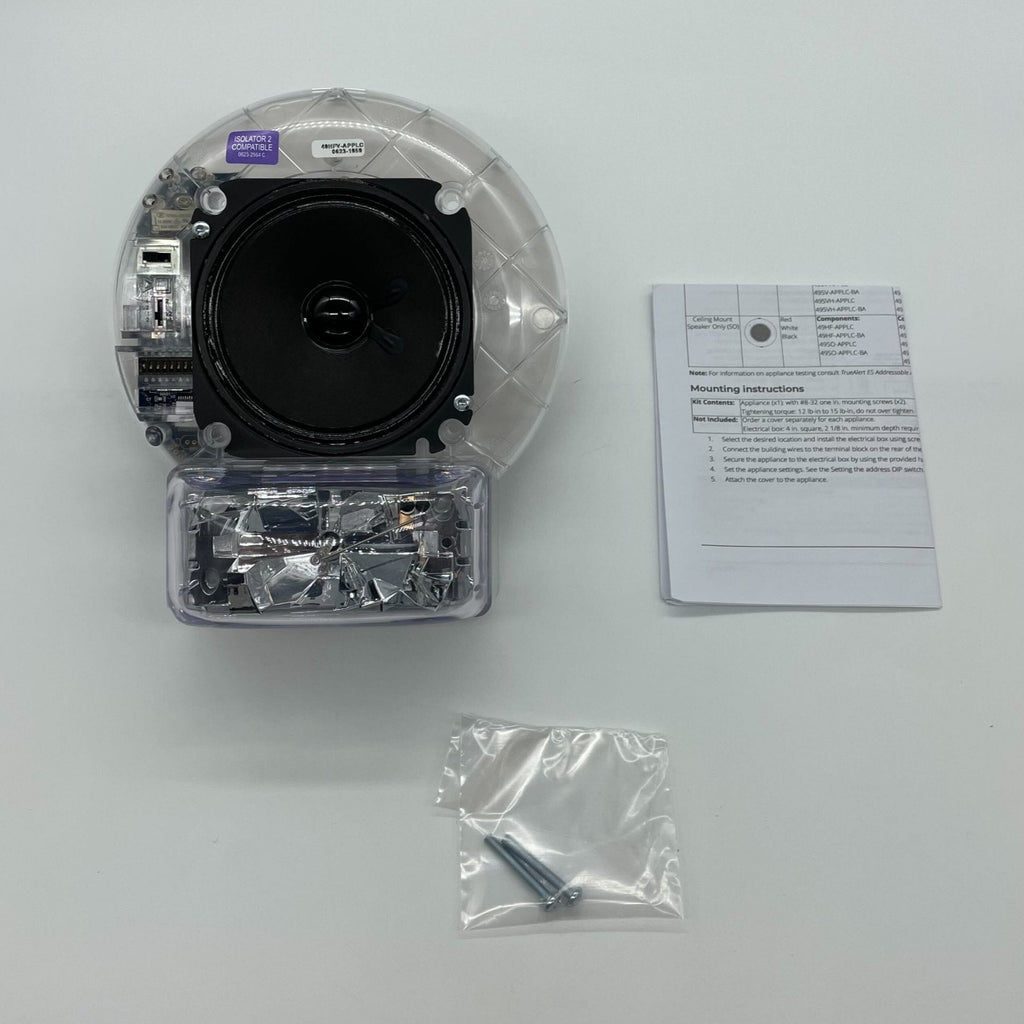

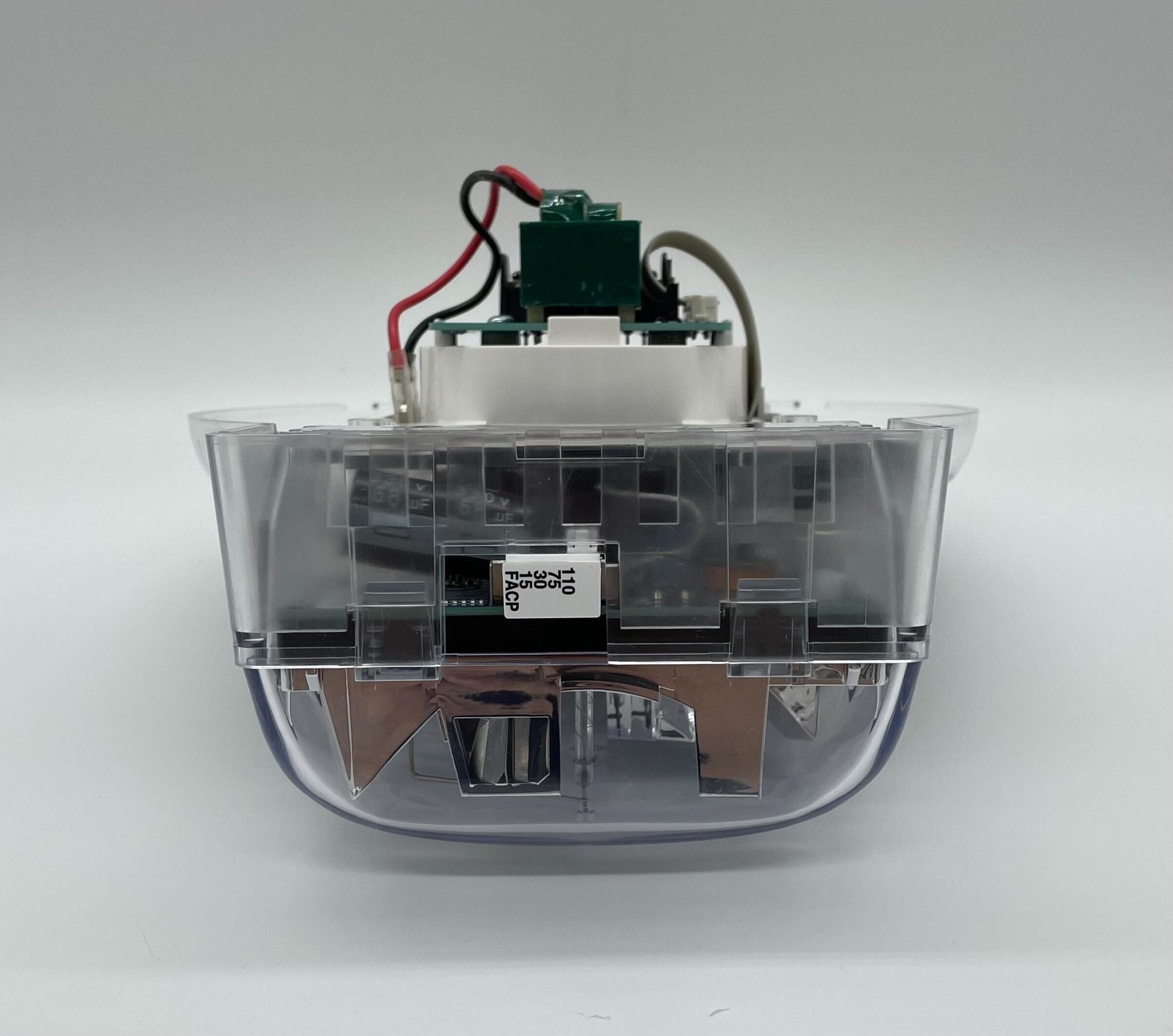

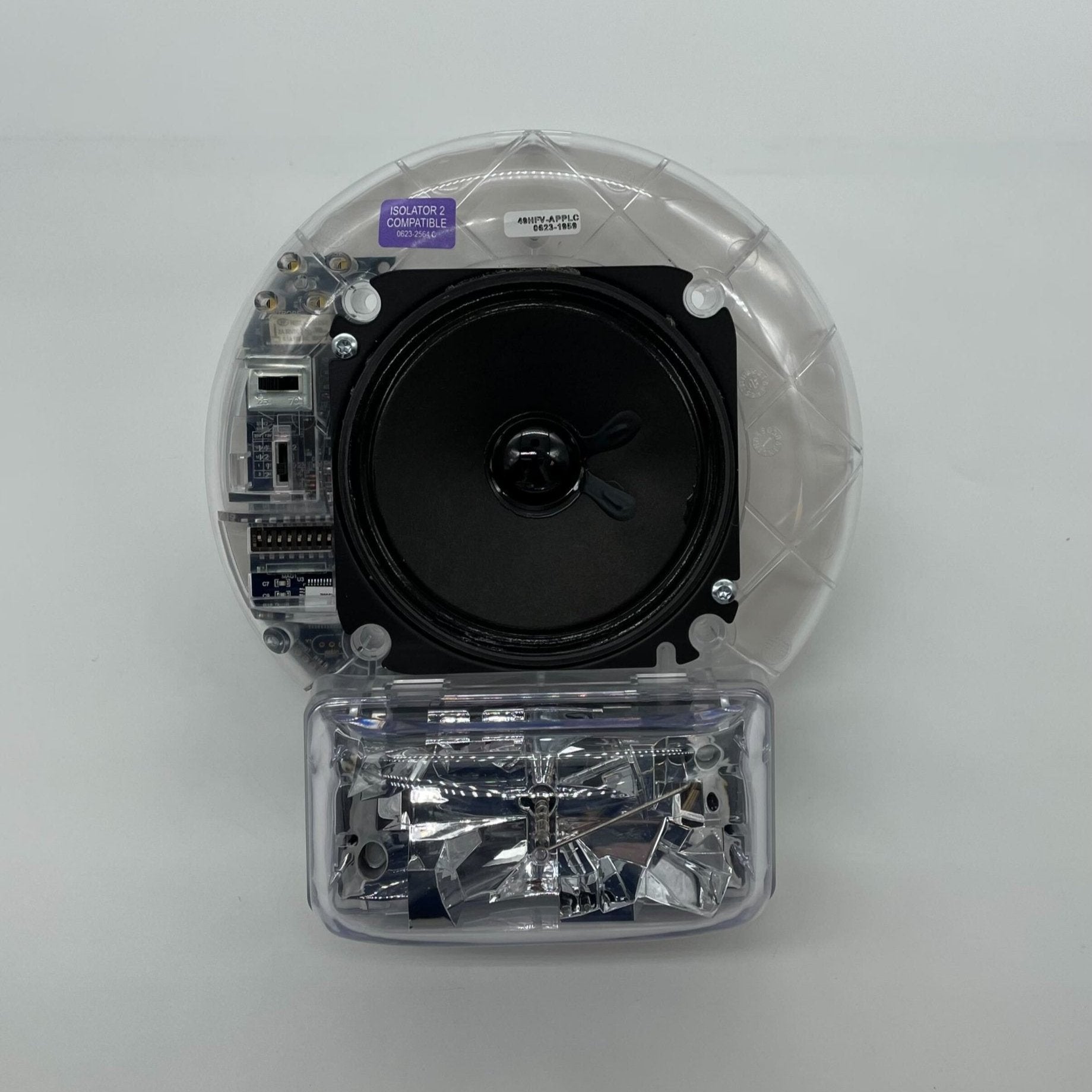

Simplex 49HFV-APPLC is a TrueAlert ES high-fidelity ceiling-mount addressable speaker/visible (S/V) appliance with a clear lens. It is individually powered, addressed and controlled from a Simplex IDNAC signaling line circuit, combining a multi-tapped speaker covering 200 to 10,000 Hz with a multi-candela strobe that flashes in sync at 1 Hz. It is supplied as the appliance only; a cover is ordered separately.
Specifications
| Model |
49HFV-APPLC (also available as 49HFV-APPLC-BA, assembled in the USA) |
| Type |
High-fidelity addressable speaker/strobe, ceiling mount |
| Candela |
15, 30, 75 or 110 cd, set from the panel |
| Strobe current at 23 VDC |
59, 82, 145 and 193 mA at 15, 30, 75 and 110 cd |
| Speaker input |
25 or 70.7 VRMS |
| Power taps |
1/4, 1/2, 1 and 2 W |
| Frequency response |
200 to 10,000 Hz |
| Speaker output at 10 ft (UL 1480 reverberant) |
76, 80, 84 and 87 dBA at 1/4, 1/2, 1 and 2 W |
| Operating voltage |
23 to 30 VDC, special application |
| SLC loading |
1 unit load; up to 127 addresses per IDNAC SLC |
| Size with cover |
8-1/8 x 7-1/8 x 3 in. (206 x 180 x 76 mm) |
| Environment |
32°F to 120°F; 10% to 93% RH non-condensing |

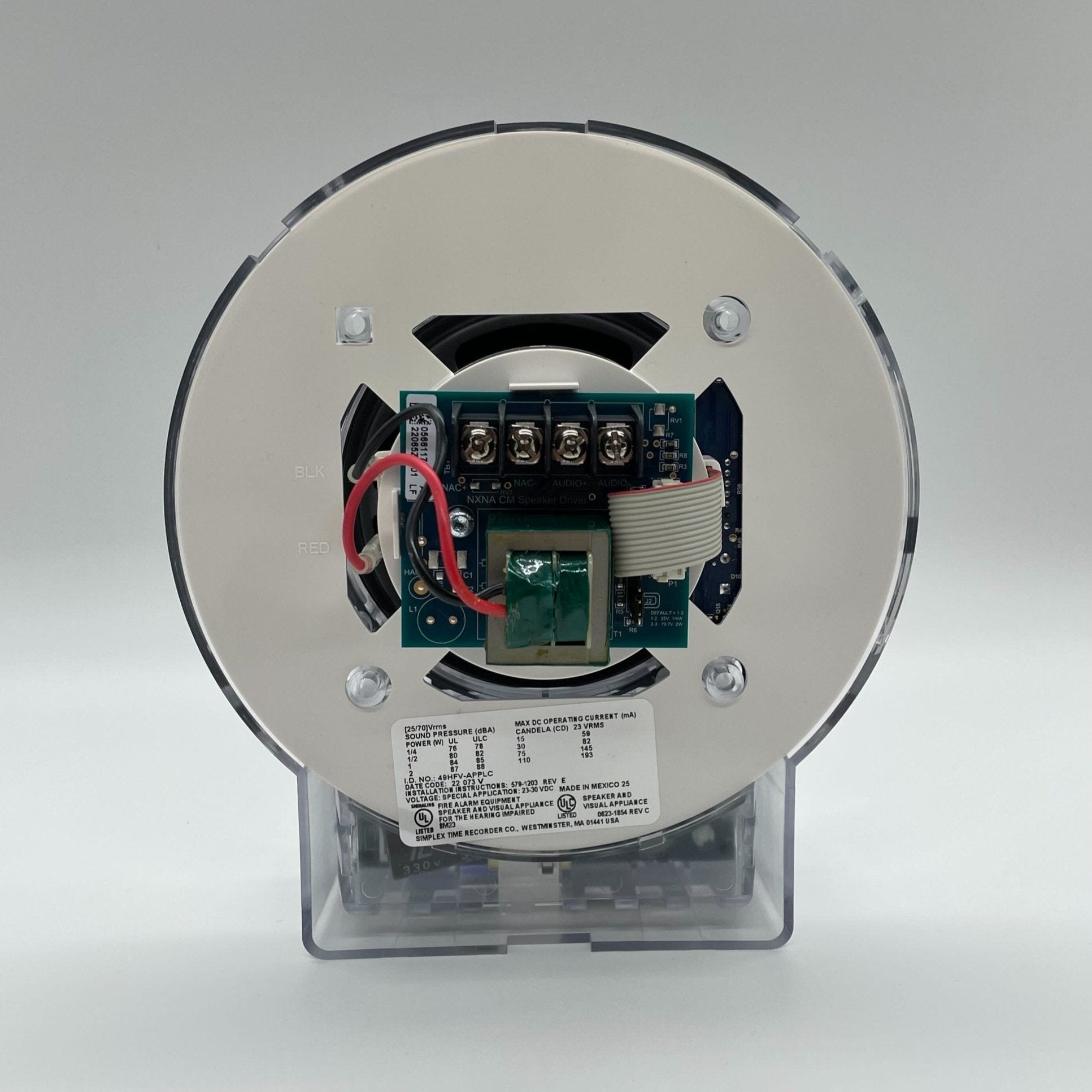

| Wiring |
18 to 12 AWG terminals; unshielded twisted pair for IDNAC and audio |
| Certifications |
UL and ULC certified; FM approved |
Installation notes
- Order a 49SVC series cover separately, for example 49SVC-CWFIRE (white, FIRE) or 49SVC-CRFIRE (red, FIRE).
- Compatible controllers: 4100ES with EPS+ or EPS power supply, or a 4009 IDNAC repeater, with 4100ES Flex amplifiers for audio.
- Audio wiring is supervised electronically and can be T-tapped for Class B wiring.
- Installation instructions: Simplex 579-1203.
Related models
- 49HFVH-APPLC: high-fidelity version with a high candela strobe (110, 135, 185 cd)
- 49SV-APPLC: standard 400 to 4000 Hz ceiling speaker strobe
- 49HFV-APPLW: high-fidelity wall-mount speaker strobe
Documents
FAQ
Does the 49HFV-APPLC include a cover?
No. Simplex sells it as the appliance only, and a 49SVC series cover is required, such as the 49SVC-CWFIRE or 49SVC-CRFIRE.
What is the difference between 49HFV and 49SV?
The 49HFV is the high-fidelity model with a 200 to 10,000 Hz speaker response. The standard 49SV covers 400 to 4000 Hz.
Which panels can drive it?
It runs on IDNAC SLCs from a 4100ES with EPS+ or EPS power supply or from a 4009 IDNAC repeater. Audio comes from compatible fire alarm audio circuits such as the 4100ES Flex amplifiers.
What speaker taps and voltages are available?
Taps are 1/4, 1/2, 1 and 2 W at 25 or 70.7 VRMS.
