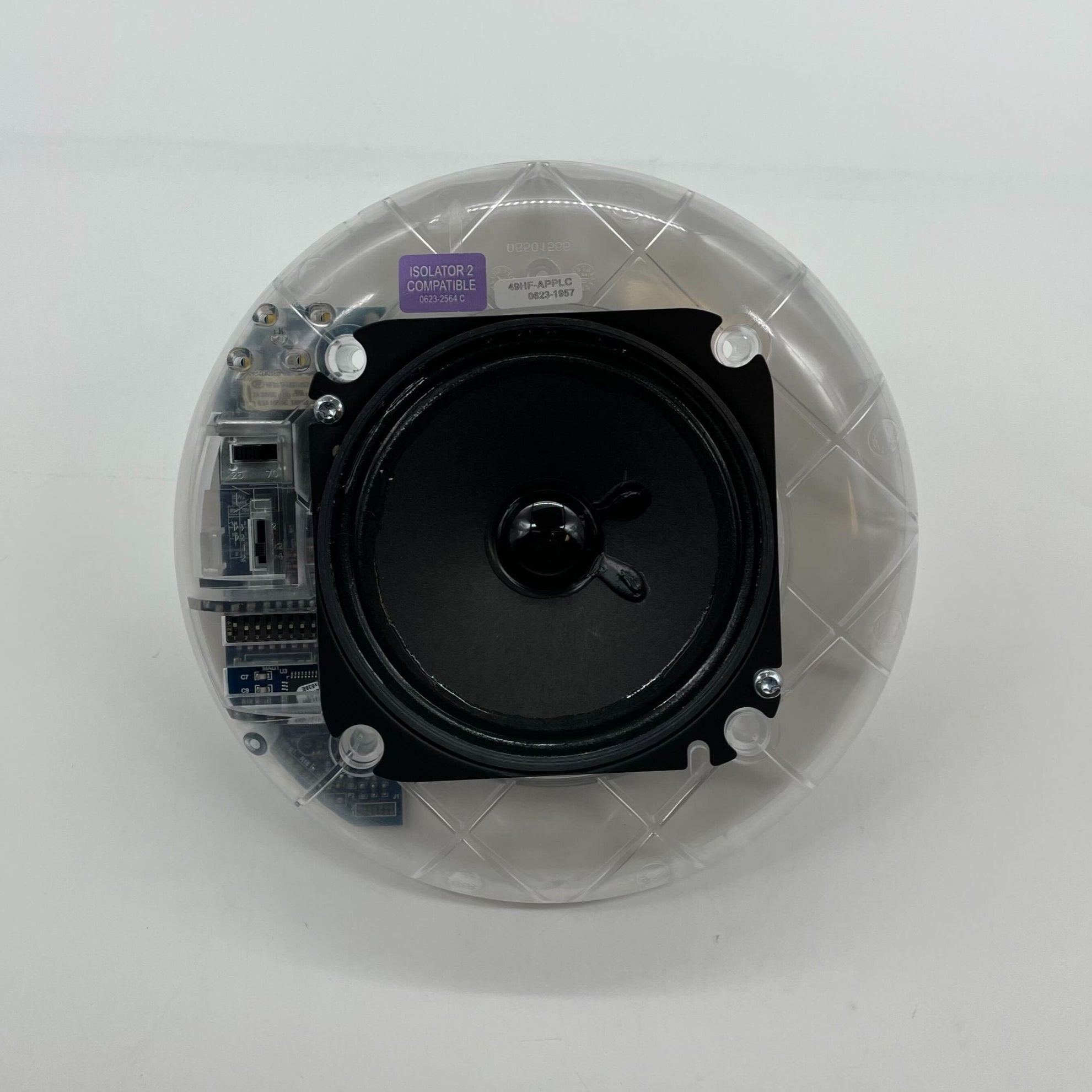

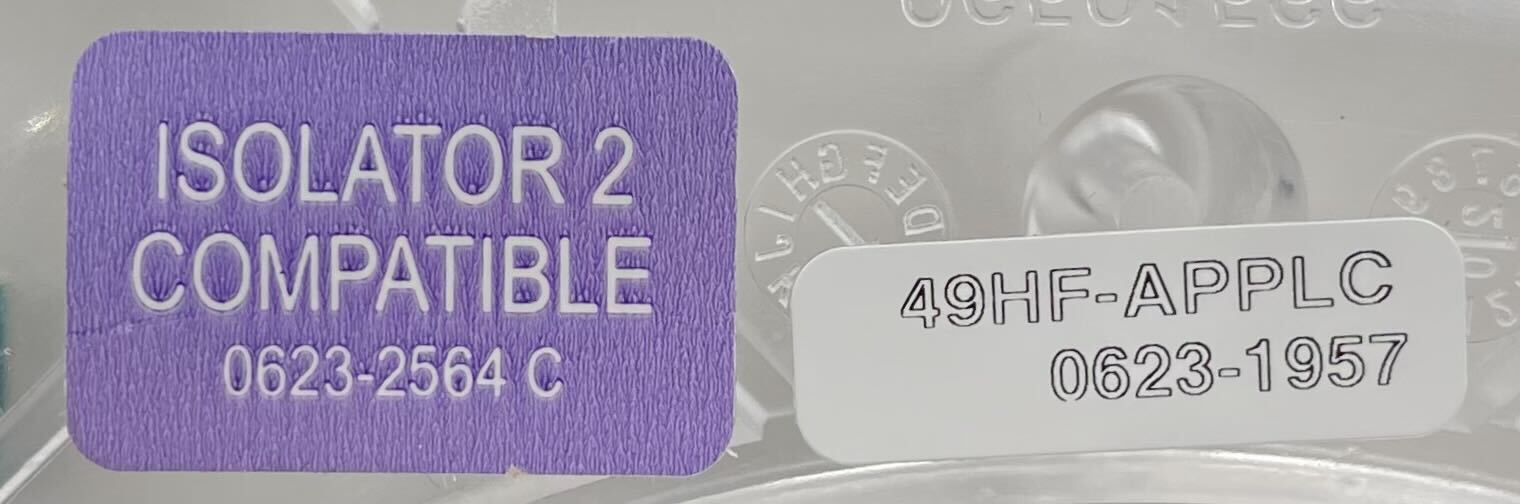

Simplex 49HF-APPLC is a TrueAlert ES high-fidelity addressable speaker for ceiling mounting. It is a speaker only, with no strobe, and is supplied as the appliance only.
Supervision and addressing come from an IDNAC signaling line circuit, while the audio signal comes from a separate Simplex audio NAC. The driver covers 200 Hz to 10 kHz for clear voice evacuation messages. The cover is not included and is ordered separately.
Features
- High-fidelity ceiling speaker covering 200 Hz to 10 kHz
- Addressable supervision through an IDNAC SLC (9 mA)
- Taps of 1/4, 1/2, 1 and 2 W at 25 or 70.7 VRMS

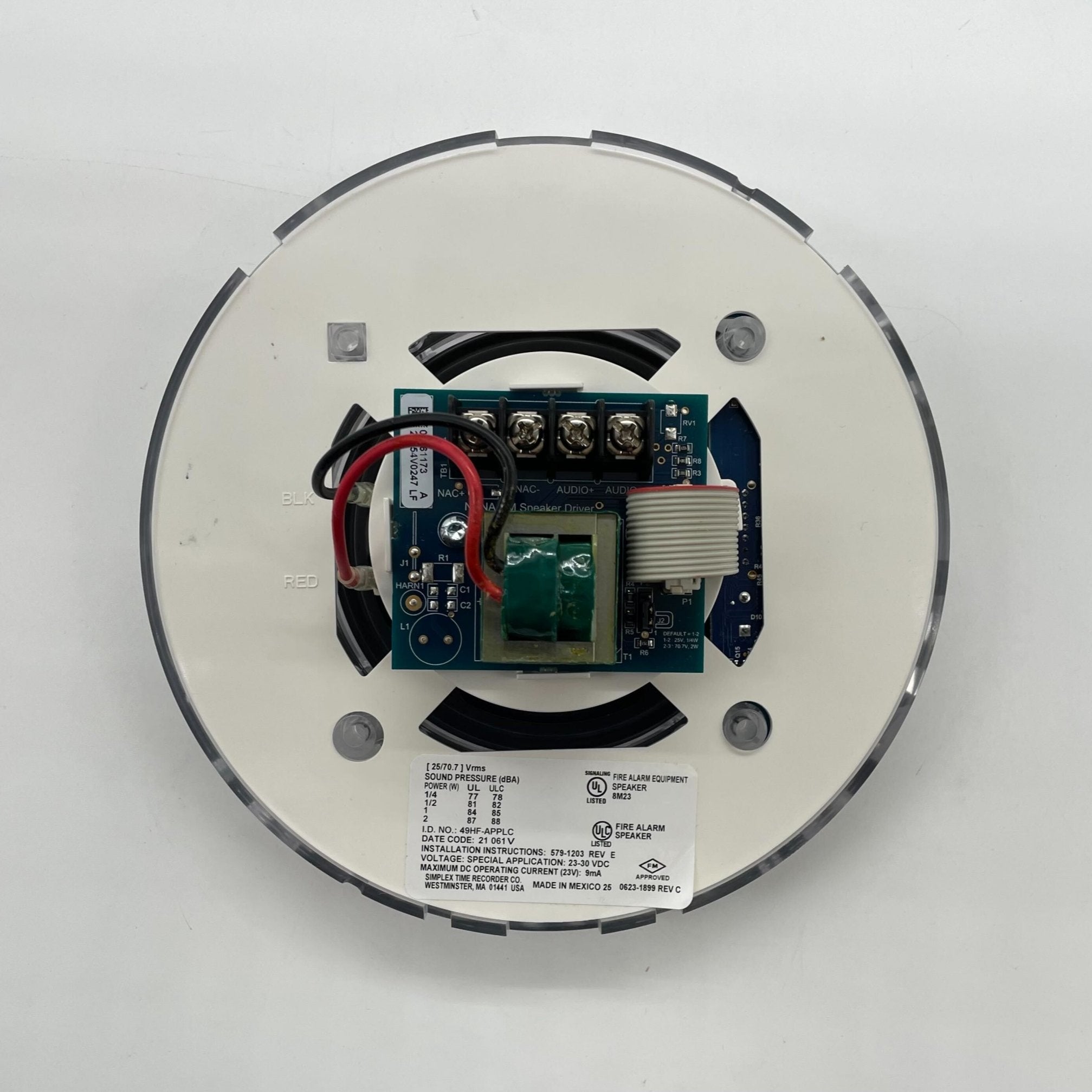

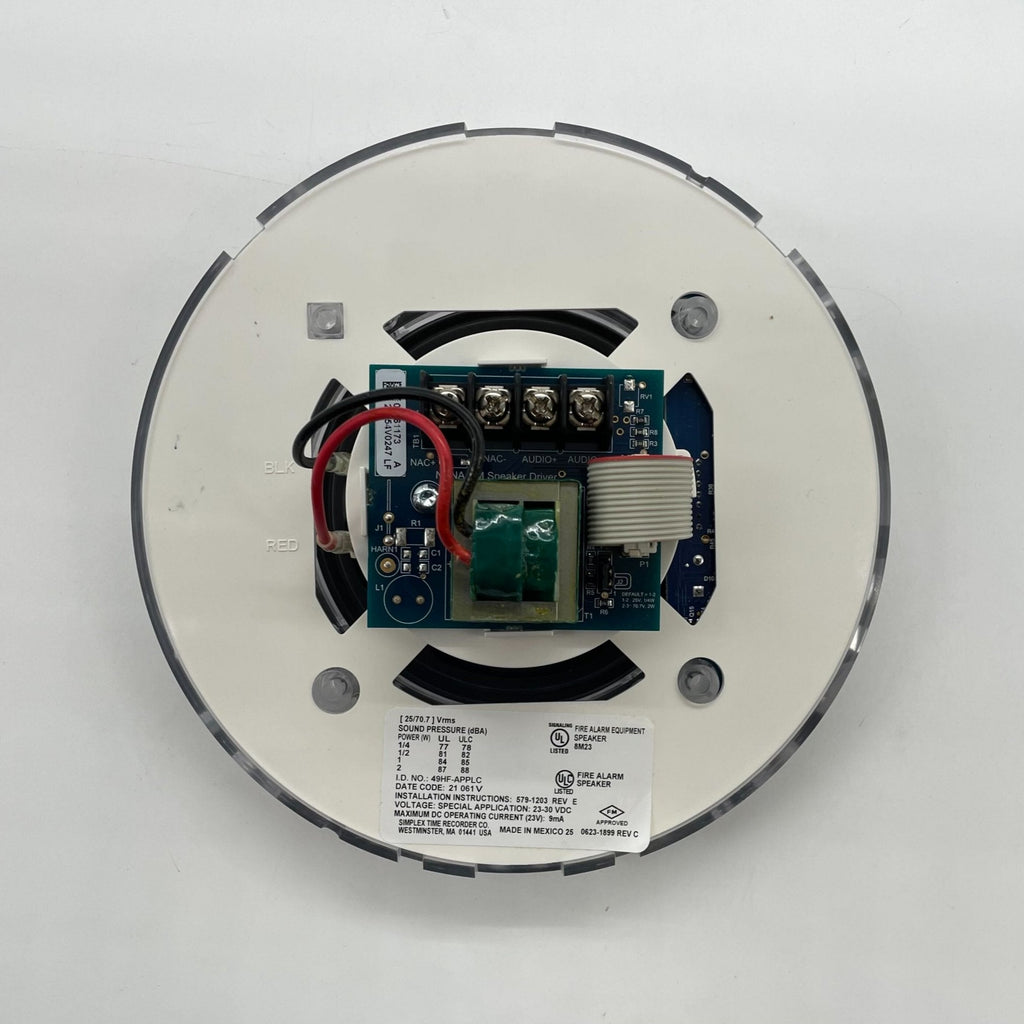

- T-tap Class B wiring for audio and IDNAC

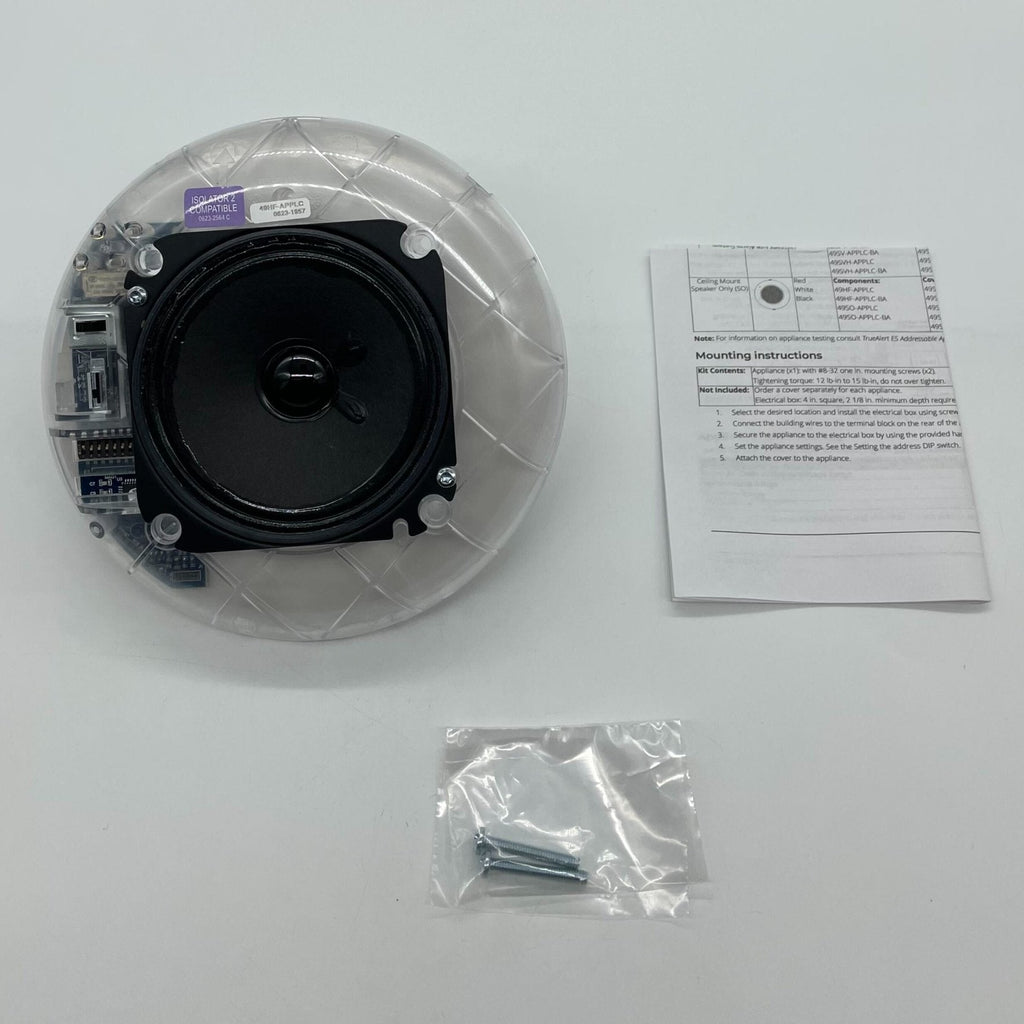

- Appliance only: order the cover separately
Specifications
| Speaker input |
25 or 70.7 VRMS |
| Power taps |
1/4, 1/2, 1, 2 W |
| Frequency response |
200 Hz to 10,000 Hz |

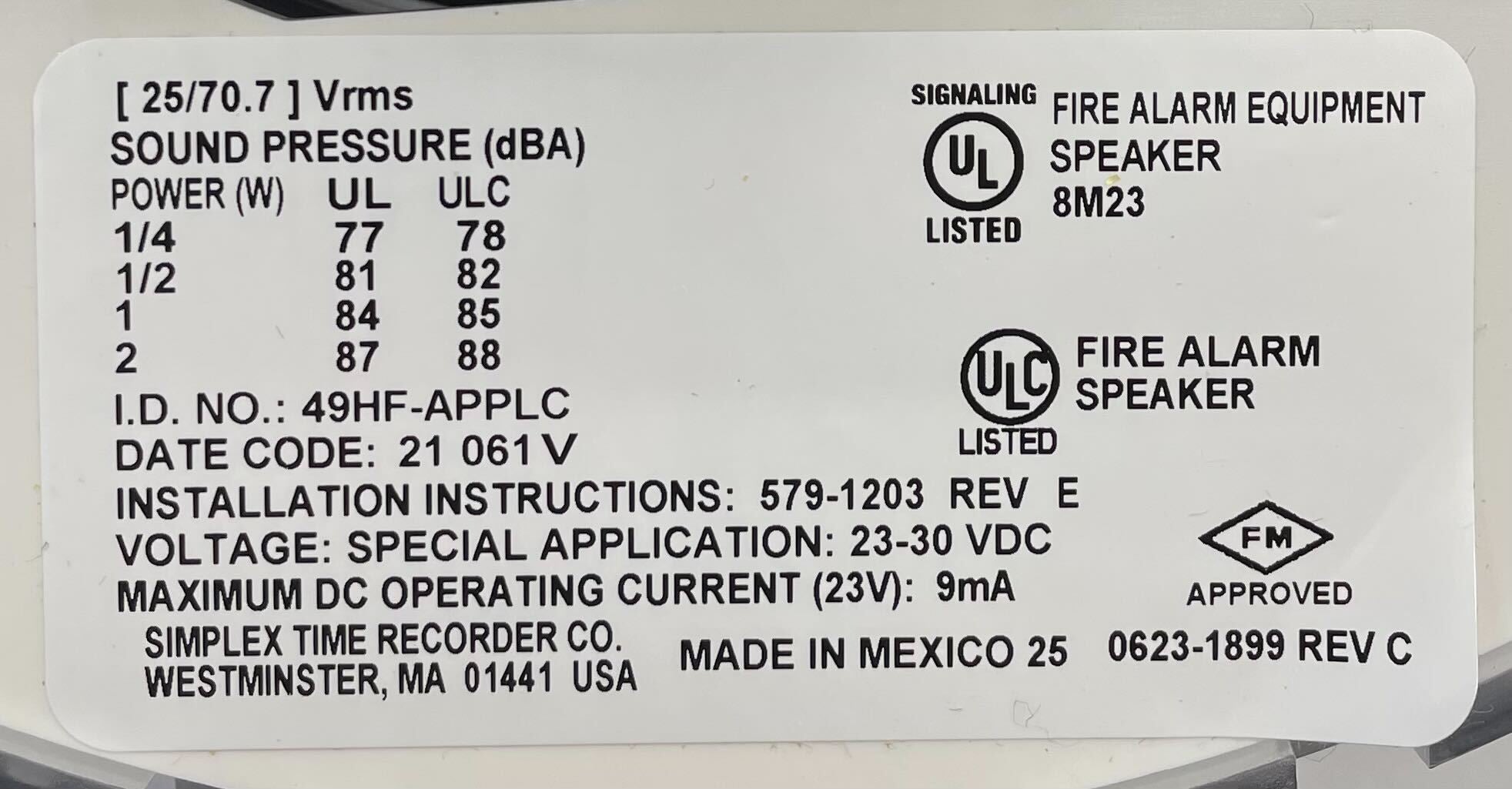

| Output (UL 1480, 2 W) |
87 dBA at 10 ft |
| IDNAC current |
9 mA |
| Dimensions |
7 1/8 x 7 1/8 x 1 1/4 in. (180 x 180 x 32 mm) |
| Environment |
32°F to 120°F, 10-93% RH |
Specifications taken from the manufacturer data sheet S49SOC-0001, Ceiling Mount Addressable Speaker (S/O) Notification Appliances.
