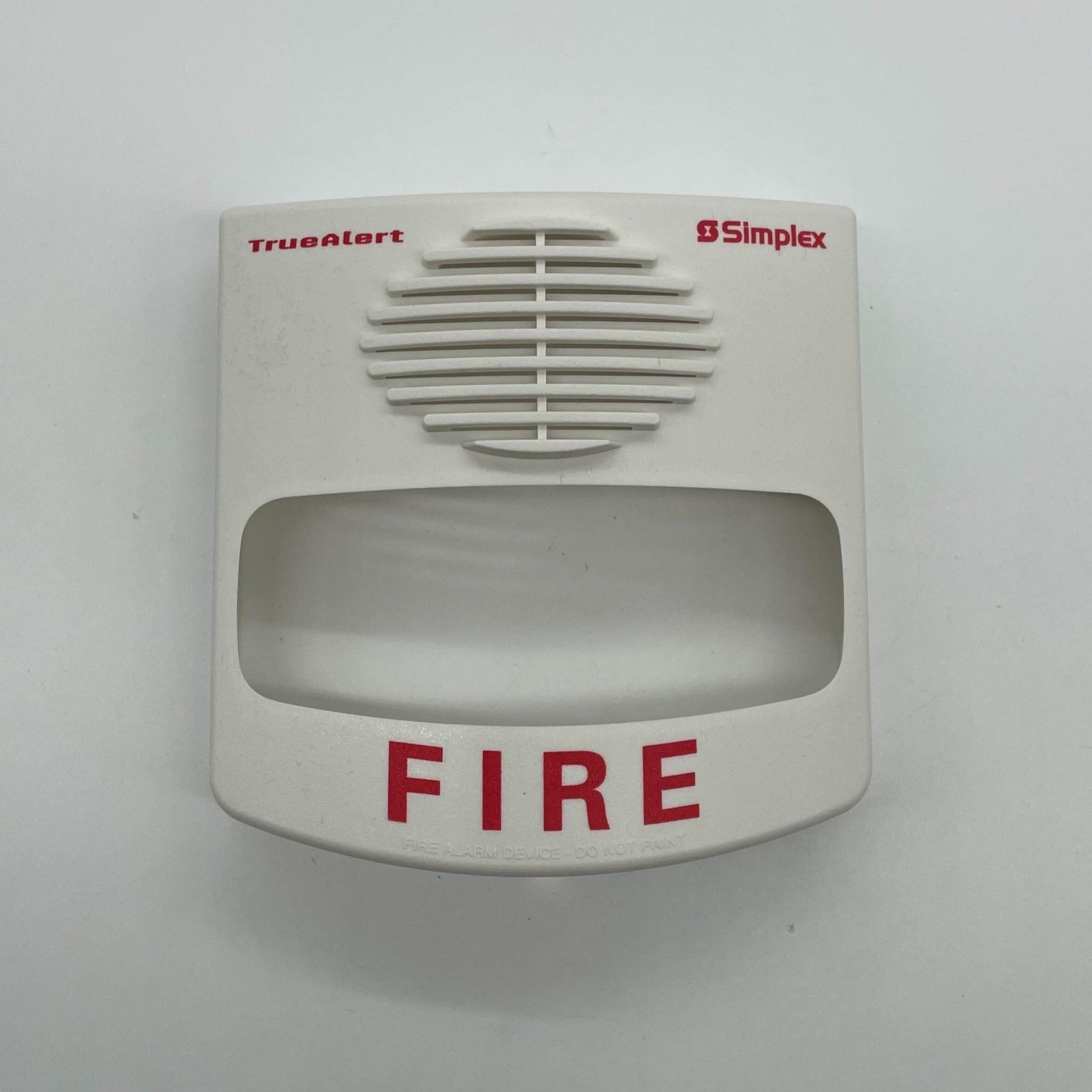

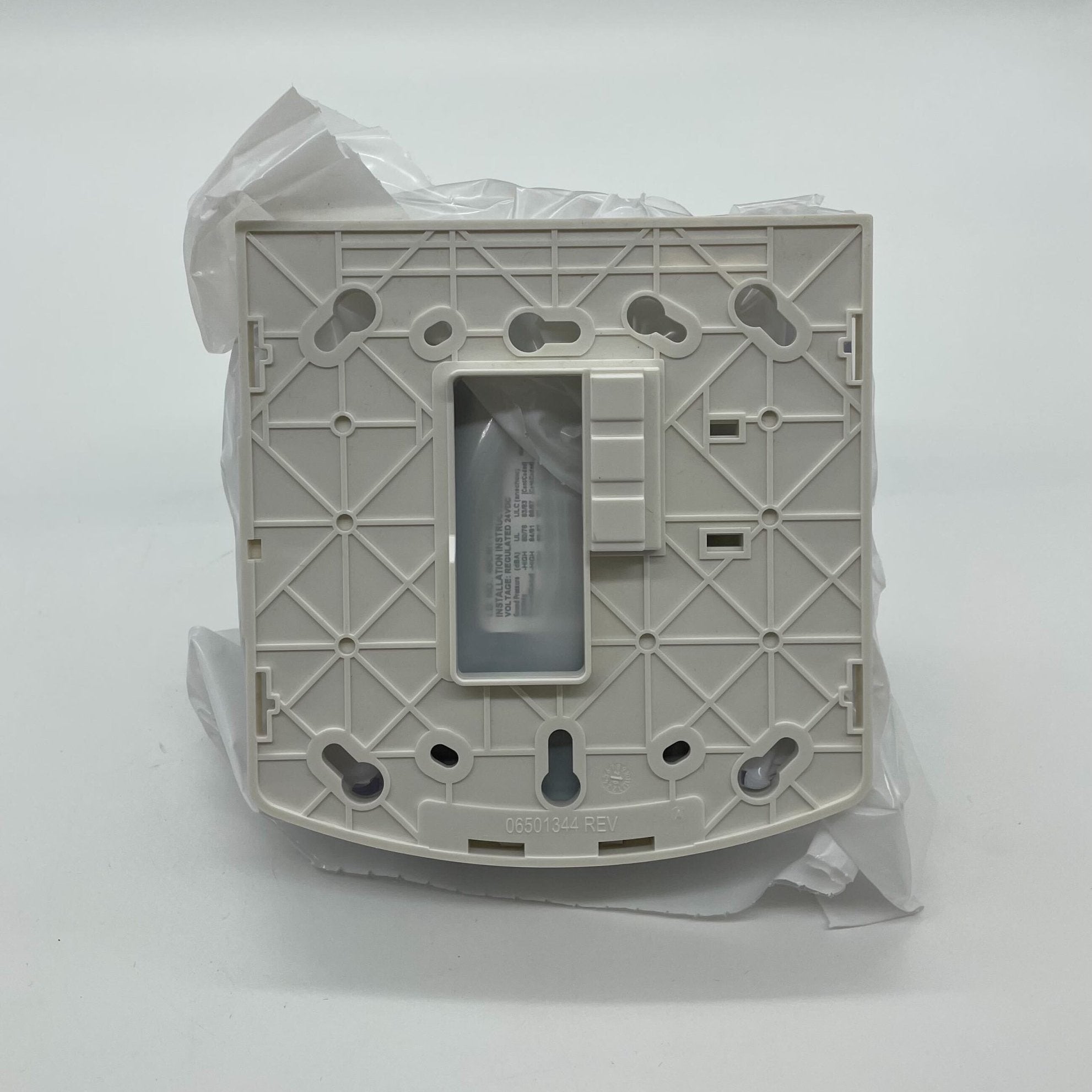

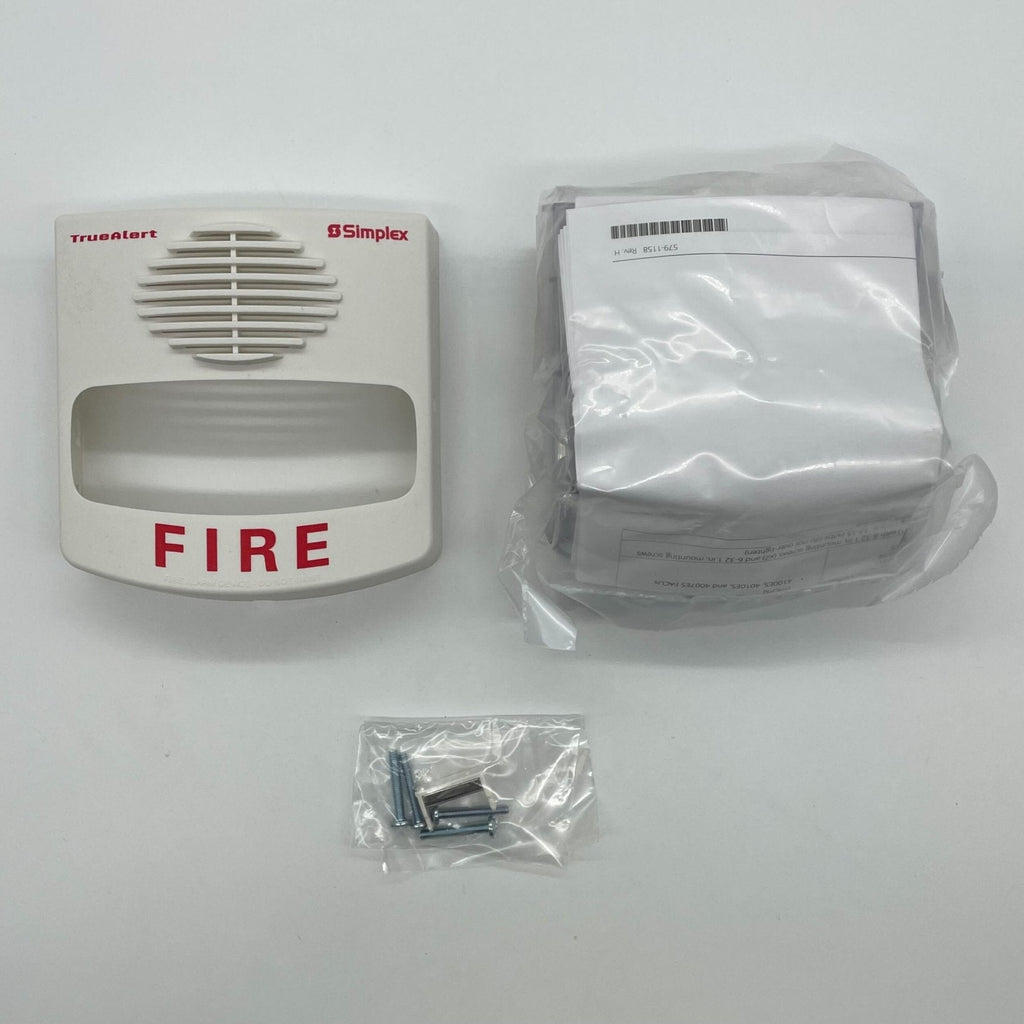

Simplex 49CMTV-WWF — TrueAlert non-addressable multi-tone horn/strobe, white cover with FIRE wording, supplied with its cover and matching mounting plate.
The V is the strobe: 49CMT is the multi-tone horn alone, and 49CMTV adds a multi-candela xenon strobe to the same tone set. Seven tones are set on an onboard DIP switch, one of them the 520 Hz output NFPA 72 requires for sleeping areas.
- Tones: 520 Hz horn, broadband horn, bell, chime, high/low, slow whoop, siren
- Strobe 15, 30, 75, 110, 135 or 185 cd, synchronized 1 Hz flash, factory set 15 cd
- 16 to 33 VDC special application; SmartSync two-wire control or free-run
- UL 464 reverberant at 10 ft, 520 Hz horn steady high: 80 dBA at 16 and 33 VDC
- Maximum of thirteen 49CMT series appliances per NAC
- 5 1/8 × 5 × 1 1/2 in. with cover; single gang, double gang or 4 in. square box
49CMTV-WRF is the same appliance with a red cover. The number most easily landed on by mistake is 49CMT-WWF, one letter away, the horn with no strobe. 49CMTV-APPLW is not a finished product: its cover and plate are ordered separately. A -BA suffix means assembled in the USA.
