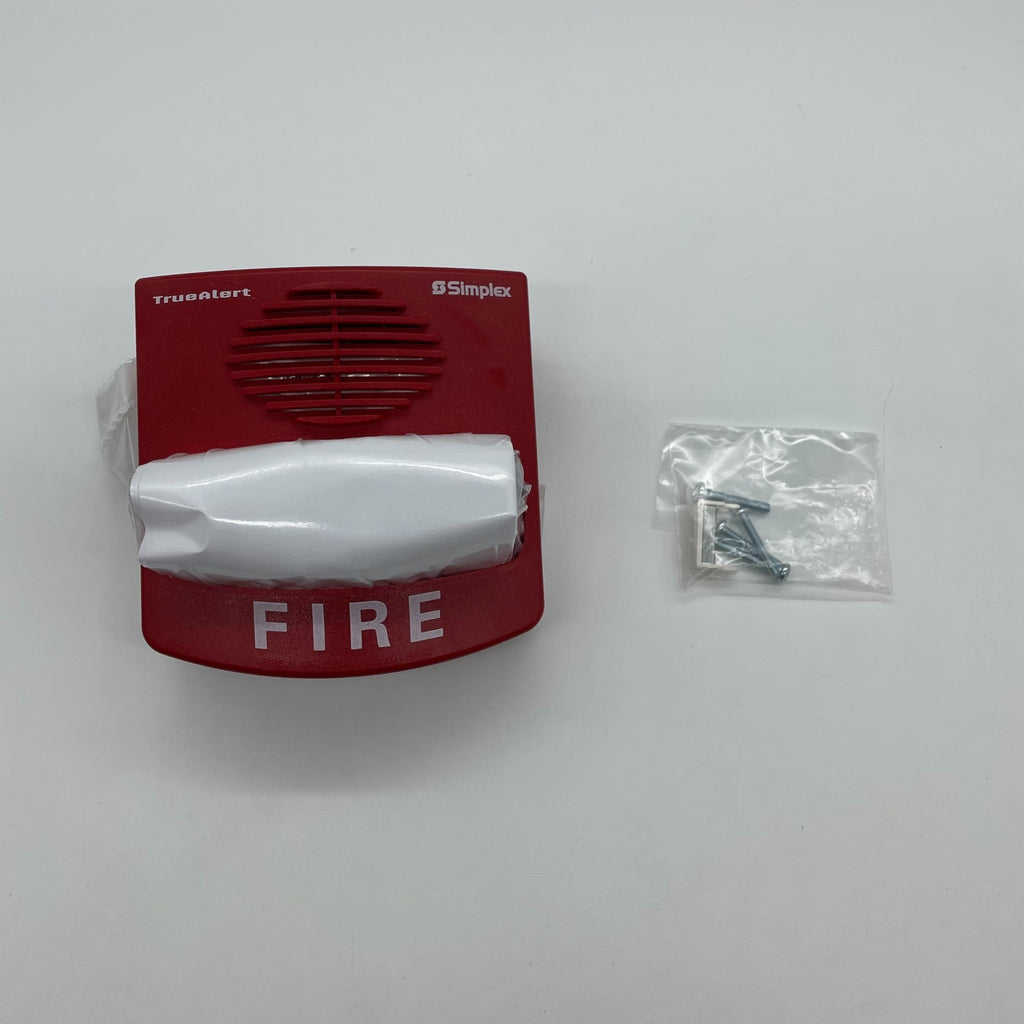

Simplex 49CMTV-WRF — non-addressable TrueAlert multi-tone horn strobe, red with FIRE lettering, supplied with its cover and matching mounting plate.
Seven tones are set on a DIP switch: 520 Hz horn, broadband horn, bell, chime, high/low, slow whoop and siren, plus a high or low output setting. The 520 Hz setting distinguishes it: Simplex states it complies with NFPA 72 low frequency requirements for sleeping areas.
- Xenon strobe at 15, 30, 75, 110, 135 and 185 cd, factory set to 15 cd
- SmartSync two-wire control or free-run; synchronized 1 Hz flash
- 16 to 33 VDC, special application; maximum 13 per NAC
- 520 Hz horn at 80 dBA steady on high, UL 464 reverberant at 10 ft.
- Strobe listed to UL 1971 and ULC S526; horn to UL 464 and S525
- 5 1/8 in. H × 5 in. W × 1 1/2 in. D with cover; 32 to 122 °F
49CMTV-APPLW is the same appliance as bare electronics, cover and plate ordered separately; 49MTV-WRF is the addressable TrueAlert ES version for IDNAC. The strobe-less 49CMT-WRF is the horn alone, and Simplex lists that one for wall or ceiling mounting where this sheet shows only a wall mount reference.
