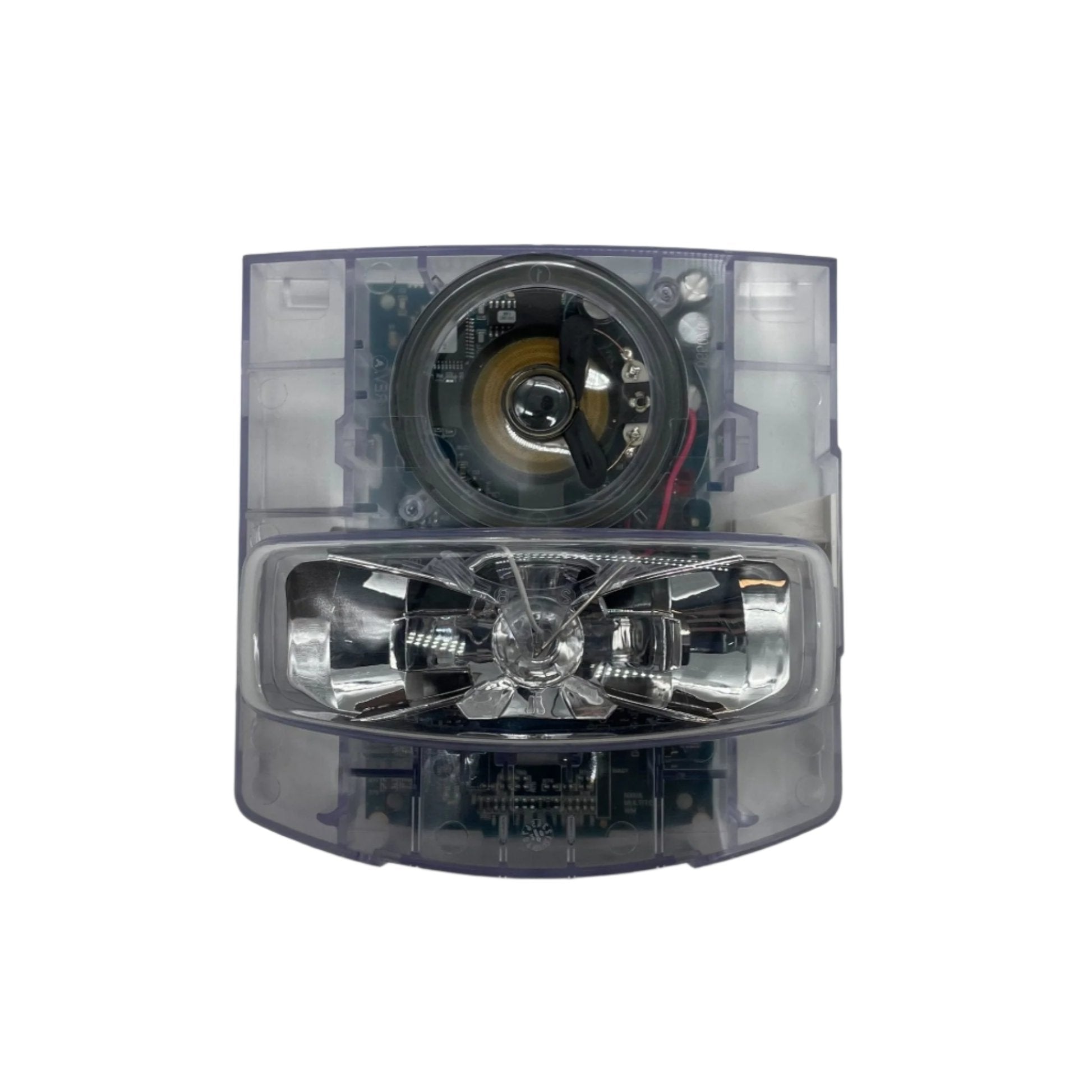

Simplex 49CMTV-APPLW is a TrueAlert non-addressable 24 VDC multi-tone horn/strobe for wall mounting, supplied as the appliance only. A jumper-selected multi-candela xenon strobe (15 to 185 cd, flashing in sync at 1 Hz) is paired with seven tones chosen on DIP switches, 520 Hz included.
It works under SmartSync two-wire control or free-run on a conventional notification appliance circuit. The cover and a 49CMP mounting plate are not included and are ordered separately.
Features
- Non-addressable multi-tone horn/strobe, appliance only
- Strobe at 15, 30, 75, 110, 135 or 185 cd
- Tones: 520 Hz, broadband, bell, chime, high/low, slow whoop and siren
- SmartSync two-wire control or free-run operation
- Needs a separate cover and 49CMP mounting plate
- Assembled in the USA
Specifications
| Operating voltage |
16 to 33 VDC |
| NAC loading |
Max 13 49CMT-series appliances per NAC |
| Candela |
15, 30, 75, 110, 135, 185 cd |
| Current at 16 VDC |
207 mA (15 cd) to 438 mA (185 cd), 520 Hz high |
| Dimensions with cover |
5 1/8 x 5 x 1 1/2 in. |
| Temperature |
32°F to 122°F (0°C to 50°C) |
Specifications taken from the manufacturer data sheet S49CMTV-0001, Multi-Tone Horn/Strobe with 520 Hz Output, Non-Addressable.
