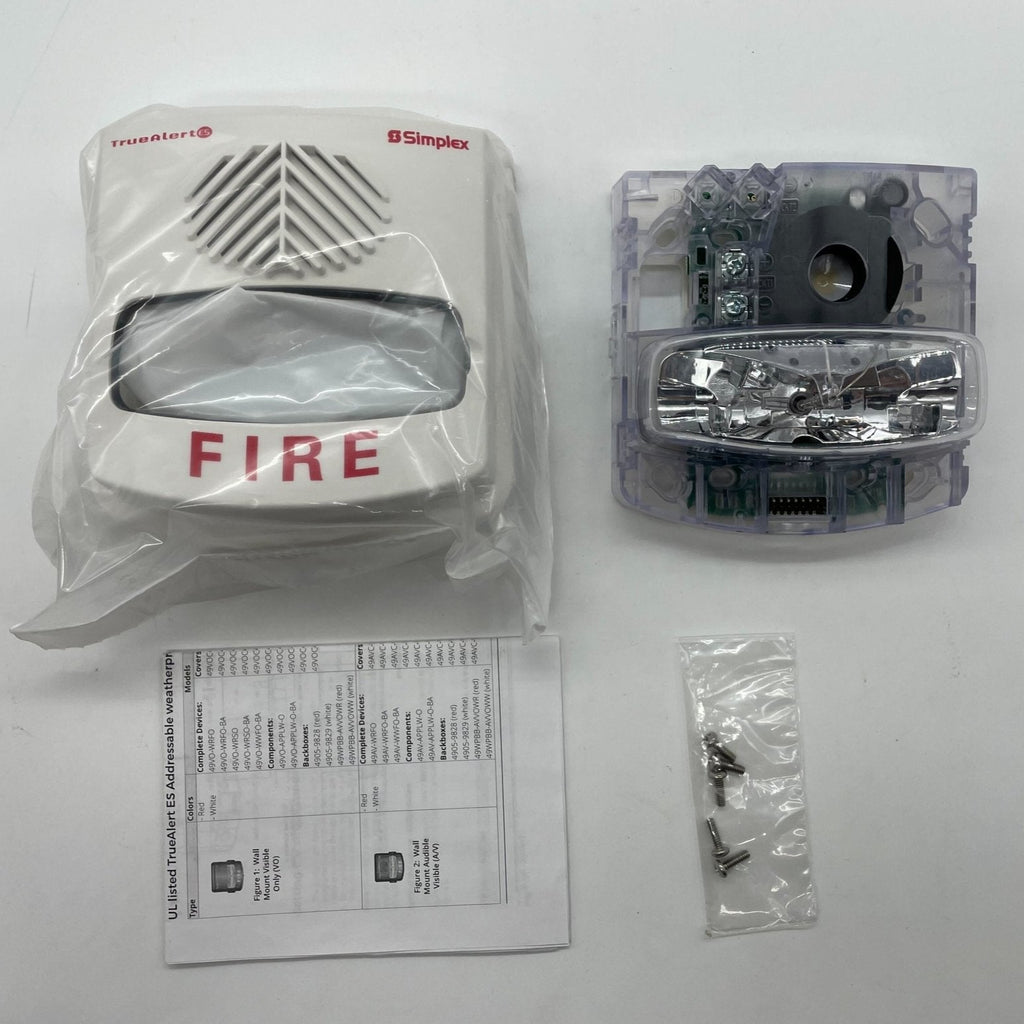

Simplex 49AV-WWFO-BA — weatherproof TrueAlert ES addressable horn strobe, wall mount, white cover with red FIRE lettering.
Datasheet S49WP-0001 puts this number in the Horn/Strobe (A/V) group of its UL certified weatherproof table. It is individually addressed from an IDNAC circuit held at a regulated 29 VDC, and its four strobe settings belong to two different certifications rather than one candela ladder.
- UL 1971 settings 15 or 75 cd, rated 32 to 120 °F; UL 1638 settings WP75 and WP185, rated -31 to 150 °F
- 23 VDC RMS current, horn continuous on high: 80 mA at 15 cd, 165 mA at 75 cd, 163 mA at WP75, 189 mA at WP185
- Horn at 10 ft, UL 464 reverberant test: 81.3 dBA steady high, 73.8 dBA steady low
- 23 to 31 VDC, one unit load, up to 127 addresses per SLC; enclosure rated NEMA 3R
- Requires weatherproof box 49WPBB-AVVOWW white or 49WPBB-AVVOWR red, ordered separately
The -BA suffix means assembled in the USA, not a different appliance. 49VO-WWFO-BA is the same housing without the horn, and the indoor 49AV-WWF-BA of datasheet S49AV-0001 is a six-setting 15/30/75/110/135/185 cd device.
Documents
FAQ
Is the weatherproof back box included?
No. The 49WPBB-AVVOWW white surface mount weatherproof mounting box is required and ordered separately.
Which strobe settings are for outdoor use?
UL 1638 covers outdoor applications with the strobe at 75 cd (WP75) or 185 cd (WP185). The 15 and 75 cd settings are UL 1971 ratings.
What enclosure rating does it have?
The enclosure is rated NEMA 3R, with in/out wiring terminals for 18 to 12 AWG wire.
How is it controlled?
It is individually addressed and receives power, supervision and control from a Simplex panel providing IDNAC signaling line circuits.
