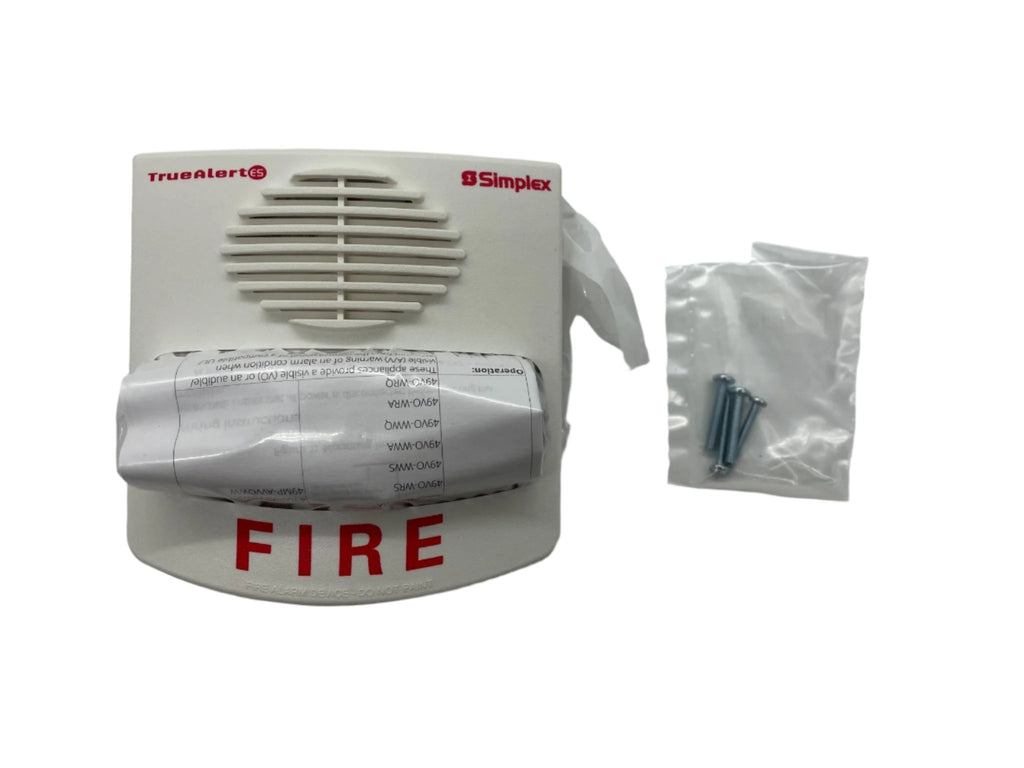

Simplex 49AV-WWF TrueAlert ES Addressable Horn Strobe Appliance, Wall-Mount, 15/30/75/110/135/185cd, White, "FIRE"
Key Features
- Multi-candela xenon strobe with synchronized 1 Hz flash rate and with intensity programmable from the fire alarm control unit (FACU) or jumper selected as 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, or 185 cd
- Advanced addressable notification controlled by IDNAC SLCs providing regulated 29 VDC allowing strobes to operate with lower current even under battery backup
- Wiring supervision to each appliance allowing T-tapped connections for Class B circuits to simplify wiring; class A circuits require in/out wiring
- Self-Test Mode allows on-board sensors to detect the strobe and horn output and then report their status to the FACU
- TrueAlert Device Reports are available at the FACU detailing appliance point ID, custom label, type, and candela setting
- Magnet Test diagnostics assist checkout and testing of appliances and wiring
- Electrical test point access: access the electrical test point without removing cover
- Compatibility with ADA requirements; see Installation reference
- Compatibility with legacy TrueAlert addressable systems for upgrade and replacement, see TrueAlert ES A/V LEGACY compatibility reference
Documents & Downloads
FAQ
Which Simplex panels can drive the 49AV-WWF?
It runs on IDNAC SLCs from the 4100ES with EPS+ or EPS power supply, the 4007ES with IDNAC notification, the 4010ES with ESS supply, and the 4009 IDNAC repeater.
What candela settings are available?
15, 30, 75, 110, 135 or 185 cd, programmed from the fire alarm control unit or selected by jumper. The strobe flashes at a synchronized 1 Hz.
Does it include a mounting plate?
Yes. TrueAlert ES addressable A/V appliances include the cover and matching mounting plate, which fits single gang, double gang or 4 in. square boxes, flush or surface mounted.
How many appliances fit on one SLC?
An IDNAC SLC supports up to 127 addresses and 139 unit loads; the terminals accept 18 to 12 AWG wire.
