Simplex 49AV-WRFO TrueAlert ES Weatherproof Addressable Horn Strobe, Wall Mount, Red, FIRE

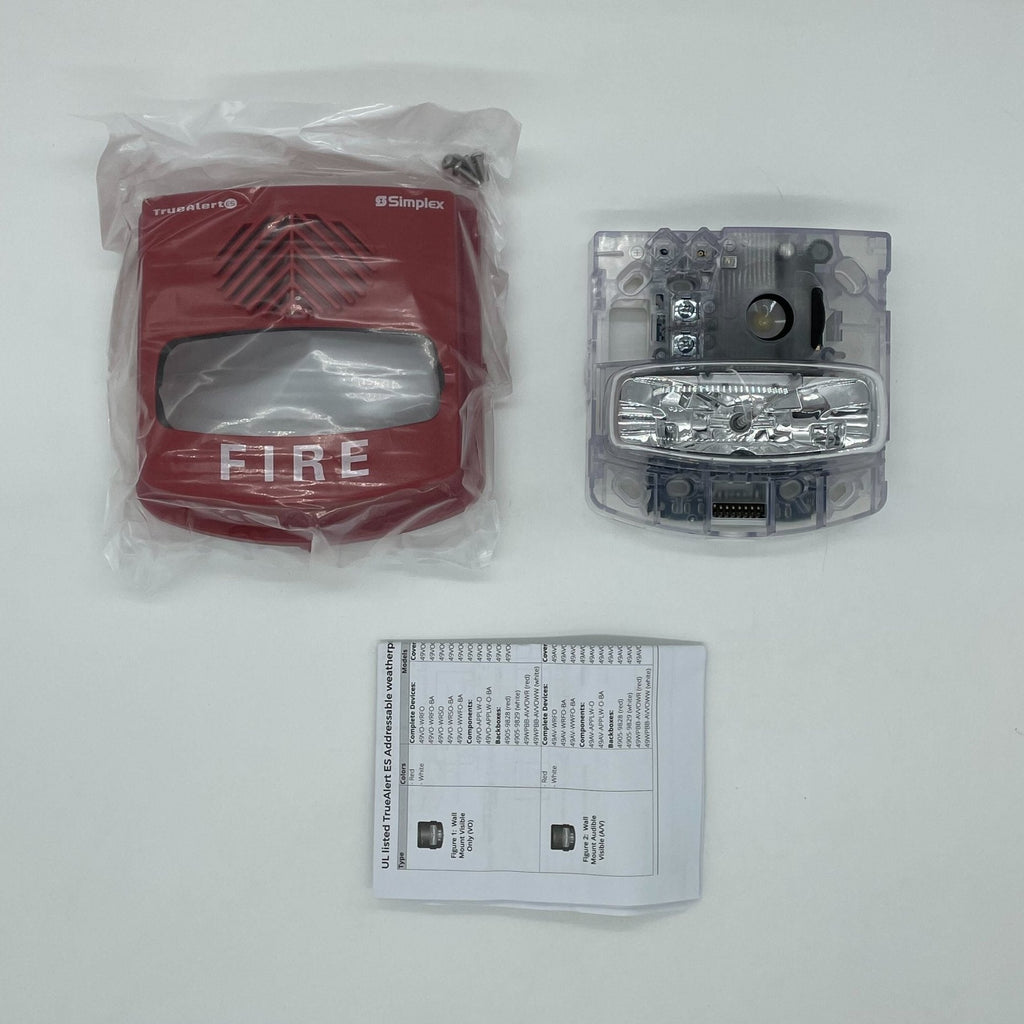

Simplex 49AV-WRFO — TrueAlert ES addressable weatherproof wall horn/strobe, red with white FIRE lettering.

The outdoor member of the 49AV wall range, built for extended temperature and humidity. It is individually addressed on an IDNAC signaling line circuit, so the panel sets the candela, reports the appliance by point ID, and can self-test it.

• Multi-candela xenon strobe, synchronized 1 Hz flash, panel or jumper selected
• UL 1971 indoor settings 15 or 75 cd; UL 1638 outdoor settings WP75 (75 cd) and WP185 (185 cd)
• UL 1638 rated -31°F to 150°F; UL 1971 rated 32°F to 120°F
• Horn 81.3 dBA steady high at 10 ft, UL 464; Temporal 3, Temporal 4, March Time or continuous
• IDNAC SLC power, regulated 29 VDC, 23 to 31 VDC range, one unit load
• At 23 VDC it draws 80 mA at 15 cd and 189 mA at WP185; terminals 18 to 12 AWG
• NEMA 3R; needs red weatherproof box 49WPBB-AVVOWR, ordered separately

The trailing O marks the weatherproof build: 49AV-WRF is the indoor wall model, with a different candela set. 49AV-WWFO-BA is white, 49VO-WRFO is strobe only, and 49AV-APPLW-O ships without a cover.

Documents

• TrueAlert ES Weatherproof Addressable Notification Appliances S49WP-0001 — Data Sheet (PDF)

FAQ

Is a weatherproof back box included?
No. The appliance requires the red 49WPBB-AVVOWR weatherproof box, ordered separately.

Which panels can drive it?
It needs an IDNAC signaling line circuit from a compatible Simplex panel, such as the 4100ES, 4007ES or 4010ES with the appropriate IDNAC power supply.

What horn patterns are available?
The horn can sound Temporal Code 3, March Time (20, 60 or 120 beats per minute), continuous or Temporal Code 4, at a high or low output setting.

What is the enclosure rating?
The enclosure is rated NEMA 3R.
