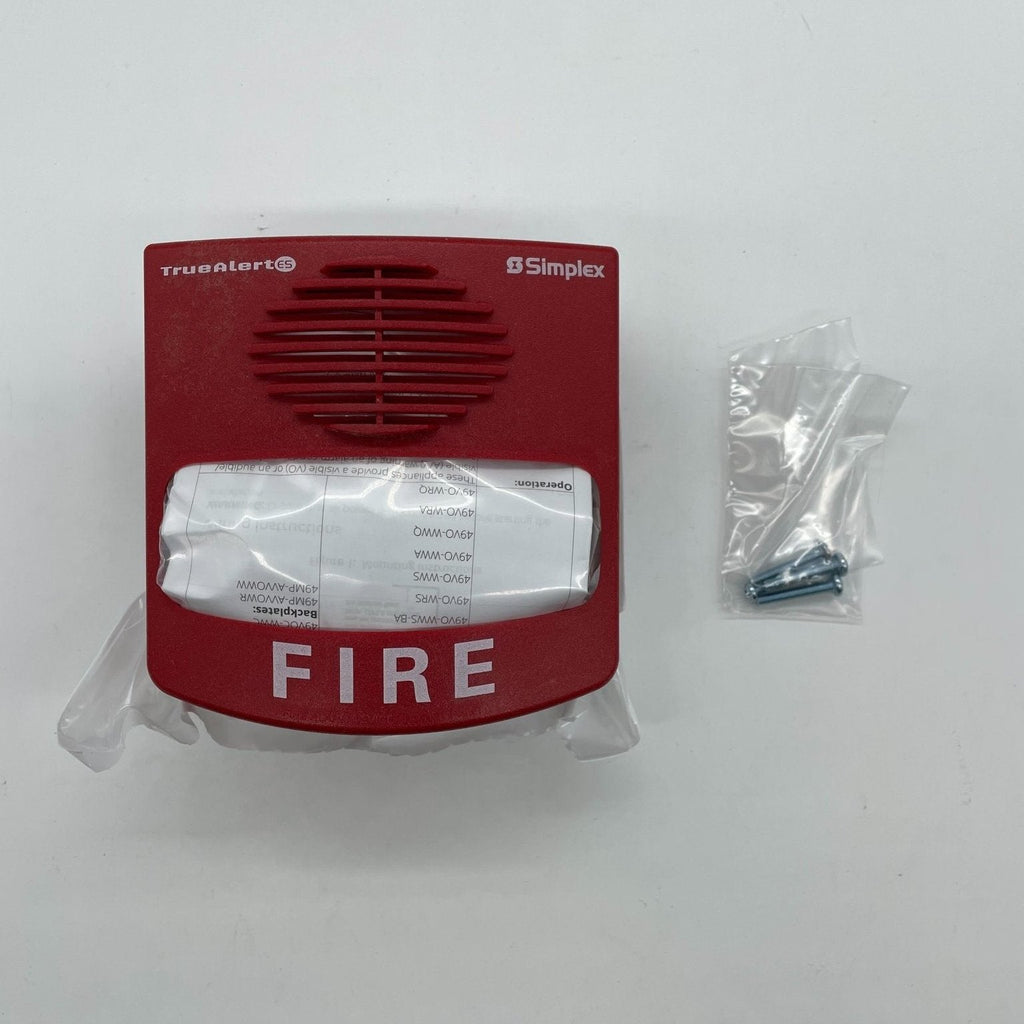

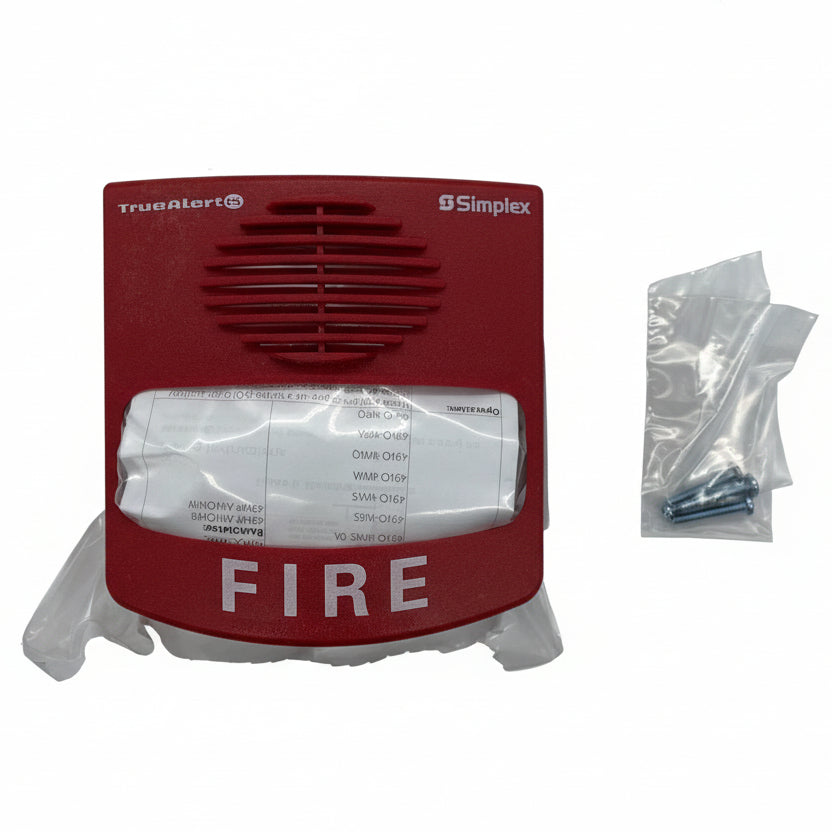

Individually addressed and supervised, the Simplex 49AV-WRF is a TrueAlert ES wall-mount horn/strobe in a red housing with white "FIRE" lettering and a clear lens. It gets power, supervision and control from Simplex IDNAC signaling line circuits, so horn and strobe operate separately on a single two-wire circuit.
Key Features
- Multi-candela xenon strobe: 15/30/75/110/135/185 cd, set by jumper or from the control unit, with synchronized 1 Hz flash
- Horn patterns: Temporal Code 3, Temporal Code 4, March Time or continuous; high/low output selectable
- Self-Test mode: on-board sensors check strobe and horn output and report status to the FACU
- Magnet Test diagnostics and an appliance LED that can indicate polling or address
- Class B circuits can be T-tapped; separate mounting plate allows pre-wiring
- Mounts on single-gang, double-gang or 4 in. square boxes, flush or surface
Specifications
-
Manufacturer: Simplex
-
Part Number: 49AV-WRF
-
Series: TrueAlert ES addressable
-
Color / Marking: Red housing, "FIRE" lettering, clear lens
-
Mounting: Wall
-
Operating Voltage: 23–31 VDC (special application), from 29 VDC regulated IDNAC SLC
-
Candela: 15/30/75/110/135/185 cd
-
Sound Output: 90.1 dBA steady/high reverberant (UL 464) @ 10 ft
-
Dimensions: 5 1/8" H x 5" W x 2 5/8" D with cover
-
Operating Temperature: 32°F to 122°F (0°C to 50°C)
-
Certifications: Strobe UL 1971/ULC S526; horn UL 464/ULC S525; CSFM 7125-0026:0373; FM Approved
Compatibility
Compatible with Simplex IDNAC SLC controllers: 4100ES with EPS+ or EPS power supply, 4009 IDNAC Repeater, 4007ES with IDNAC notification and 4010ES with ESS Enhanced System Supply. Maximum of 127 addresses (139 unit loads) per SLC.
Documents
FAQ
Which panels support the 49AV-WRF?
Simplex control units with IDNAC signaling line circuits, such as the 4100ES with EPS+ or EPS power supply, the 4009 IDNAC Repeater, the 4007ES with IDNAC notification and the 4010ES with the ESS supply.
Is the mounting plate included?
Yes for this model. The 49AV-WRF ships as a complete appliance; only the 49AV-APPLW appliance-only version needs a separate 49MP mounting plate and 49AVC cover.
Can the strobe and horn be controlled separately?
Yes. Horn and strobe operate separately on the same two-wire IDNAC circuit, and candela can be set by jumper or from the control unit.
Is there a surface mount skirt?
Yes. The 4905-9937 red surface mount adapter skirt covers surface mounted electrical boxes.
