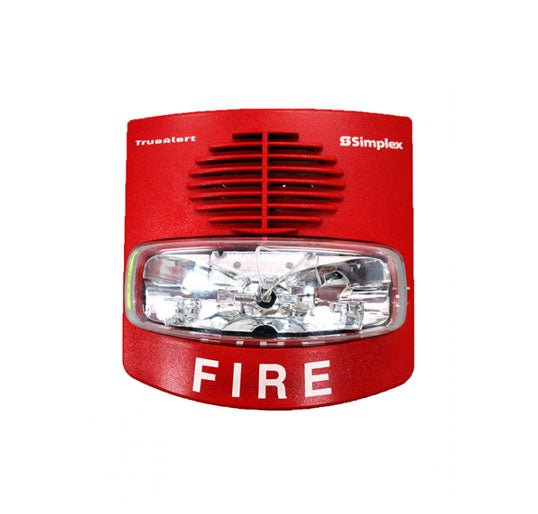

Simplex 49AV-WRF-BA — TrueAlert ES addressable wall-mount horn/strobe, red with FIRE lettering. Factory P/N 07431068.
TrueAlert ES appliances are individually addressable on the IDNAC signalling line circuit, which is the practical difference from a conventional horn/strobe: each device is supervised and controlled by itself, candela is set from the panel rather than by a switch on the back plate, and the panel can self-test the appliance without anyone climbing to it.
- Addressable audible/visible appliance, supervised and controlled over the 2-wire IDNAC SLC
- Operating voltage 23 to 31 VDC (Special Application)
- One unit load = 0.8 mA FACU current; up to 127 addresses per SLC, 139 unit loads maximum
- Multi-candela xenon strobe, synchronised 1 Hz flash rate, intensity programmable from the panel or jumper-selected: 15, 30, 75, 110, 135 or 185 cd
- Built-in Self-Test and Magnet Test diagnostics
- Red housing, FIRE lettering, wall mount
Because candela is panel-programmable, confirm the setting against the approved drawings after installation — the appliance does not advertise its own setting the way a rotary-switch appliance does.
