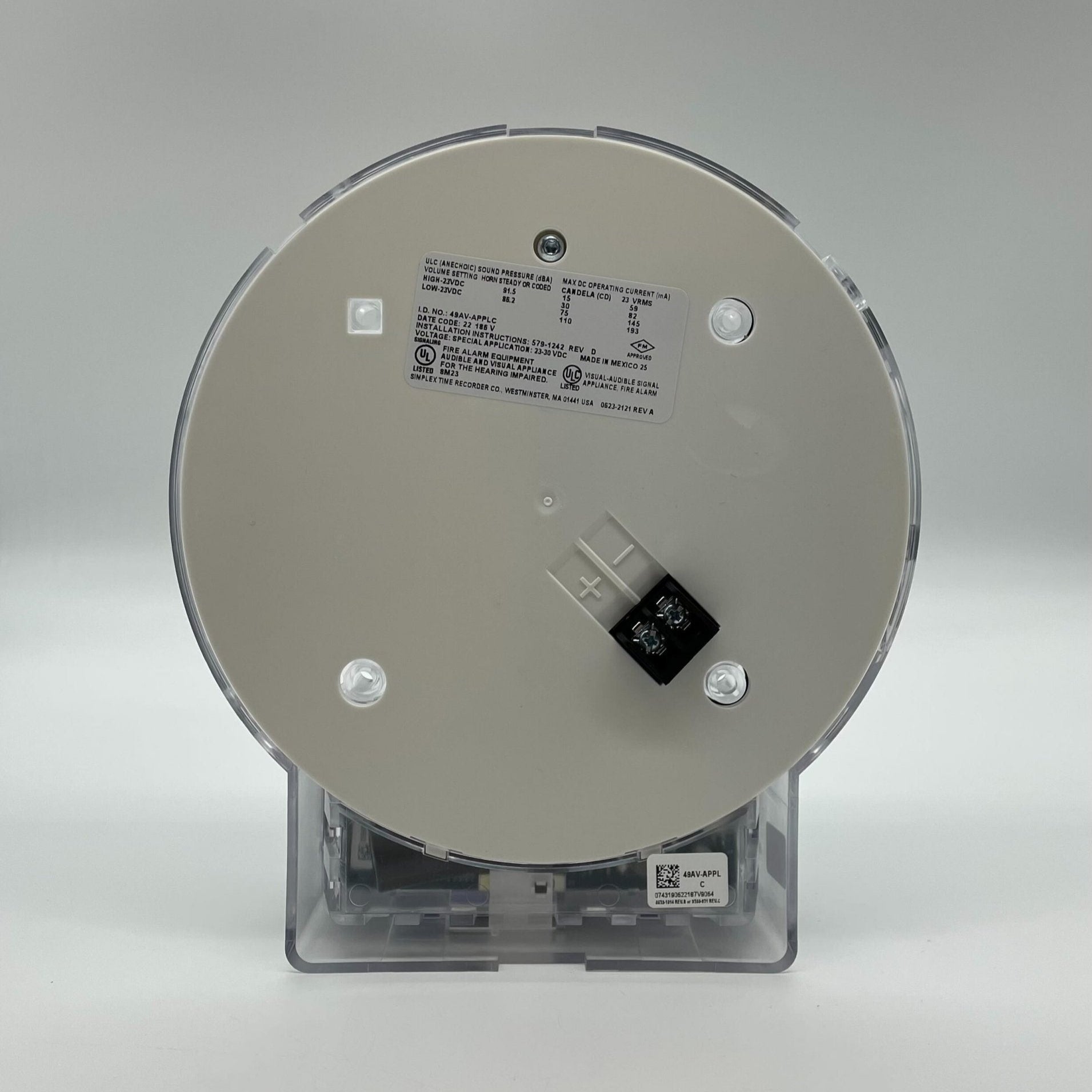

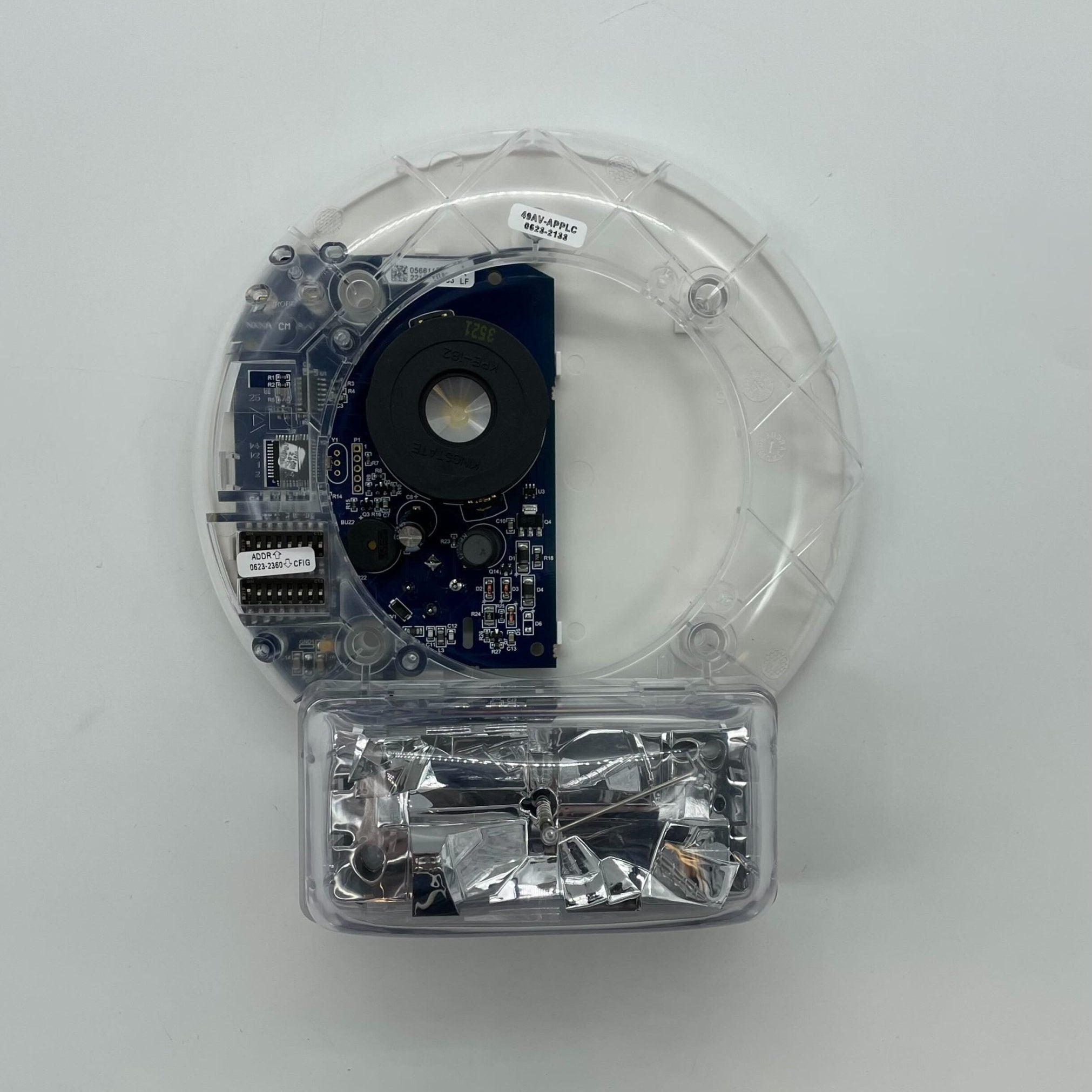

Simplex 49AV-APPLC — TrueAlert ES individually addressable ceiling mount horn/strobe with a clear lens, supplied as the appliance only.
Read the order code before buying this one. It ships with no cover, so nothing on it reads FIRE or ALERT and no colour is set until a cover from the 49AVC-C range is added; Simplex heads that table "Separate Covers, required when ordering model 49AV-APPLC". Power, supervision and control come from an IDNAC signalling line circuit.
- Strobe panel-programmable or jumper selected as 15, 30, 75 or 110 cd, 1 Hz flash
- Maximum RMS current at 23 to 30 VDC: 67, 95, 187 and 248 mA at those settings
- Horn 89.0 dBA steady high at 23 V by UL 464 reverberant test
- 23 to 30 VDC special application; one unit load; 127 addresses per SLC
- 32°F to 120°F; terminals take 18 AWG to 12 AWG
- Strobe listed to UL 1971 and ULC S526, horn to UL 464 and ULC S525
Covers include 49AVC-CRFIRE, 49AVC-CWFIRE, 49AVC-CRALT and blank 49AVC-CK. 49AVH-APPLC is the high-candela unit at 110, 135 and 185 cd; 49AV-APPLW is the wall version, which needs a 49MP mounting plate as well as a cover.
