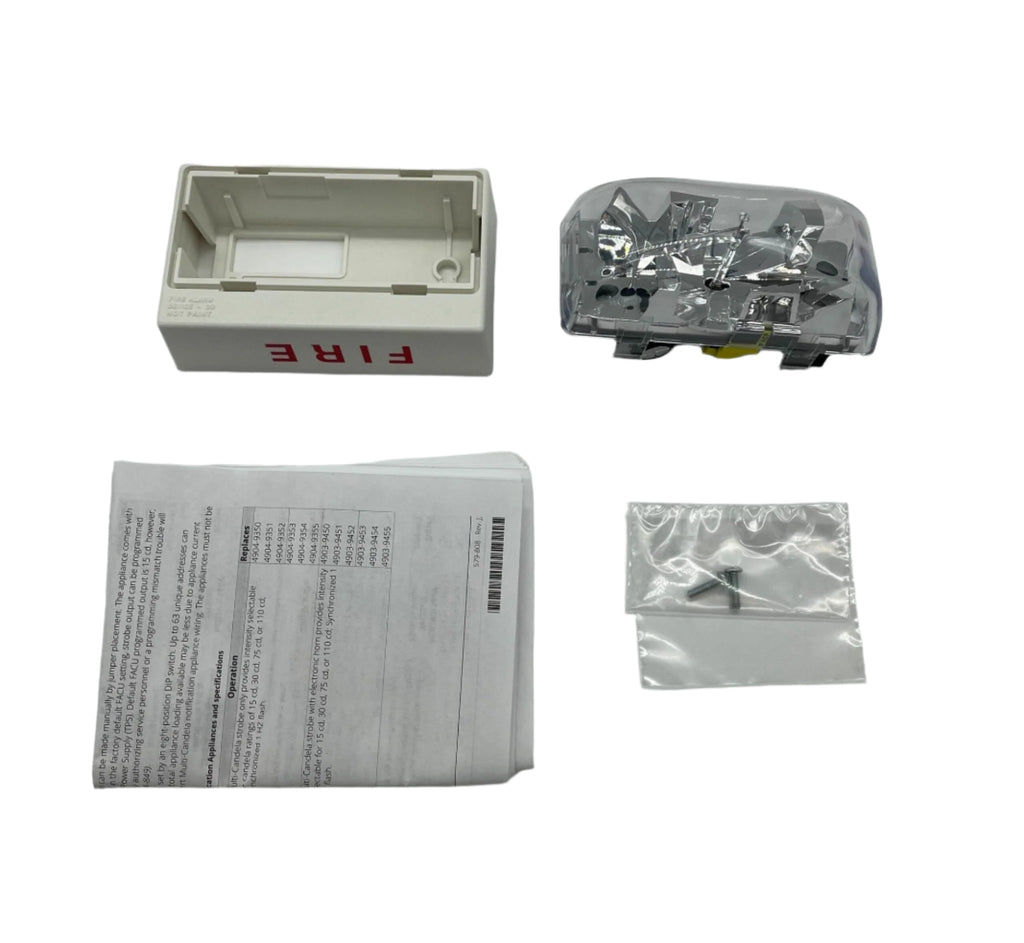

Simplex 4906-9204 MC Truealert V/O Ceiling Mount White
Key Features
- Multi-candela xenon strobe with synchronized 1 Hz flash rate and with intensity programmable from the control panel or jumper selected as 15, 30, 75, or 110 cd
- Advanced addressable notification controlled by IDNAC SLCs that supply regulated 29 VDC that enables strobes to operate with lower current even under battery backup
- Wiring supervision to each strobe that enable T-tapped connections for Class B circuits to simplify wiring. Class A circuits require in/out wiring
- TrueAlert Device Reports at the control panel detailing appliance point ID, custom label, type, and candela setting
- Magnet test diagnostics to assist checkout and testing of appliances and wiring
- Compatibility with ADA requirements
- Compatibility with legacy TrueAlert addressable systems for upgrade and replacement
- You can select the appliance LED to display each polling cycle to indicate appliance supervision
Documents & Downloads
FAQ
Which candela settings are available?
15, 30, 75 or 110 cd, programmed from the control panel or selected by jumper.
Which Simplex panels can drive it?
IDNAC SLCs on the 4100ES with EPS+ or EPS power supply, the 4009 IDNAC repeater, the 4007ES with IDNAC notification and the 4010ES with ESS supply.
What is needed for surface ceiling mounting?
The 4905-9910 ceiling surface mount adapter plate. The 4905-9926 red wire guard with mounting plate is available for semi-flush or surface boxes.
How much current does it draw?
At 23 VDC on an IDNAC SLC: 60 mA at 15 cd, 95 mA at 30 cd, 212 mA at 75 cd and 277 mA at 110 cd.
