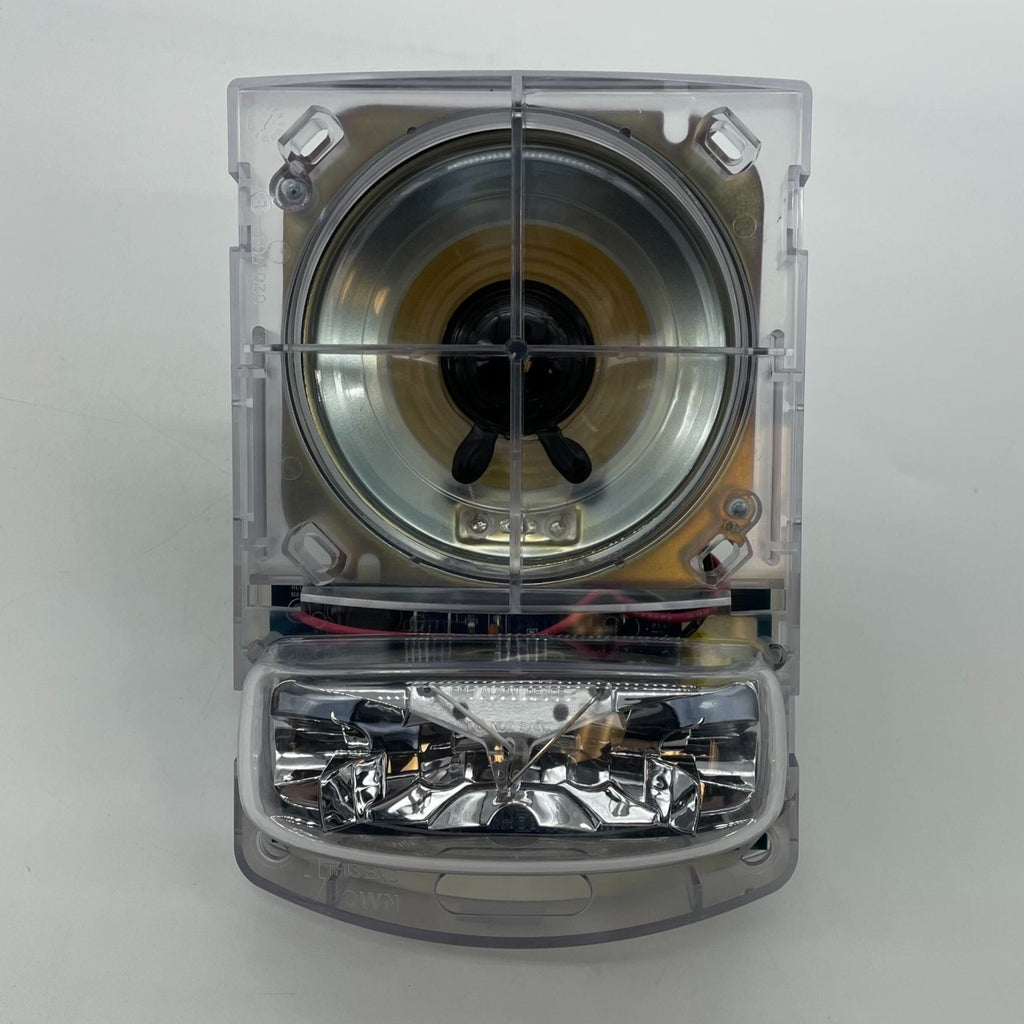

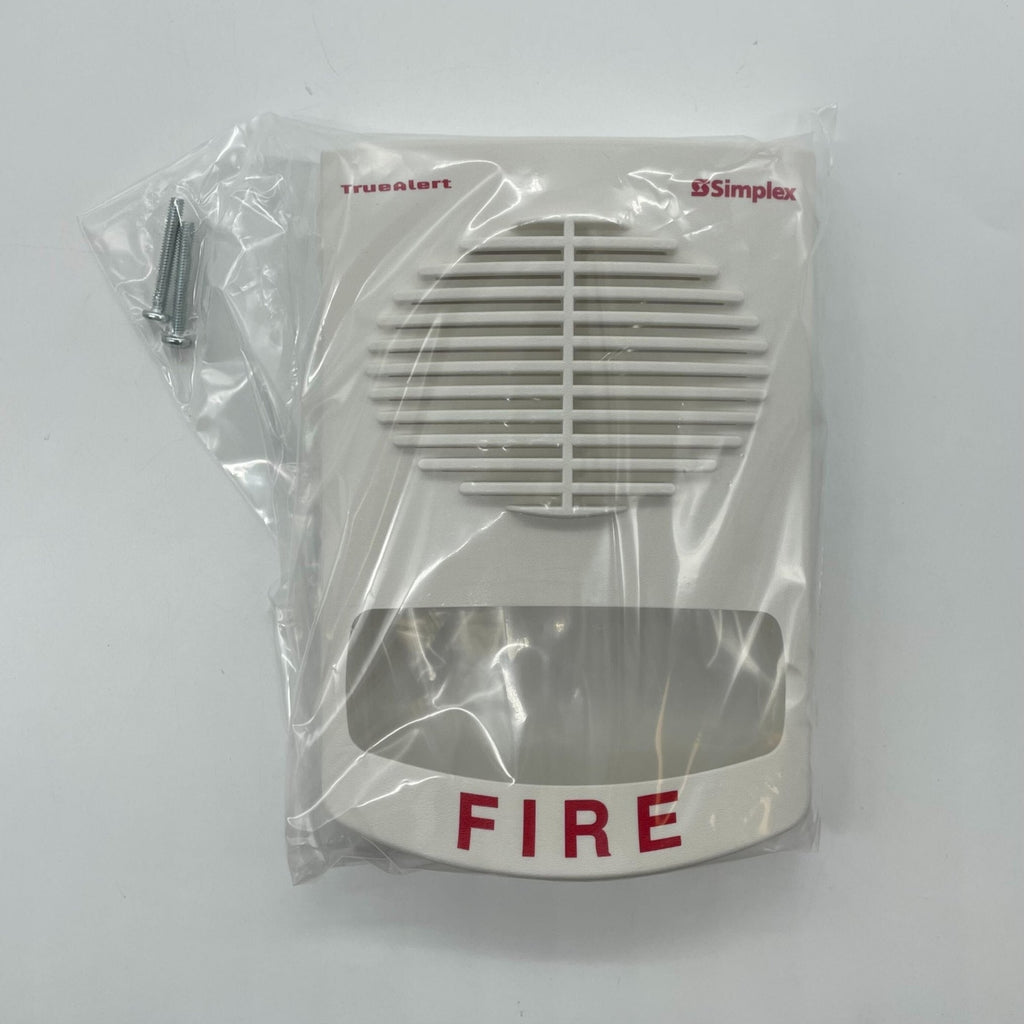

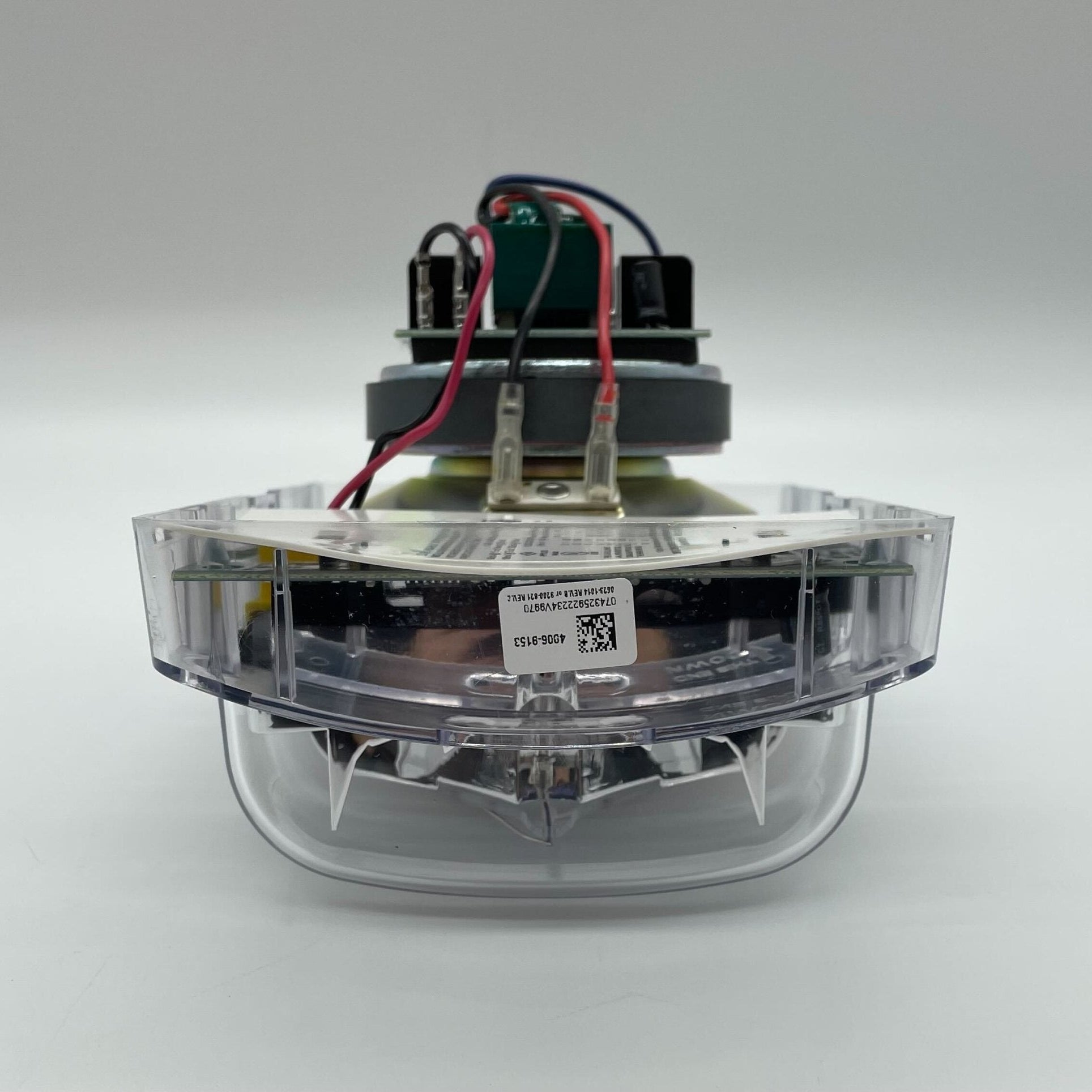

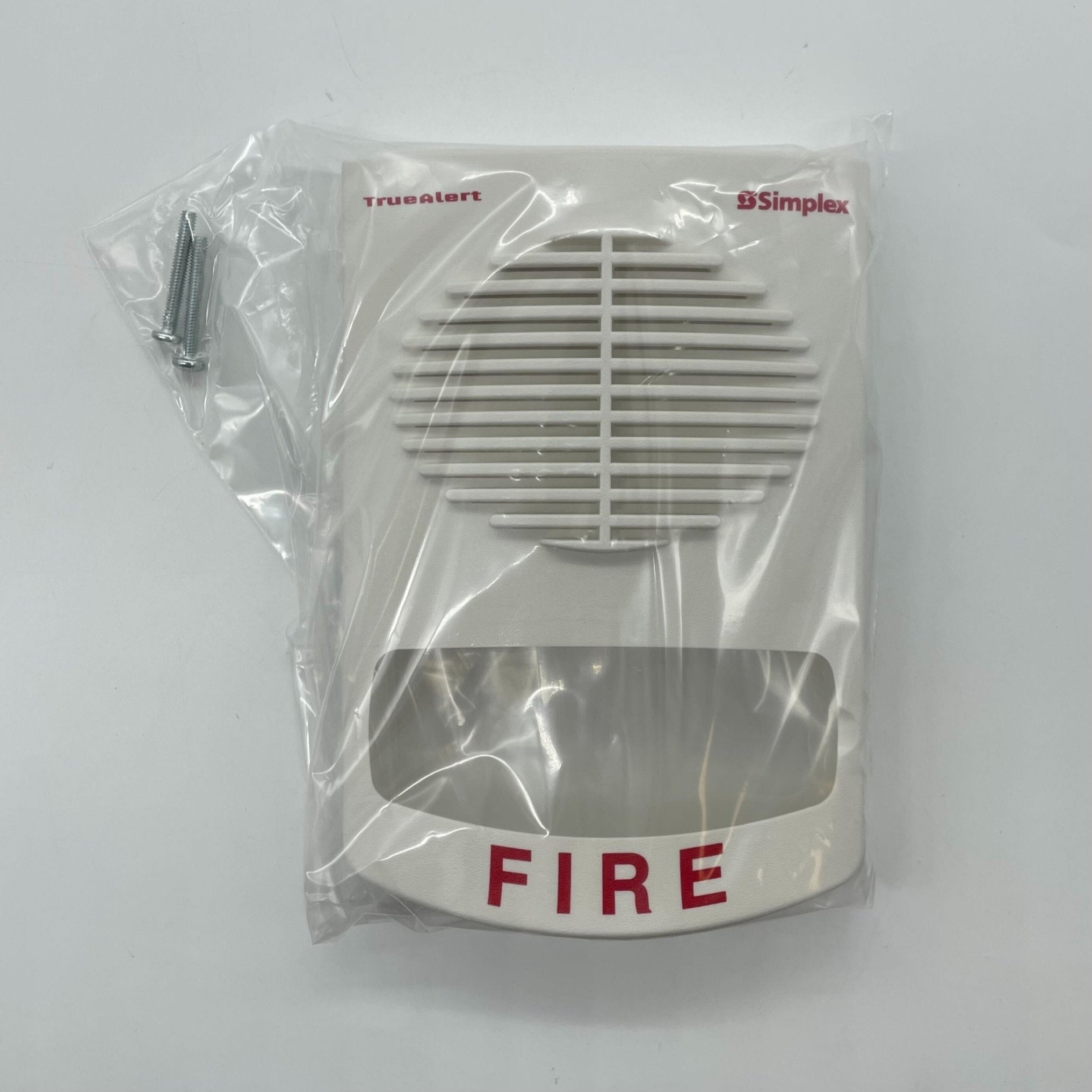

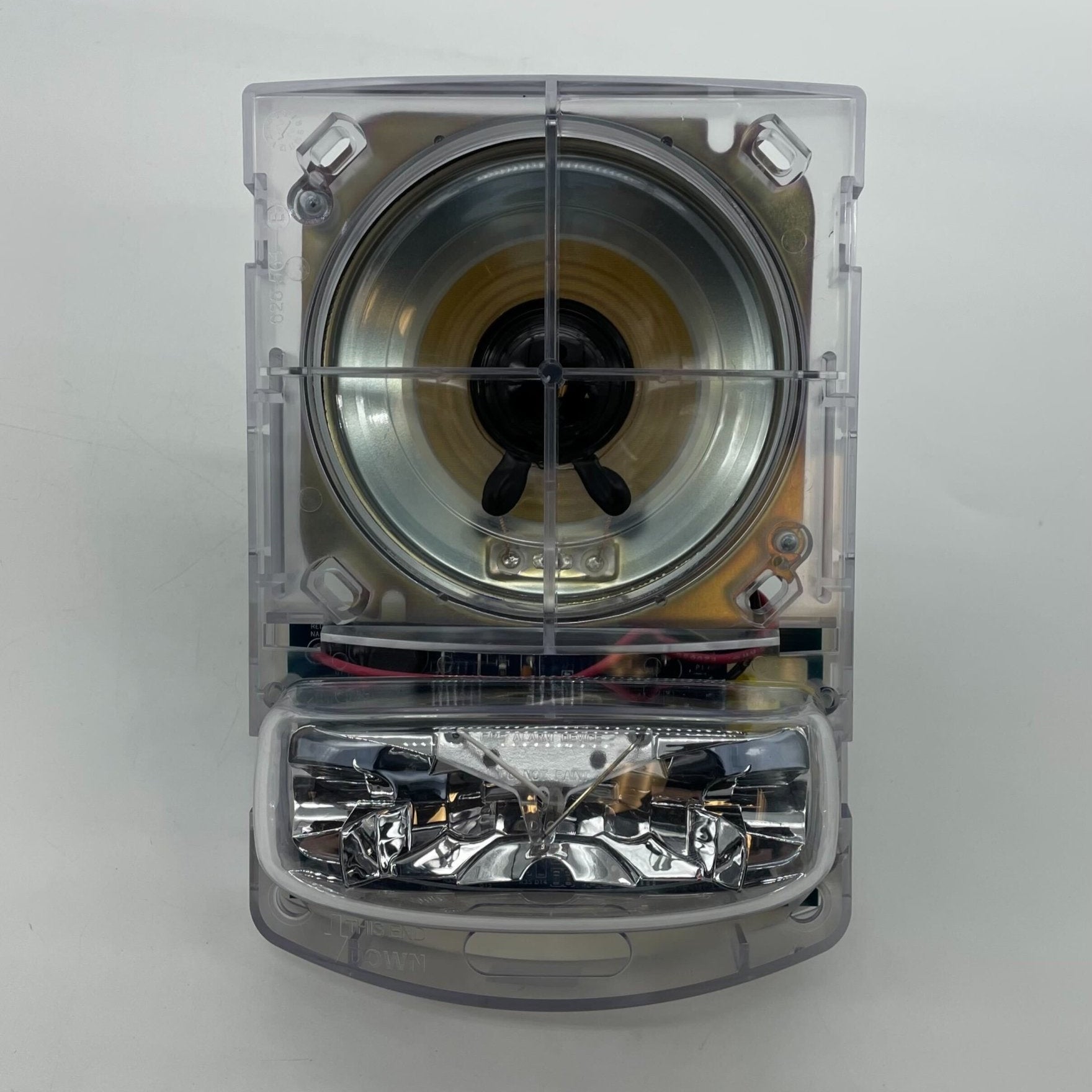

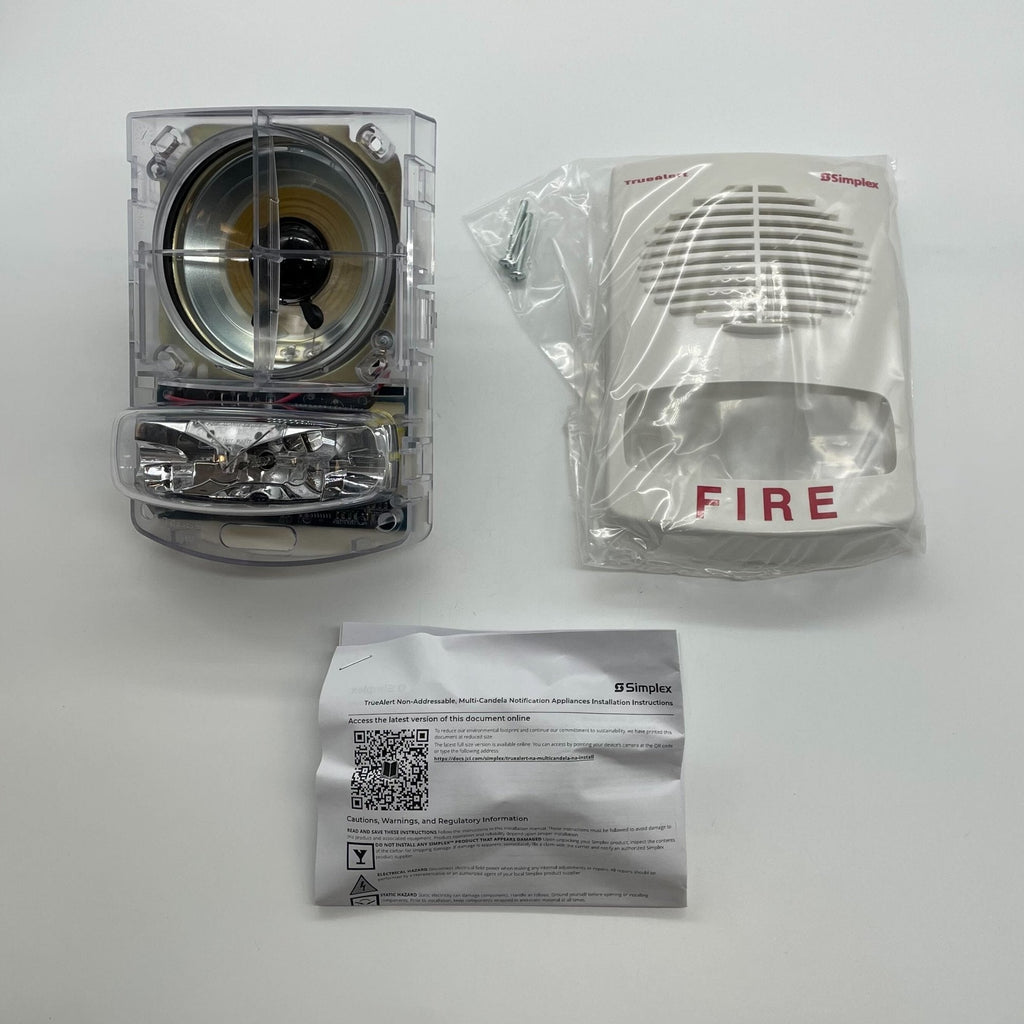

Simplex 4906-9153 — wall mount TrueAlert speaker with multi-candela synchronized strobe, white housing with red FIRE lettering and a clear lens.

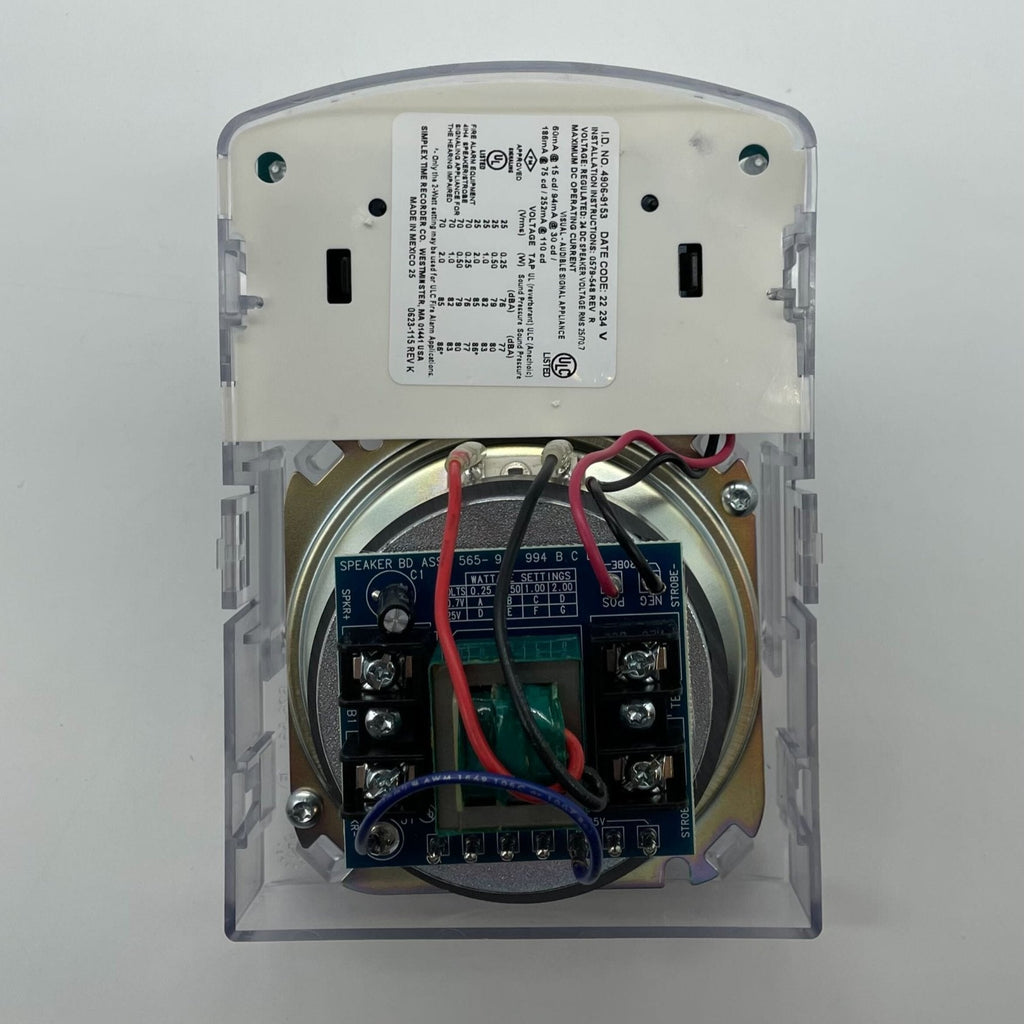

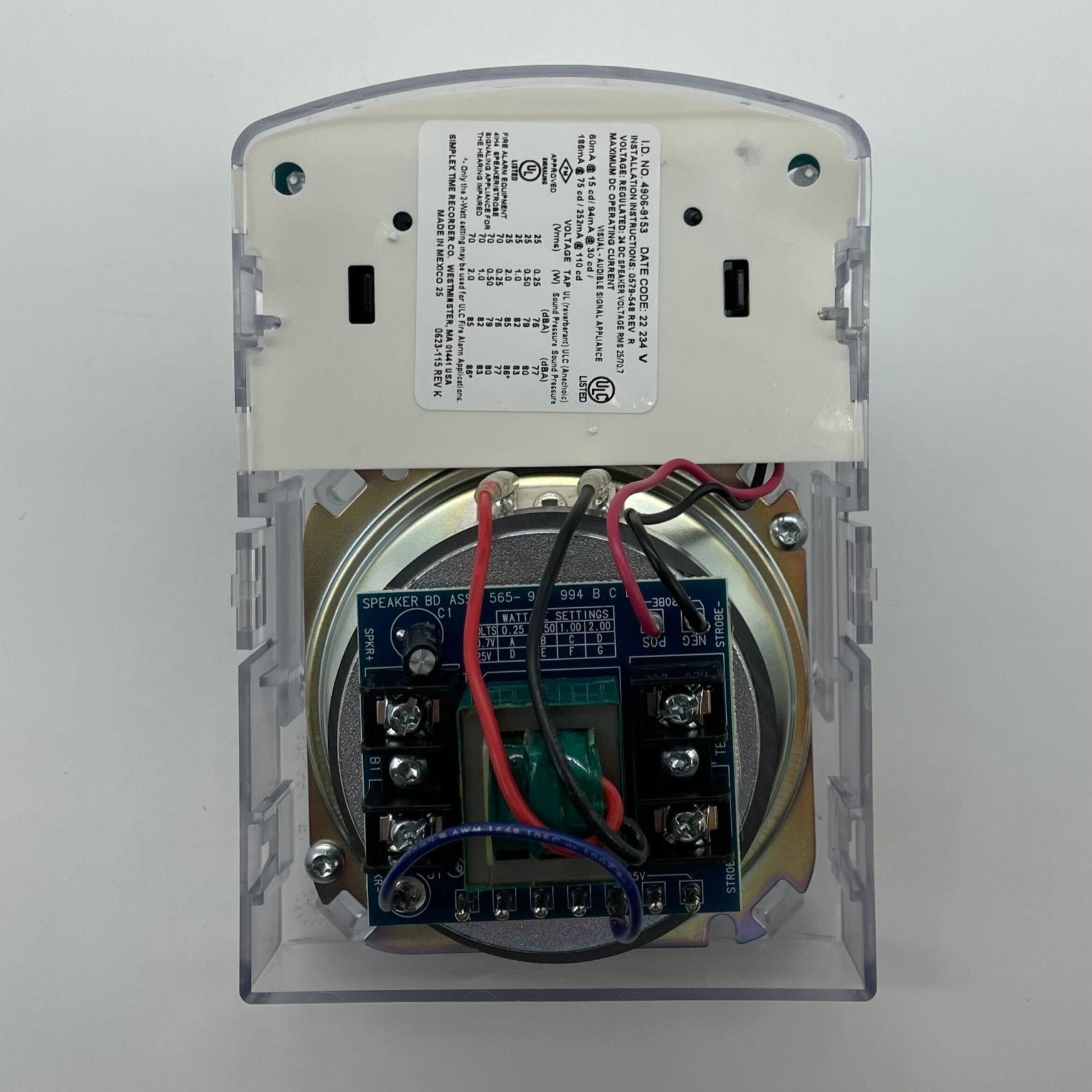

It is a non-addressable appliance. The multi-tapped speaker joins a conventional audio circuit through a capacitor input and is wired separately from the strobe, while the xenon strobe runs from a notification appliance circuit carrying the Simplex synchronization format.
- Strobe selectable at 15, 30, 75 or 110 cd; 1 Hz flash, up to 35 synchronized per NAC
- Strobe 24 VDC regulated, 16 to 33 VDC; 40, 63, 124 and 168 mA at 24 VDC
- Speaker taps 1/4, 1/2, 1 and 2 W at 25 VRMS or 70.7 VRMS
- At 10 ft: 76, 79, 82 and 85 dBA reverberant per UL 1480; 77, 80, 83 and 86 dBA anechoic per ULC-S541
- 7-1/4 × 5 × 2-5/8 in. (184 × 127 × 67 mm); 4 in. square box with extension
- 32 to 122 °F; UL and ULC certified
4906-9151 is the identical appliance in red with white lettering, and covers 4905-9996 and 4905-9997 convert the color. Do not carry figures over from the ceiling models such as 4906-9154 and 4906-9157, whose strobes draw 50, 83, 155 and 211 mA at 24 VDC.
Documents
FAQ
Is the 4906-9153 addressable?
No. It is a non-addressable speaker strobe: the speaker connects to a supervised audio circuit through a capacitor input, and the strobe runs from a NAC using the Simplex synchronization format.
What box does it mount on?
A 4 in. square electrical box with an extension. For a surface-mounted 4 in. square box, Simplex requires the 4905-9947 white adapter skirt.
Can I change the housing color?
Yes. Simplex sells replacement covers: 4905-9996 is red with white FIRE lettering and 4905-9997 is white with red FIRE lettering.
What if my NAC does not provide Simplex sync?
Simplex offers separate strobe synchronization modules, the 4905-9914 for Class B and the 4905-9922 for Class A circuits.
