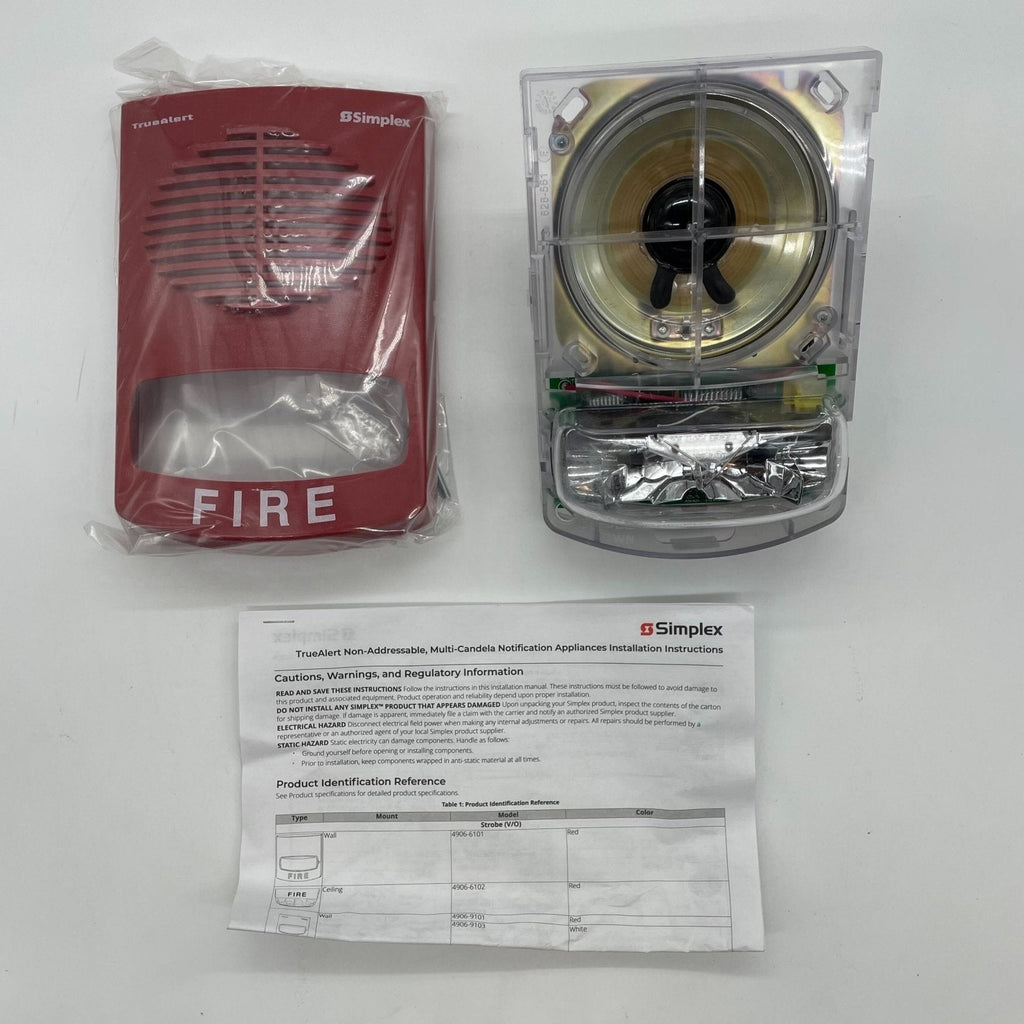

Simplex 4906-9151 is a wall-mount non-addressable TrueAlert speaker/visible appliance with a red housing, white FIRE lettering and a selectable multi-candela strobe.
A speaker/visible appliance carries voice and tone audio and a synchronized strobe in one housing on separately wired circuits, so a single back box covers both the audible and the visible requirement. Tap and candela are set at installation.
Features
- Strobe selectable as 15, 30, 75 or 110 candela by a plug behind the housing
- Speaker taps of 1/4 W, 1/2 W, 1 W and 2 W at 25 VRMS or 70.7 VRMS
- Rated 76, 79, 82 and 85 dBA at those taps at 10 ft, reverberant test per UL 1480
- Xenon strobe, regulated 24 VDC, 16 to 33 VDC, 1 Hz, 35 synchronized strobes per NAC
- Maximum RMS strobe current 60, 94, 186 and 252 mA across the four settings
Specifications
| Model |
4906-9151 |
| Mounting |
Wall |
| Housing |
Red, white FIRE lettering |
| Strobe |
15 / 30 / 75 / 110 cd selectable |
| Speaker taps |
1/4, 1/2, 1 and 2 W; 25 or 70.7 VRMS |
| Size with lens |
7 1/4 in. H x 5 in. W x 2 5/8 in. D |
| Approvals |
UL and ULC certified |
Related models
- The 4906-9153 is the same wall appliance in white with red lettering.
- The 4906-9154 and 4906-9160 are ceiling-mount speaker strobes drawing more current at every setting.
- The 4906-9101 is a wall strobe with no speaker.
Questions
How is candela set? By a plug behind the housing, at 15, 30, 75 or 110 cd.
How many can share a NAC? Up to 35 synchronized strobes per NAC.
