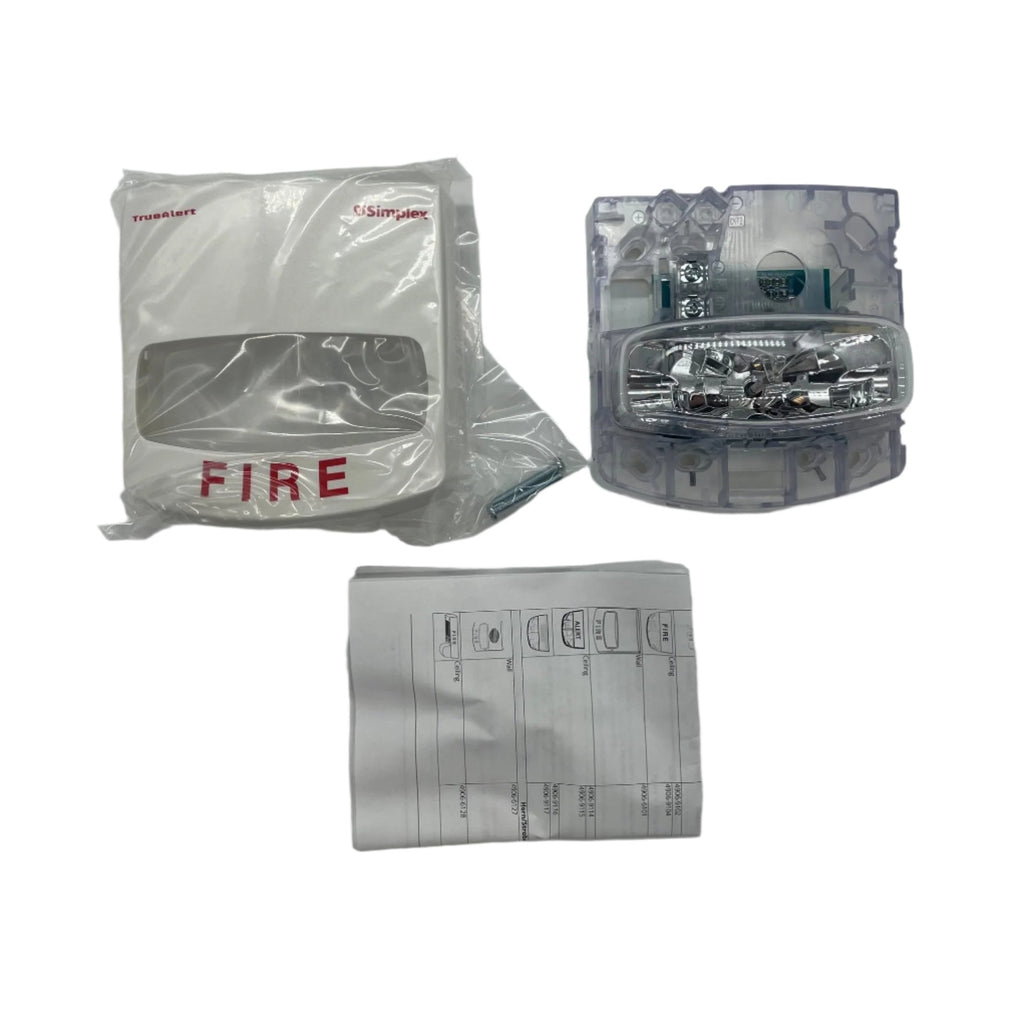

Simplex 4906-9103 TrueAlert Multi-Candela Strobe, Wall-Mount, 15/30/75/110cd, White, "FIRE"
Key Features
- Intensity is selectable as 15, 30, 75, or 110 candela with visible selection jumper secured behind strobe housing
- Operation is compatible with ADA requirements (refer to Installation Reference, Surface or Semi-Flush Wall Mounting)
- Polarized input allows connection to compatible reverse polarity, supervised notification appliance circuit (NAC)
- Regulated circuit design ensures consistent flash output and provides controlled inrush current
- Rugged, high impact, flame retardant thermoplastic housings are available in red or white with clear lens
- Certified to UL 1971 and ULC S526
- Simplex fire alarm control panels with NACs selected to provide strobe synchronization or SmartSync two-wire control
- 4009 IDNet NAC Extenders
Documents & Downloads
Documents
FAQ
Which candela settings does the 4906-9103 have?
15, 30, 75 or 110 cd, selected with a jumper behind the strobe housing, with a synchronized flash rate.
Is it addressable?
No. It is a 24 VDC visible-only appliance for a reverse polarity, supervised notification appliance circuit, and it is SmartSync two-wire control compatible.
Is there a surface mount skirt?
Yes. The 4905-9940 white surface mount adapter skirt (4905-9937 in red) covers 1-1/2 in. deep surface mounted boxes.
What are the other colors and mountings?
The 4906-9101 is the red wall version, the 4906-9102 the red ceiling version and the 4906-9104 the white ceiling version.
