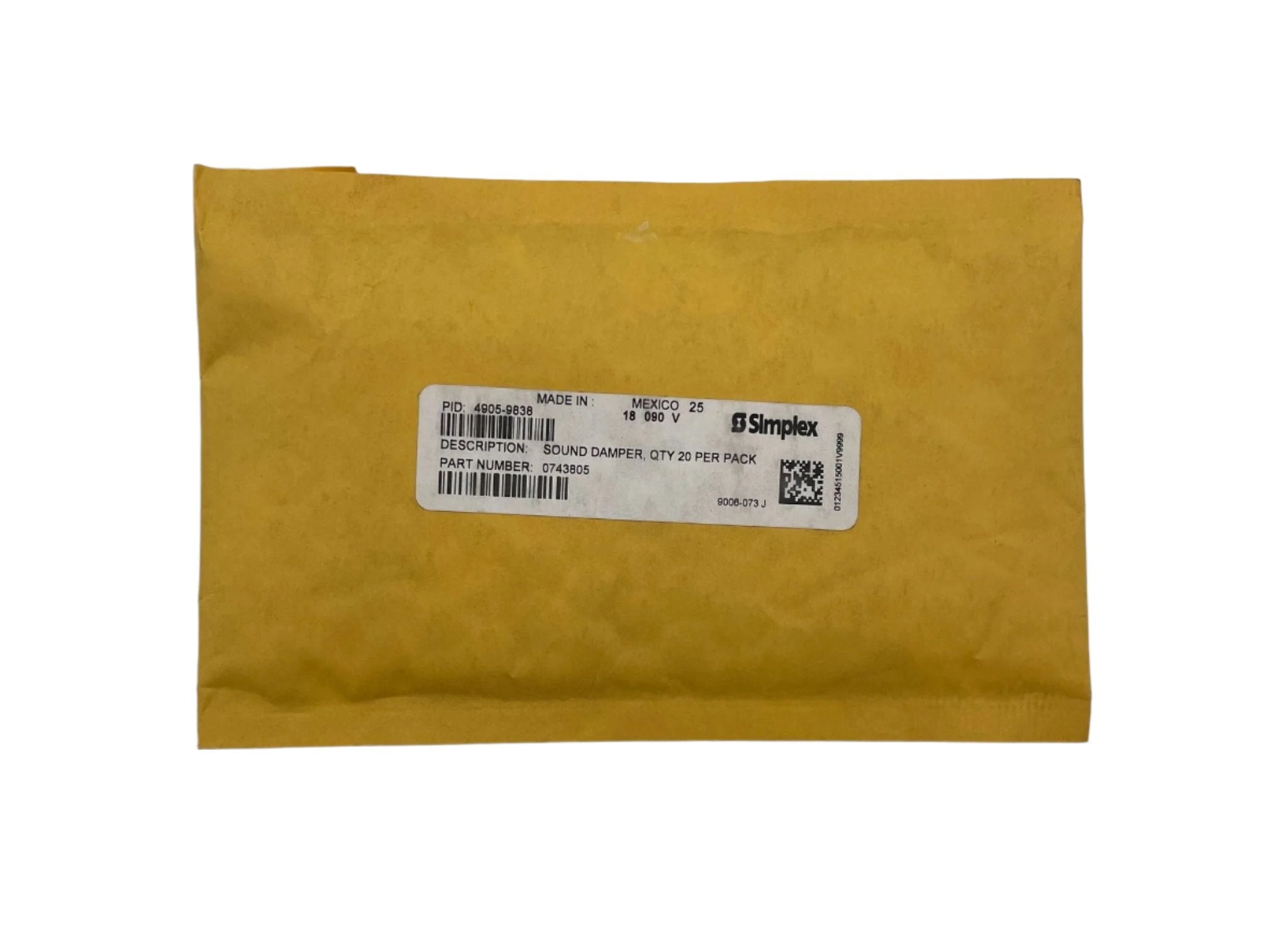

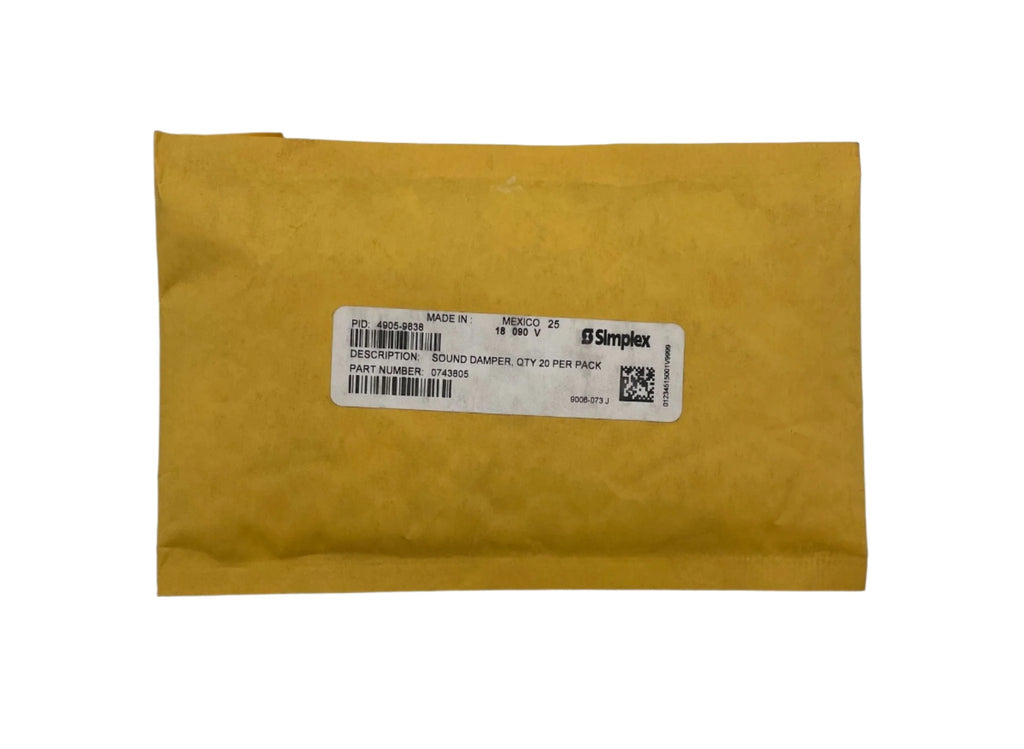

Simplex 4905-9838 is the optional sound damper for TrueAlert non-addressable multi-tone horns and multi-tone horn/strobes, sold in a package of 20. It is an adhesive-backed horn output attenuator applied in the field, for locations that need 5 to 6 dBA less output, such as stairwells, small rooms and highly reverberant areas.
Specifications
| Package |
20 dampers |
| Attenuation |
5 to 6 dBA |
| Size |
1-3/4 in. (44.5 mm) diameter with a 0.31 in. (8 mm) sound opening |
| Installation |
Field installed, adhesive backed |
| Listing |
UL and ULC listed |
Compatibility and installation notes
- Listed as an accessory for the 4901-9856 (red) and 4901-9857 (white) TrueAlert non-addressable multi-tone horns.
- Listed as an accessory for the 4906-9137 (red) and 4906-9138 (white) multi-candela multi-tone horn/strobes.
- After installing a damper, measure the sound level to confirm the area still meets applicable code requirements.
- One unit is a pack of 20, not a single damper.
Documents
Specifications from Simplex data sheets S4901-0014 Rev. 4, 11/2019, and S4906-0013 Rev. 3, 11/2019. Manufacturer specifications are subject to change.
