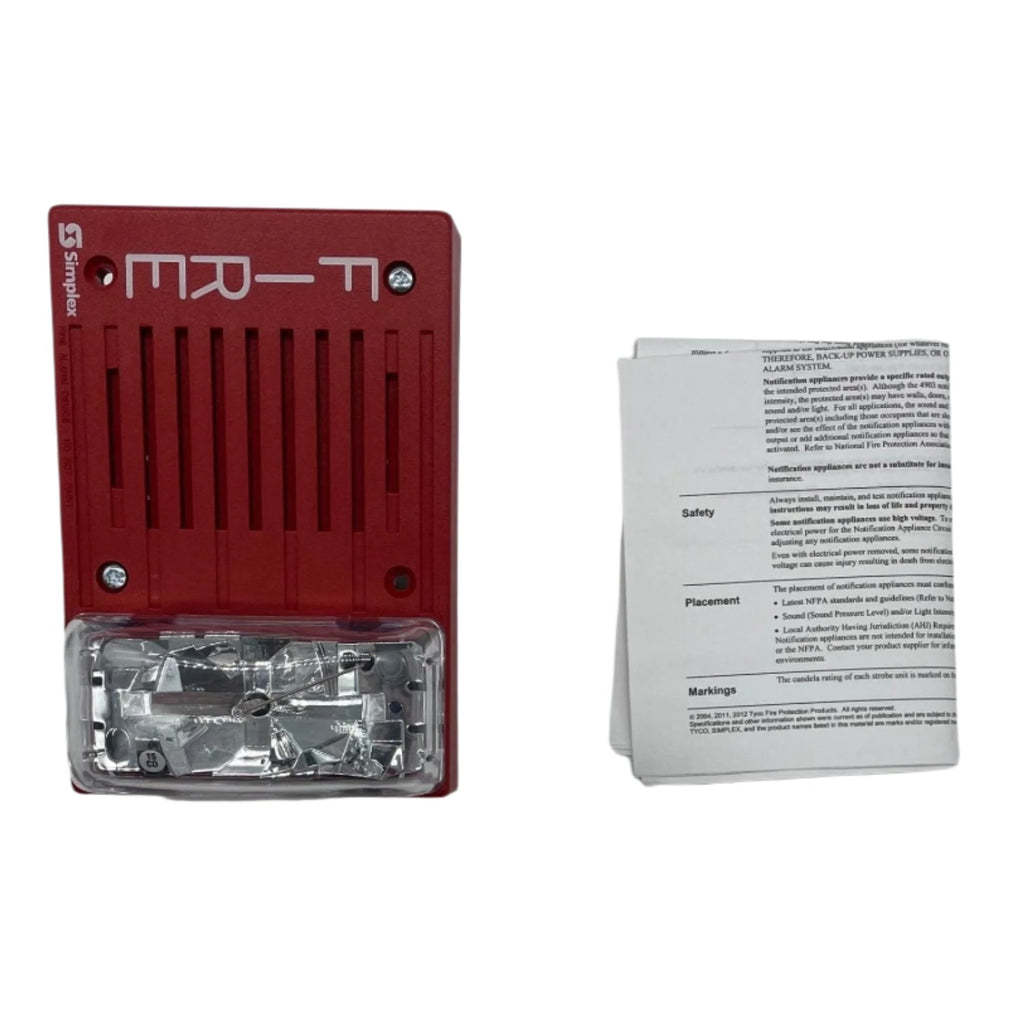

Simplex 4903-9252 is a wall-mount audible/visible notification appliance with an efficient electronic horn and a 15 candela xenon strobe, red housing with white FIRE lettering, for horizontal mounting. It runs on 24 VDC, and the strobe is switch selectable for free-run or synchronized flash.
Strobe wiring terminals are separate from the audible (four-wire), and the horn is diode polarized for reverse polarity supervised notification appliance circuits. The horn's harmonically rich output suits coded or steady operation.
Specifications
| Strobe output |
15 cd, 1 Hz flash rate |
| Strobe voltage |
Regulated 24 VDC (16 to 33 VDC) |
| Strobe current |
90 mA max RMS; 60 mA at 24 VDC |
| Synchronization |
Free-run or synchronized; up to 35 synchronized strobes per NAC |
| Horn voltage |
16 to 33 VDC |
| Horn current |
13 mA at 16 VDC, 16 mA at 33 VDC |
| Horn output (UL 464, 10 ft) |
80.6 dBA at 16 VDC, 84.8 dBA at 33 VDC |
| Frequency |
2400 to 3700 Hz sweep, modulated at 120 Hz |
| Dimensions |
4-3/4 x 6-7/8 x 2-5/8 in. D with lens; 11/16 in. depth into box |
| Wiring |
In/out terminals, 18 to 12 AWG |
| Operating temperature |
32° to 120°F (0° to 49°C) |
| Certifications |
UL 1971 (strobe), UL 464 (horn) |
Related models
- 4903-9253 and 4903-9254: higher candela horizontal models in the same series
- 4903-9255: vertical wall mount model
Documents
FAQ
What candela is the 4903-9252?
It is the 15 cd model, red, for horizontal wall mounting.
How much current does the strobe draw?
Maximum RMS current at 15 cd is 90 mA across the 16 to 33 VDC range; reference current is 80 mA at 18 VDC and 60 mA at 24 VDC. The horn adds 13 mA at 16 VDC to 16 mA at 33 VDC.
Can the strobe be synchronized?
Yes. The strobe is switch selectable for free-run or synchronized flash at 1 Hz, with up to 35 synchronized strobes per NAC.
Why is it four-wire?
The strobe wiring terminals are separate from the audible, so the horn and strobe can be on separate circuits.
