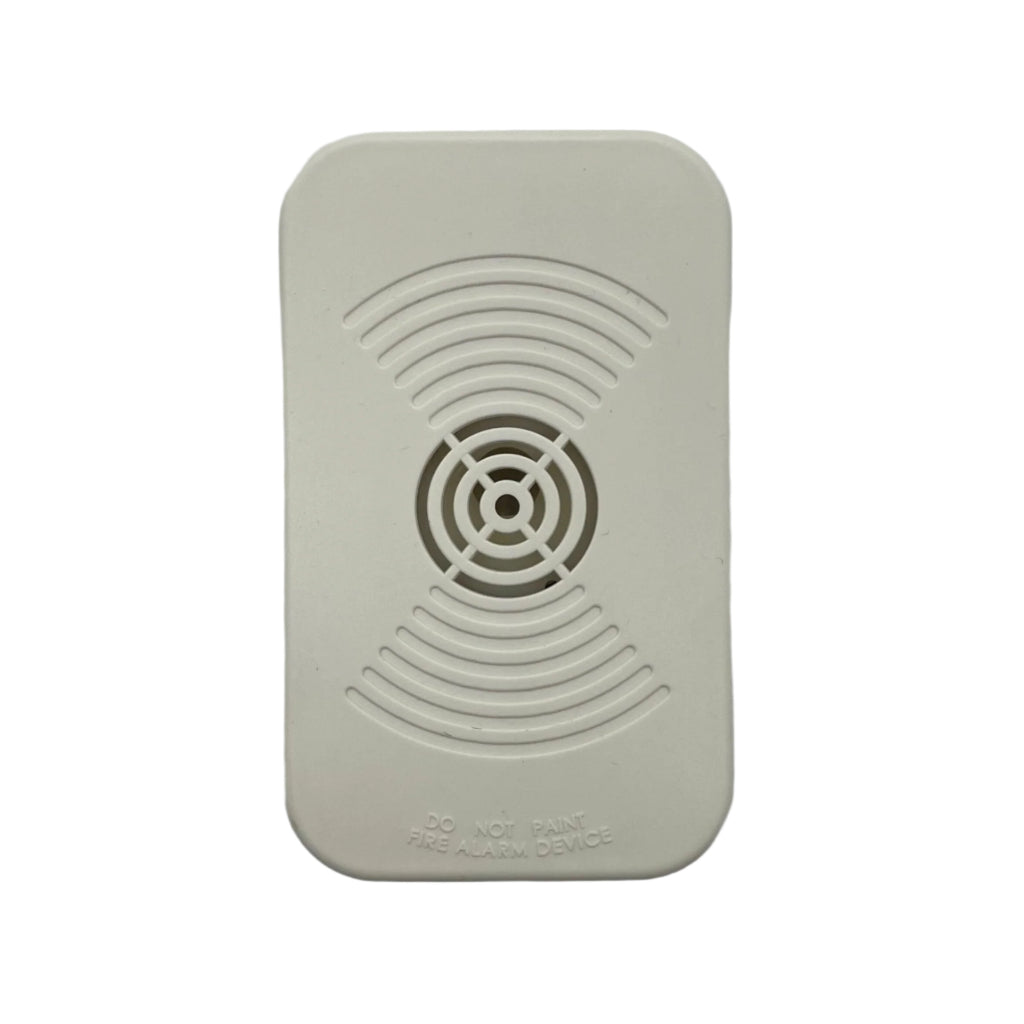

Simplex 4901-9859 — white non-addressable mini-horn for SmartSync two-wire operation.
A mini-horn goes where a full-size appliance will not. This one is built around Simplex SmartSync: horn and strobe share one notification appliance circuit, the horn runs on until silenced while the strobe flashes on until reset, and the panel sets the horn as temporal, march time or continuous independently of the strobes.
- Rated 16 VDC to 33 VDC, 19 mA maximum
- Reverberant chamber test per UL 464 at 10 ft: 79 dBA on high, 68 dBA on low
- Anechoic chamber test per ULC S525 at 3 m: 93 dBA high, 82 dBA low
- 4 1/2 in. H × 2 3/4 in. W × 1 1/4 in. D; mounts to a single gang box, flush or surface
- 32°F to 122°F, 10% to 93% non-condensing; terminals for 18 to 12 AWG, two wires each
- UL Listed to Standard 464, ULC Listed to S525, CSFM 7135-0026:334, FM Approved
4901-9858 is the same mini-horn in red. SmartSync two-wire control comes from a 4006, 4007ES Hybrid, 4008, 4010, 4010ES, 4100ES or 4100U control unit, a 4009 IDNet NAC extender, or the 4905-9938 SmartSync Control Module.
