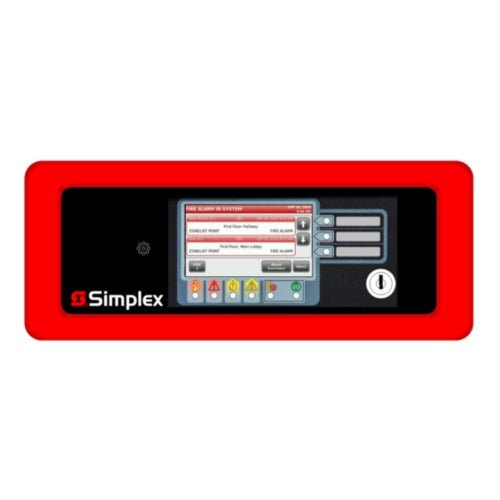

Simplex 4606-9202 — remote color touchscreen LCD annunciator, red trim, for 4007ES and 4017ES panels.
This puts the panel's own display where the fire department walks in. Instead of a lamp strip naming a zone, the touchscreen shows point status, alarm type and 40-character custom location labels. Data rides on one twisted pair shared with other annunciators; 24 VDC power is a separate pull.
- 4.3 in. (109 mm) diagonal color touchscreen, dual language capable
- LEDs for Alarm, Priority 2, Supervisory, Trouble, Alarm Silenced and panel AC power
- 18 to 32 VDC; 45 mA standby, 70 mA display active, 124 mA alarm
- RUI wiring 18 AWG twisted pair, 35 Ω max resistance, 0.58 µF max between conductors
- Class B T-tap 10,000 ft (3,048 m) total, 2,500 ft (762 m) to farthest device
- 13 in. × 5.21 in. × 2 in. (330 mm × 132 mm × 51 mm)
- Up to six touchscreen annunciators per panel
No box ships with it: flush work needs a 5-gang RACO 944 box, surface work the 2975-9461. The 4606-9205 is the platinum-trim twin.
Documents
FAQ
Which panels does the 4606-9202 work with?
Simplex 4007ES and 4017ES fire alarm control panels. Up to six color touchscreen LCD annunciators can be used per panel.
Is a back box included?
No. It mounts flush in a 5-gang RACO 944 electrical box, supplied separately. For surface mounting use the 2975-9461 red surface box; semi-flush boxes are also offered.
How is it wired?
Data runs over a single unshielded twisted pair; separate wiring is required for 24 VDC power.
Is there a version with different trim?
Yes. The 4606-9205 is the same annunciator with platinum trim.
