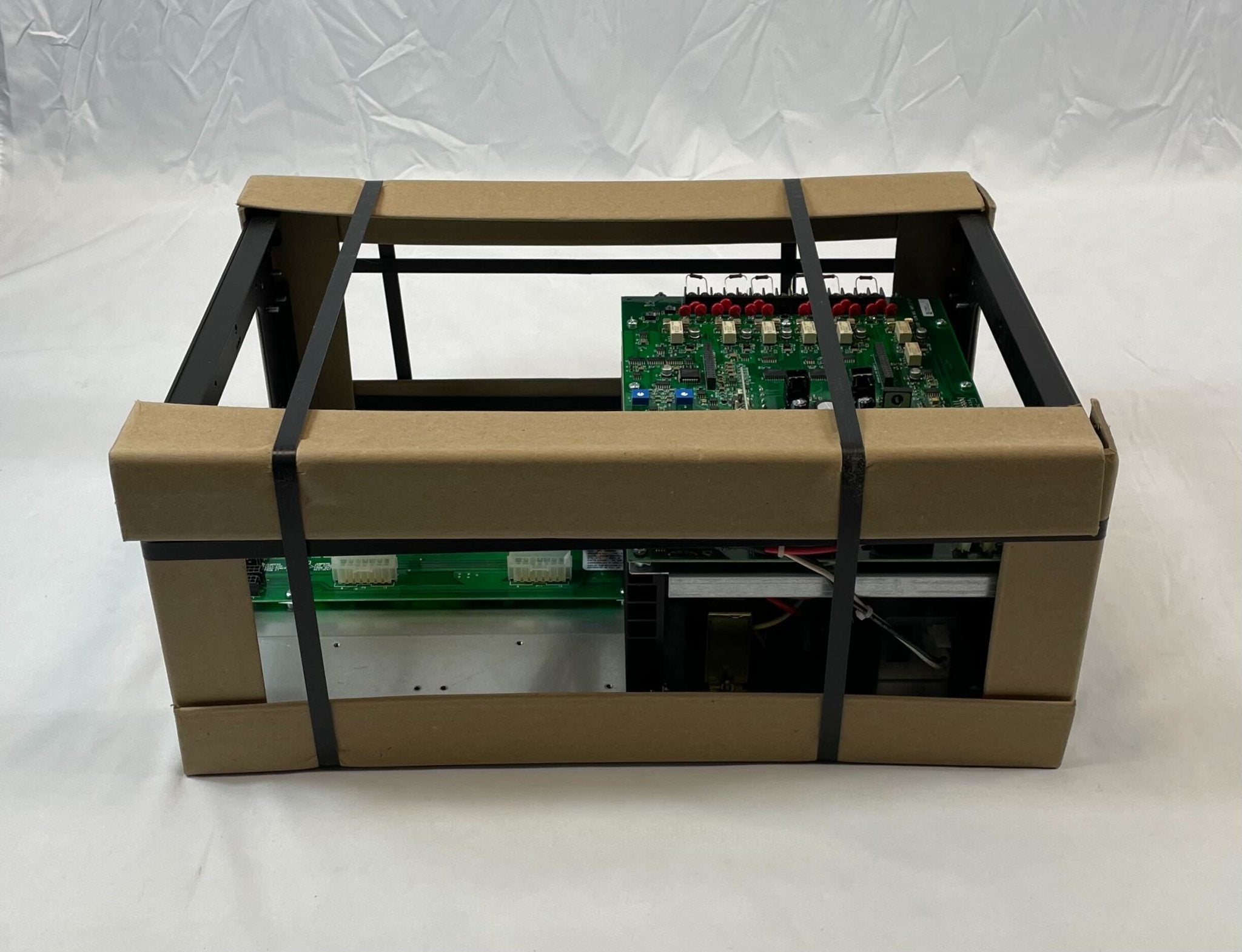

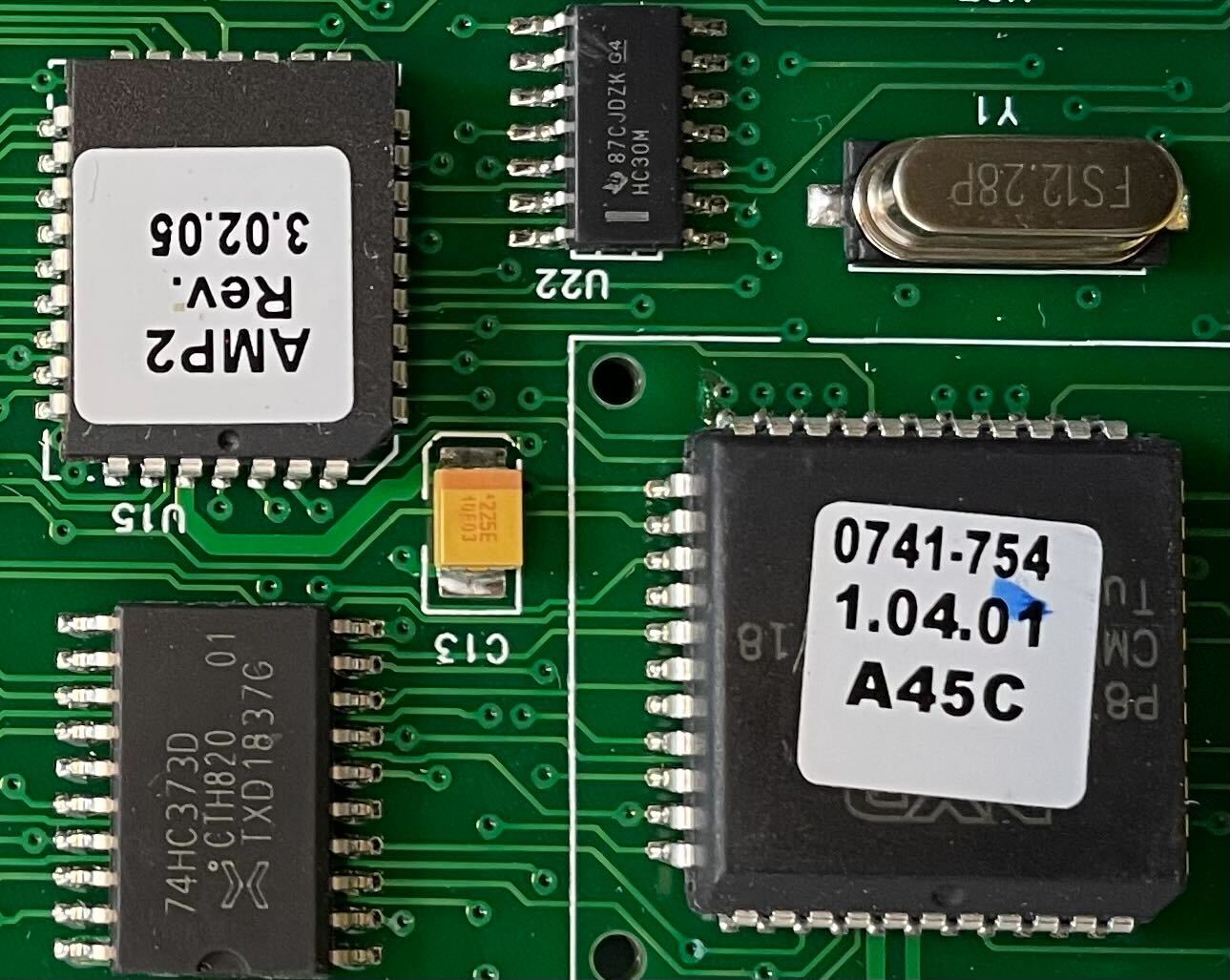

Simplex 4100-9600 — MINIPLEX Basic Transponder bay assembly for 4100ES systems, with power distribution interface and Basic Transponder Interface Module.
A MINIPLEX transponder puts initiating and notification modules at a remote location and links them to a host 4100ES panel over a Remote Unit Interface connection, so one low current run replaces many long field circuits. It is bay equipment, not a finished cabinet.

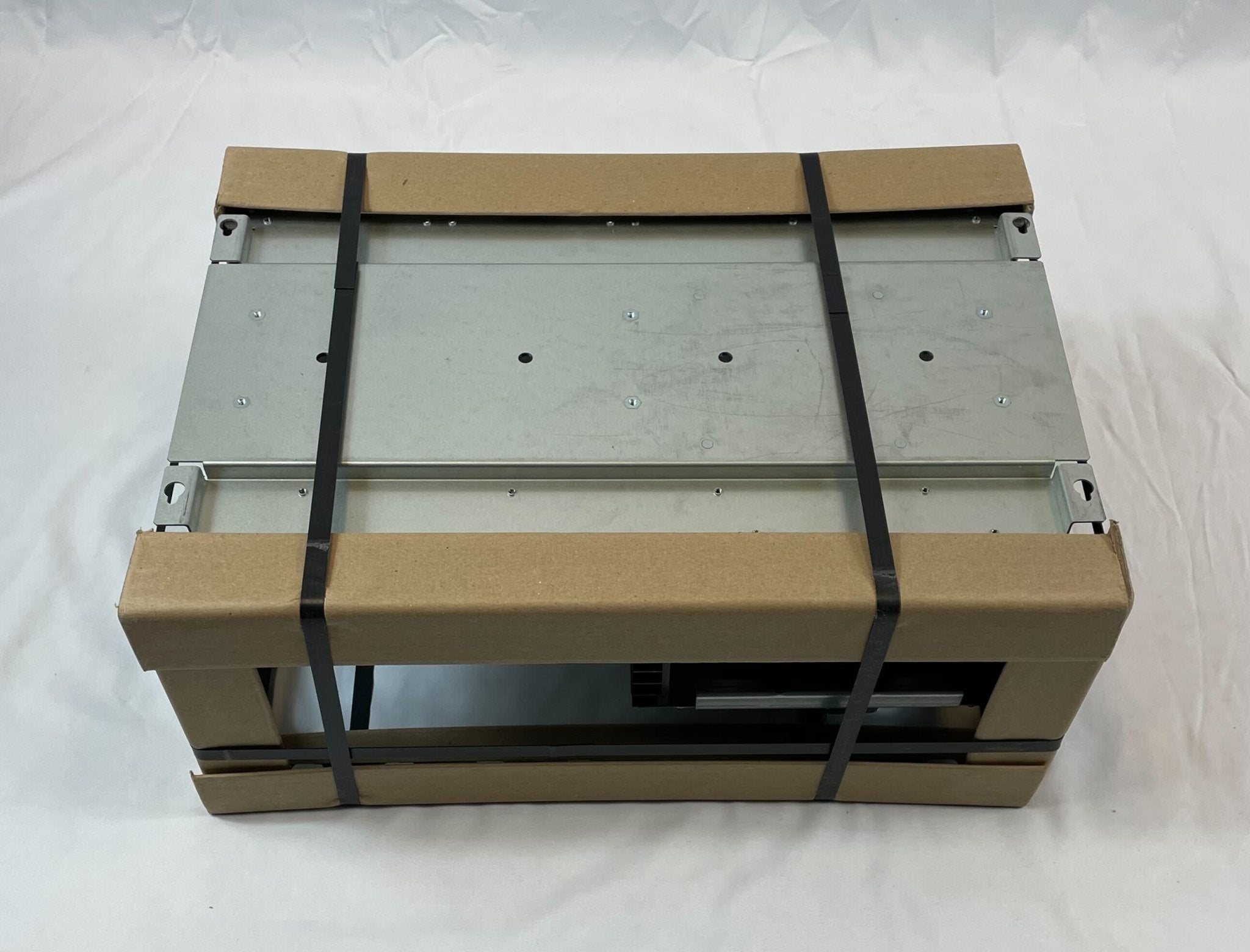

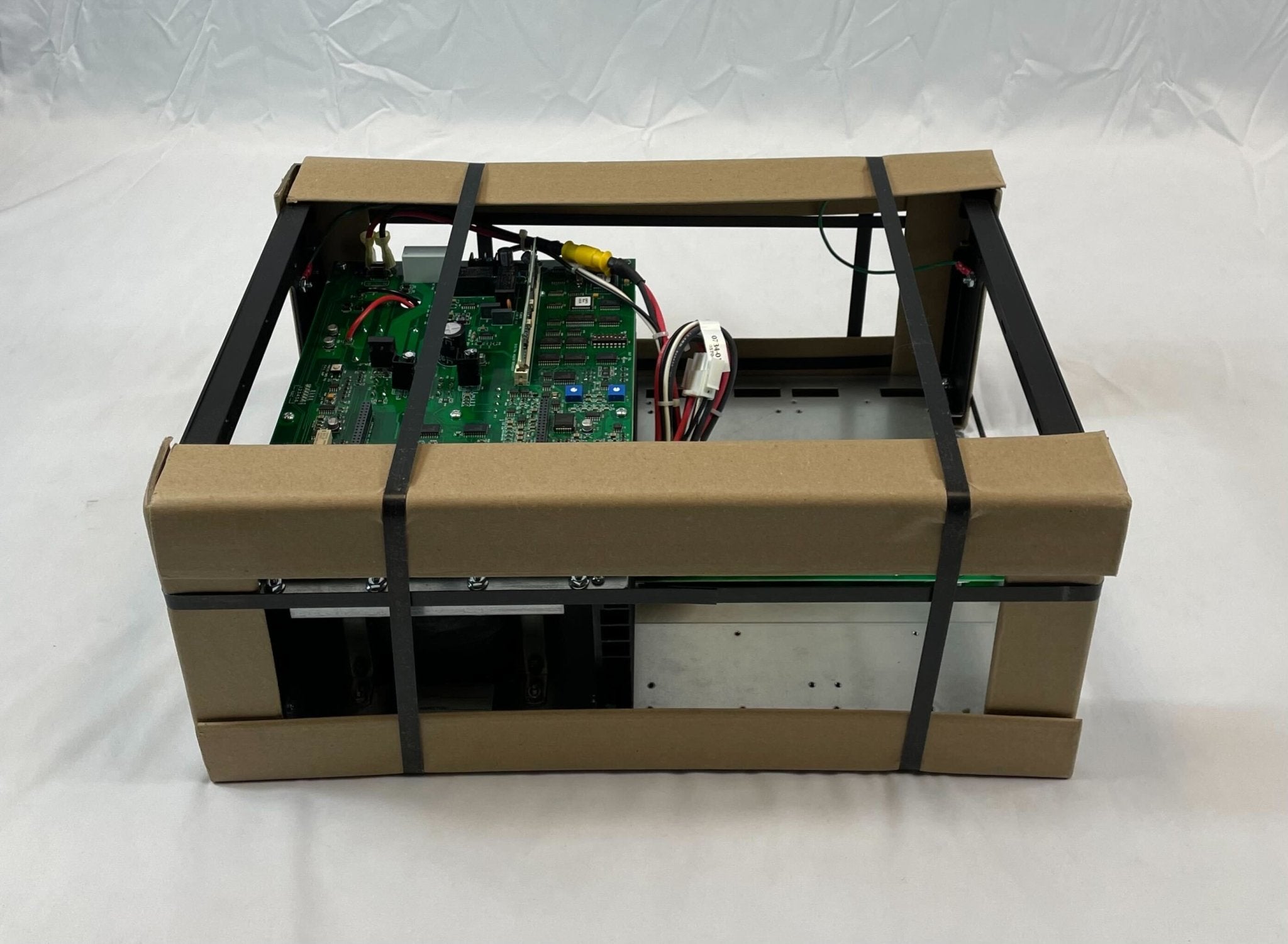

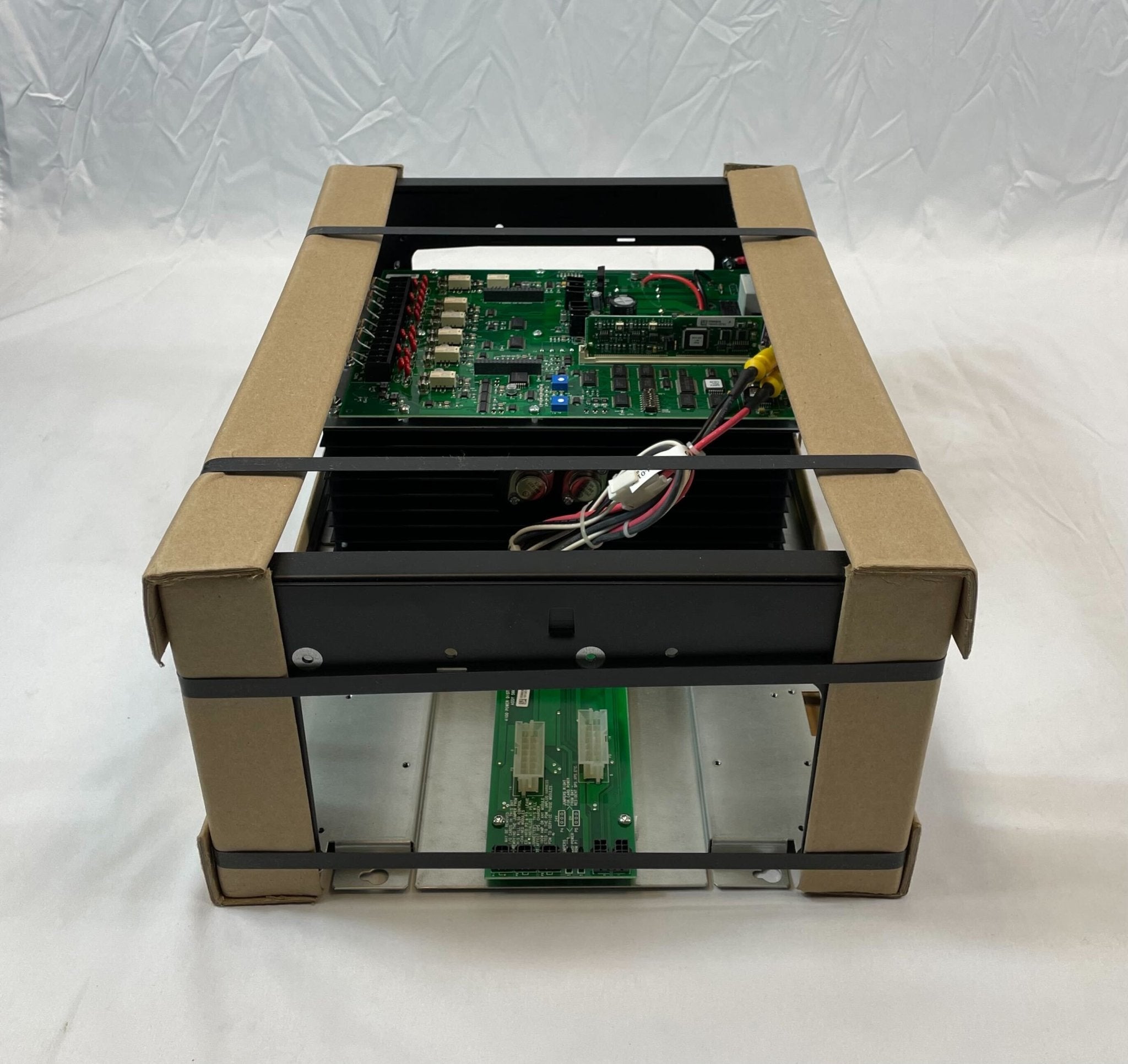

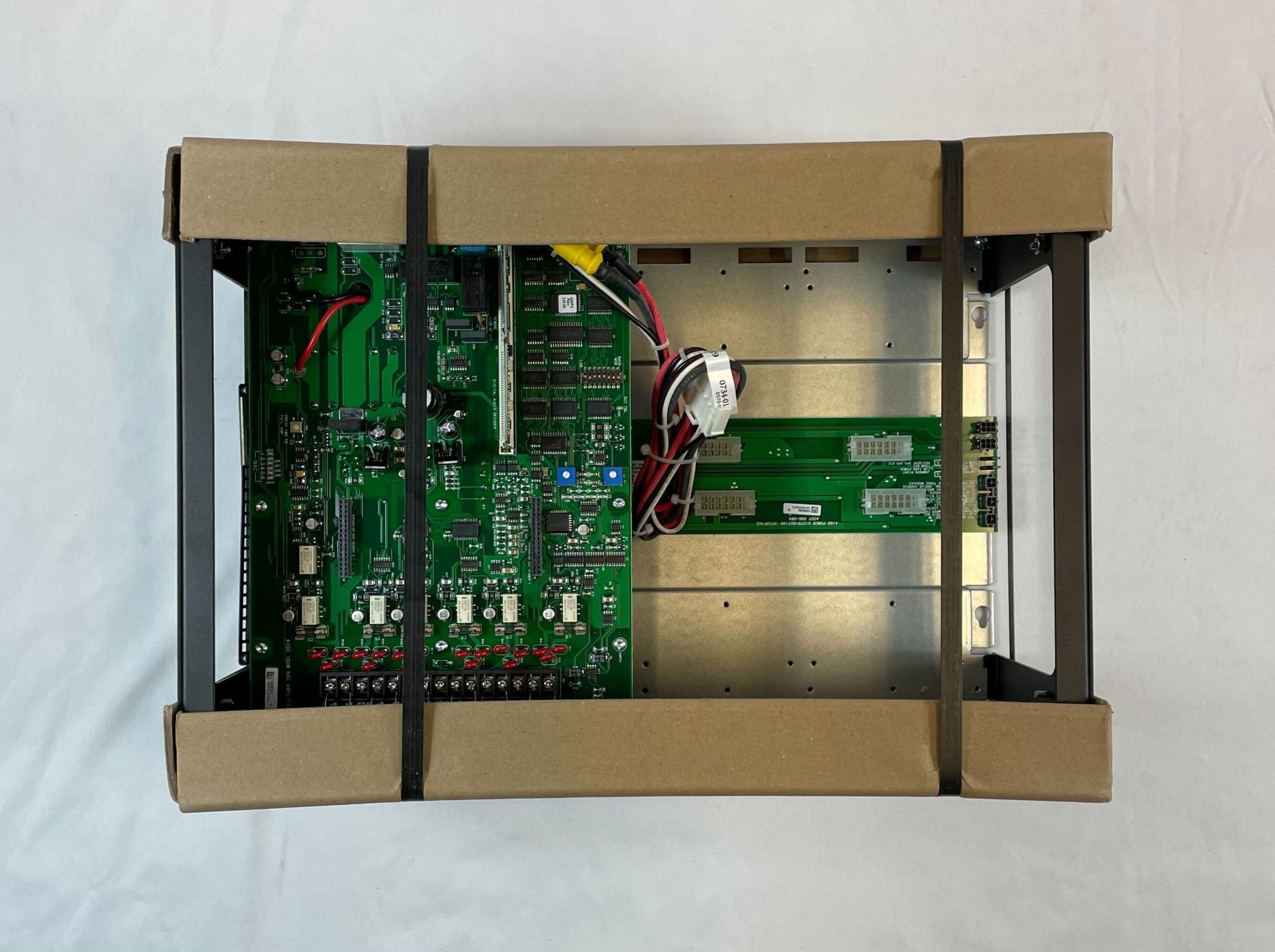

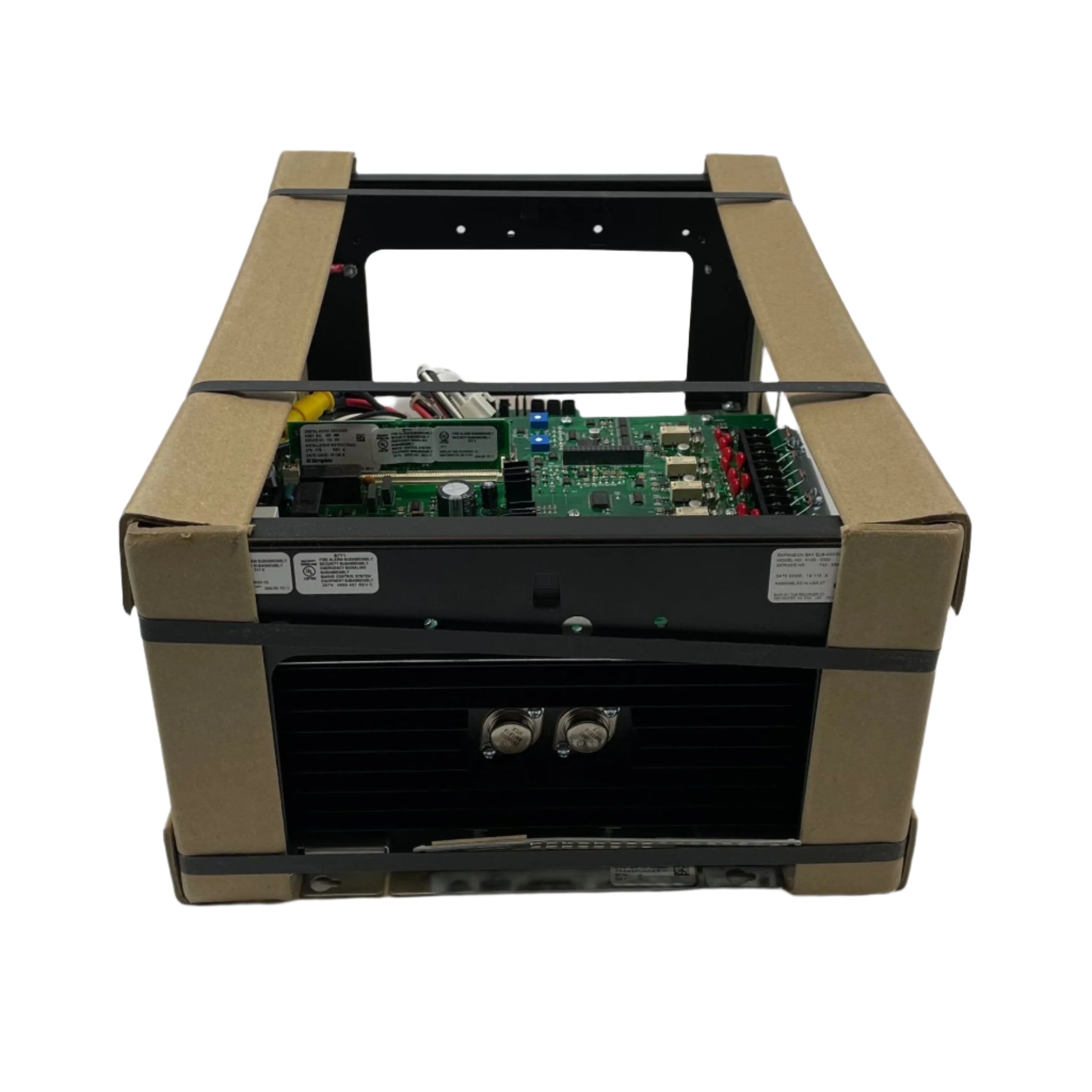

- Bay assembly, power distribution interface module (PDI), Basic Transponder Interface Module and interconnect harness
- 4100-0620 Basic Transponder Interface Module mounted in Block A
- RUI link to the host panel up to 2500 ft (762 m)
- Up to 31 remote devices on RUI, Class B or Class X
- Supervisory and alarm current 36 mA
- NEMA 1/IP30 box and solid door, platinum or red, ordered separately
- One Power Distribution Module required per box: 4100-0634 at 120 VAC, 4100-0635 at 220/230/240 VAC
The 4100-9601 is the same bay carrying the 4100-0625 Local Mode module, which keeps working if the host link fails. At the panel, the 4100-1291 RUI Module is listed for the 4100-9600 only.
