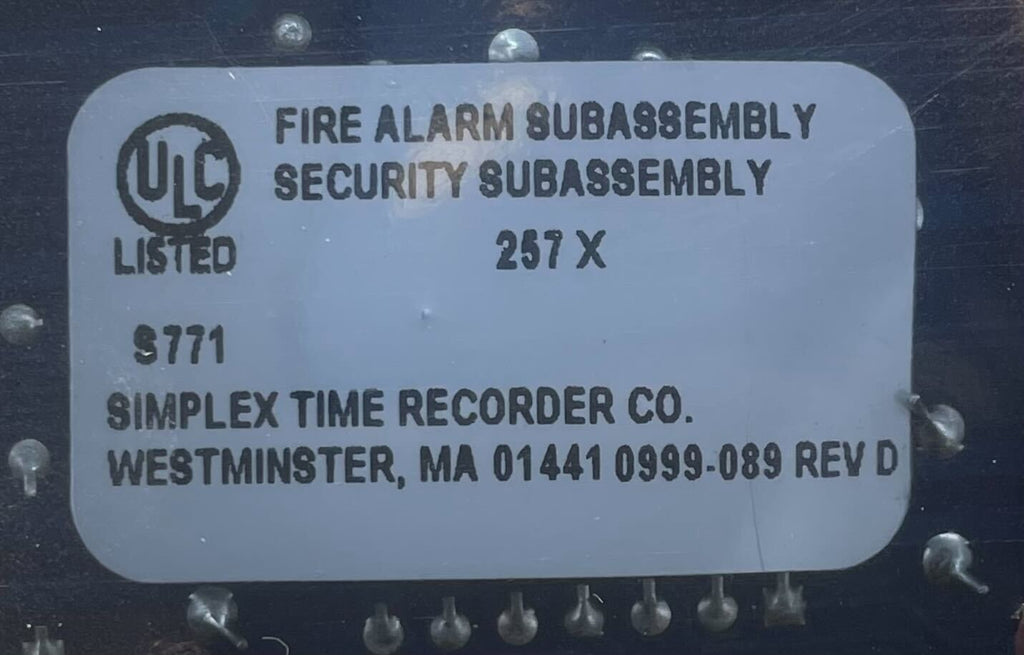

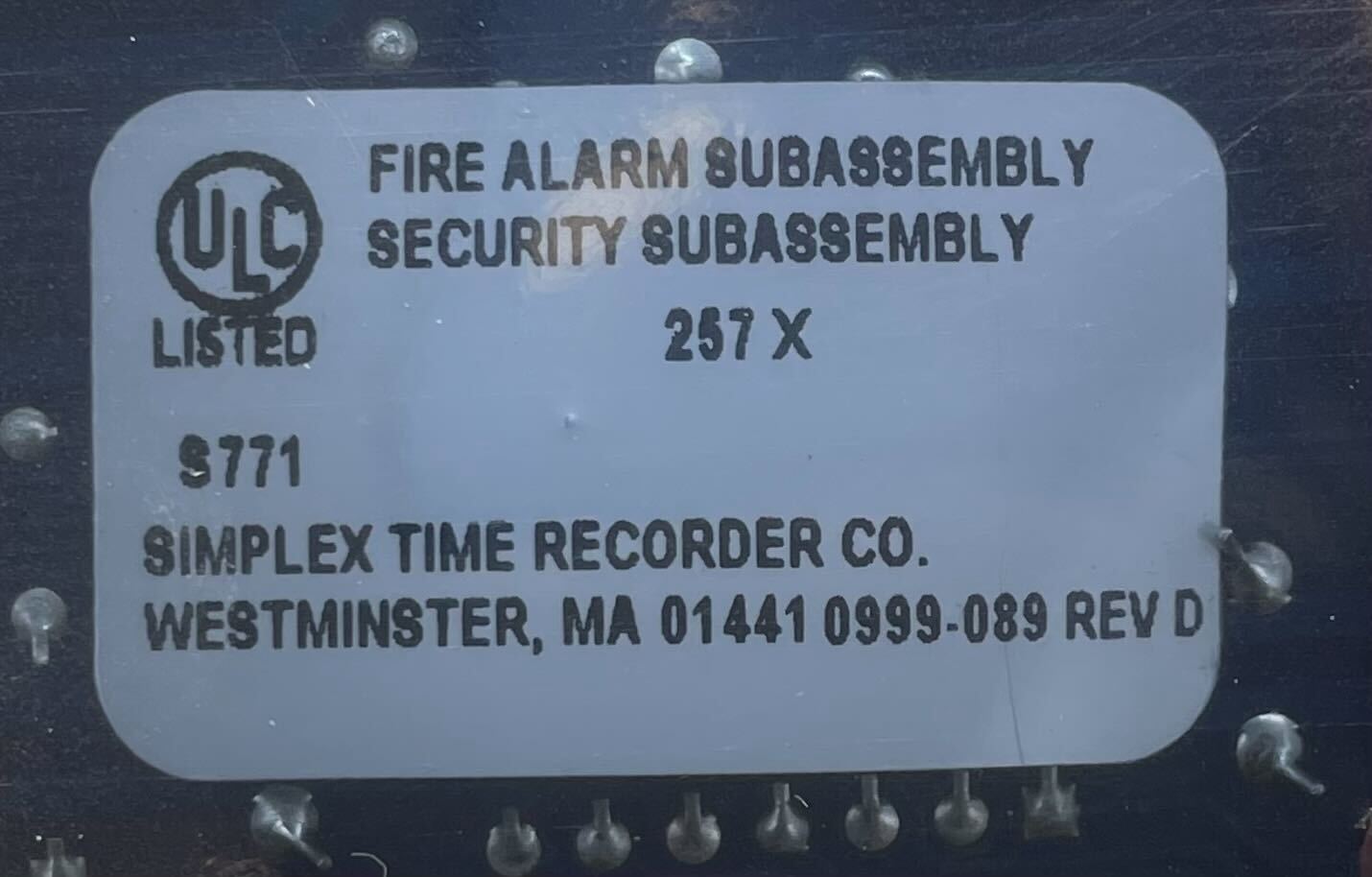

Simplex 4100-6038 is the dual RS-232/2120 interface module for 4100U and 4100ES systems, used in panels with 2975-94xx back boxes. It connects the fire alarm panel to a Simplex 2120 system, or to equipment with a standard RS-232 interface.
Through the module the panel can link to a 2120 FACP over an 18 AWG hardwired connection of up to 10,000 feet or over FSK-type modems, and can drive an AC or DC printer, CRT, third-party computer or GCC. The 4100/4120-0113 is the equivalent module for older 4100 systems with 2975-91xx back boxes.
Specifications
| Function |
Dual RS-232 / 2120 interface |
| Panels |
4100U and 4100ES (2975-94xx back boxes) |
| 2120 link |
18 AWG hardwired up to 10,000 ft, or FSK modems |
| RS-232 devices |
Printer, CRT, third-party computer, GCC |
| Ships with |

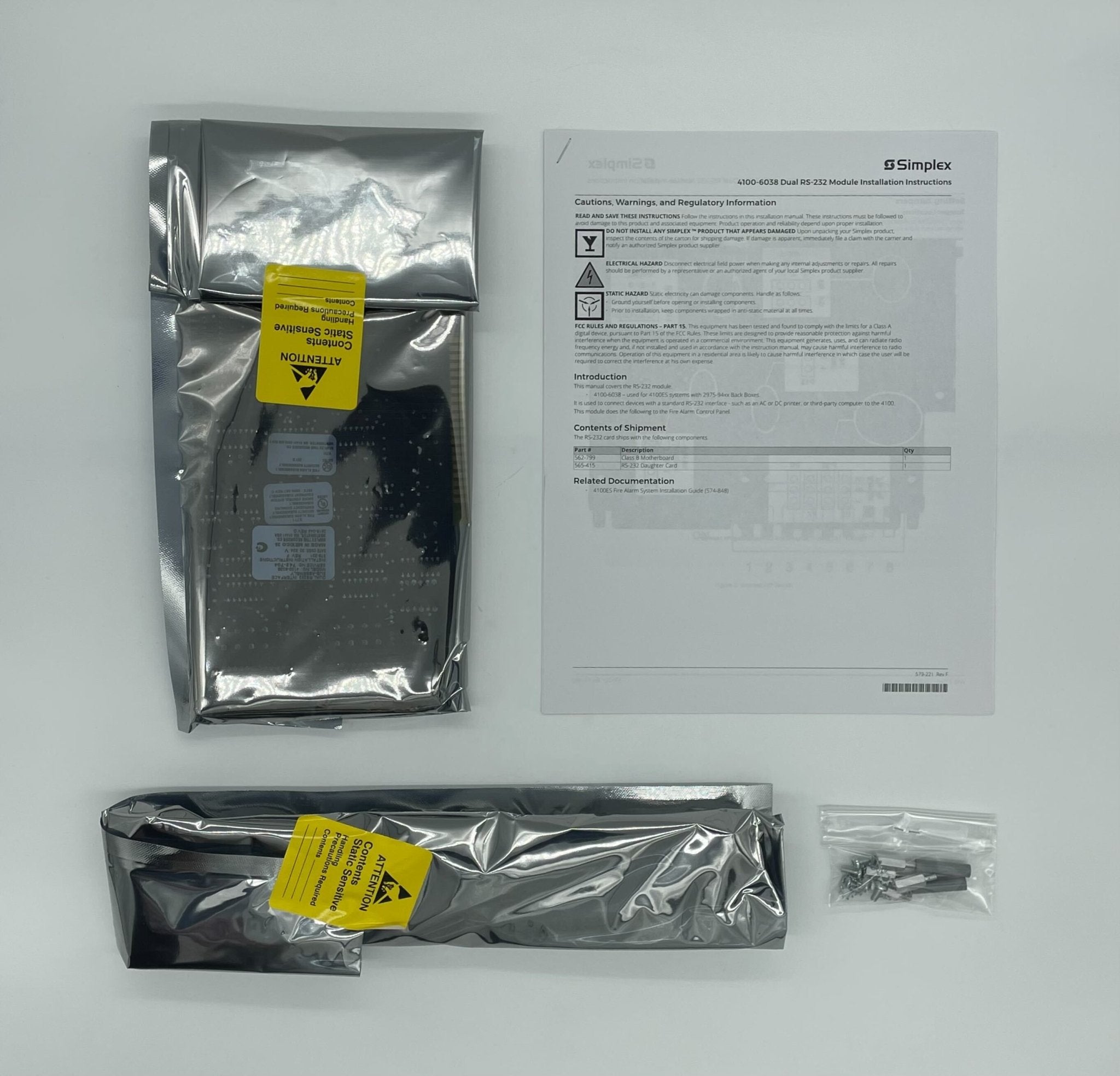

565-799 Class B motherboard, 565-415 RS-232/2120 daughter card |
| Installation instructions |
579-221 |
Installation notes
- Set jumpers and switches on the card before installing, per document 579-221
- Install the motherboard in the 4100U/4100ES back box, then fit the daughter card
- Follow the 2120 field wiring diagram (900-036) and the power limited (841-731) or non power limited (841-995) 4100 wiring diagram
- Handle in anti-static packaging; ground yourself before installing
Related models
4100/4120-0113 is the version for 2975-91xx back boxes.
