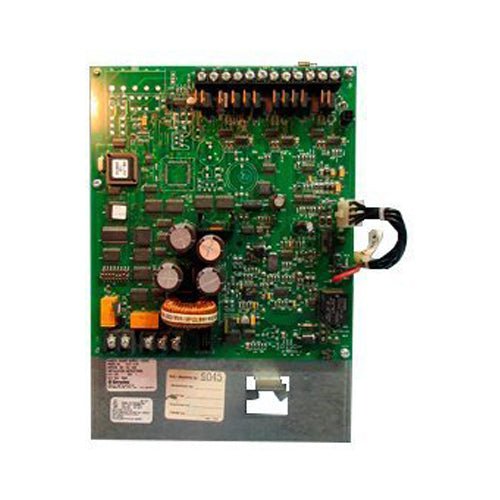

Simplex 4100-5125 — 4100ES Remote Power Supply, a 9 A supply and battery charger with three built-in Class A or Class B NACs, 120 VAC, UL certified.
RPS stands for Remote Power Supply. It feeds cabinets away from the master controller, such as remote annunciator panels, MINIPLEX transponders and Flex amplifiers. Simplex describes it as the System Power Supply without the IDNet channel or City Circuits.
- Four block spaces; 150 mA supervisory, 185 mA alarm
- Input 4 A maximum at 102 to 132 VAC, 60 Hz
- 9 A total output including module and auxiliary currents, 4 A for regulated 24 VDC
- Output 28 VDC on AC and 24 VDC on battery backup, rated 19.1 to 31.1 VDC
- NACs used for auxiliary power are 2 A each and 5 A total; aux power tap 2 A
- Dual rate charger, UL certified for 6.2 Ah to 110 Ah batteries, a remote cabinet needed above 50 Ah
Its NACs give synchronized strobe or SmartSync two-wire operation only, and it takes one 4100-6033 alarm relay. 4100-5126 is the Canadian ULC model and 4100-5127 the 220 to 240 VAC one, while the close-numbered 4100-5113 is a System Power Supply with a 250 point IDNet channel.
