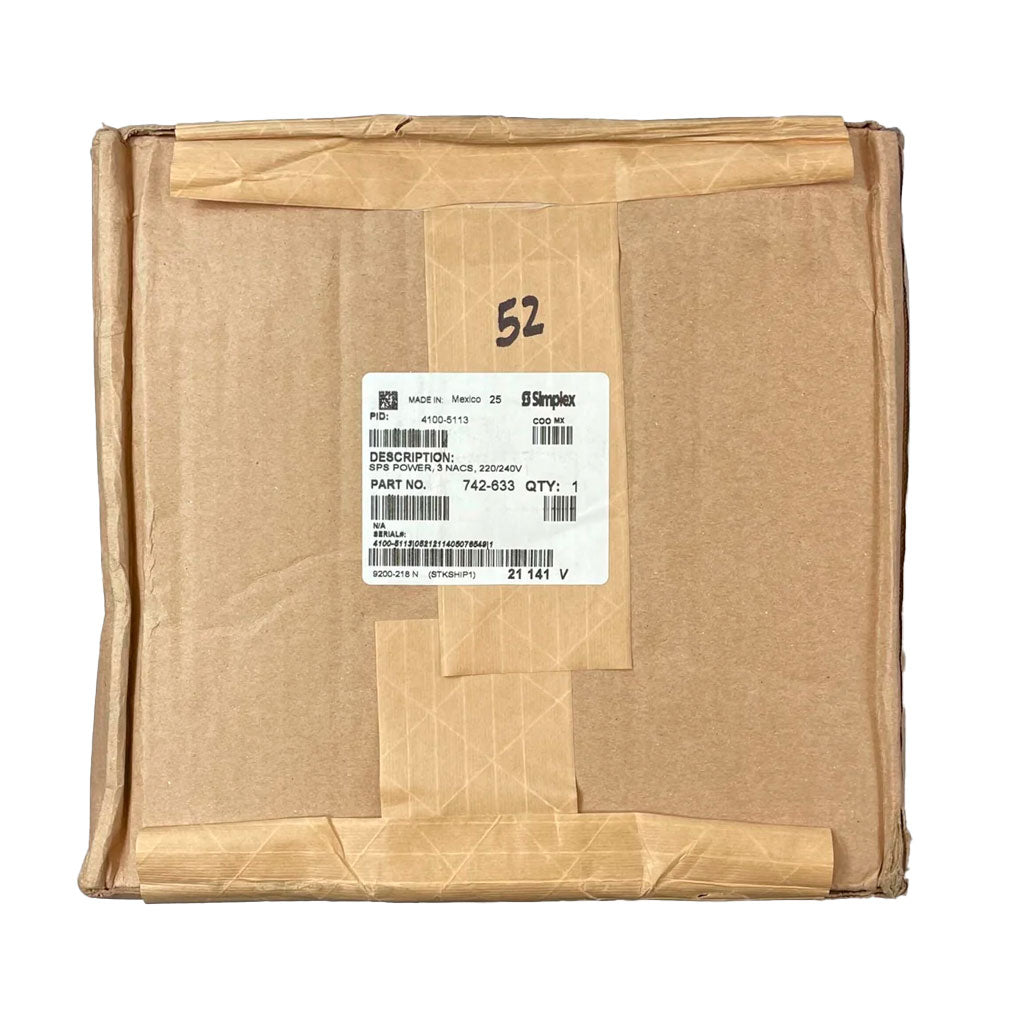

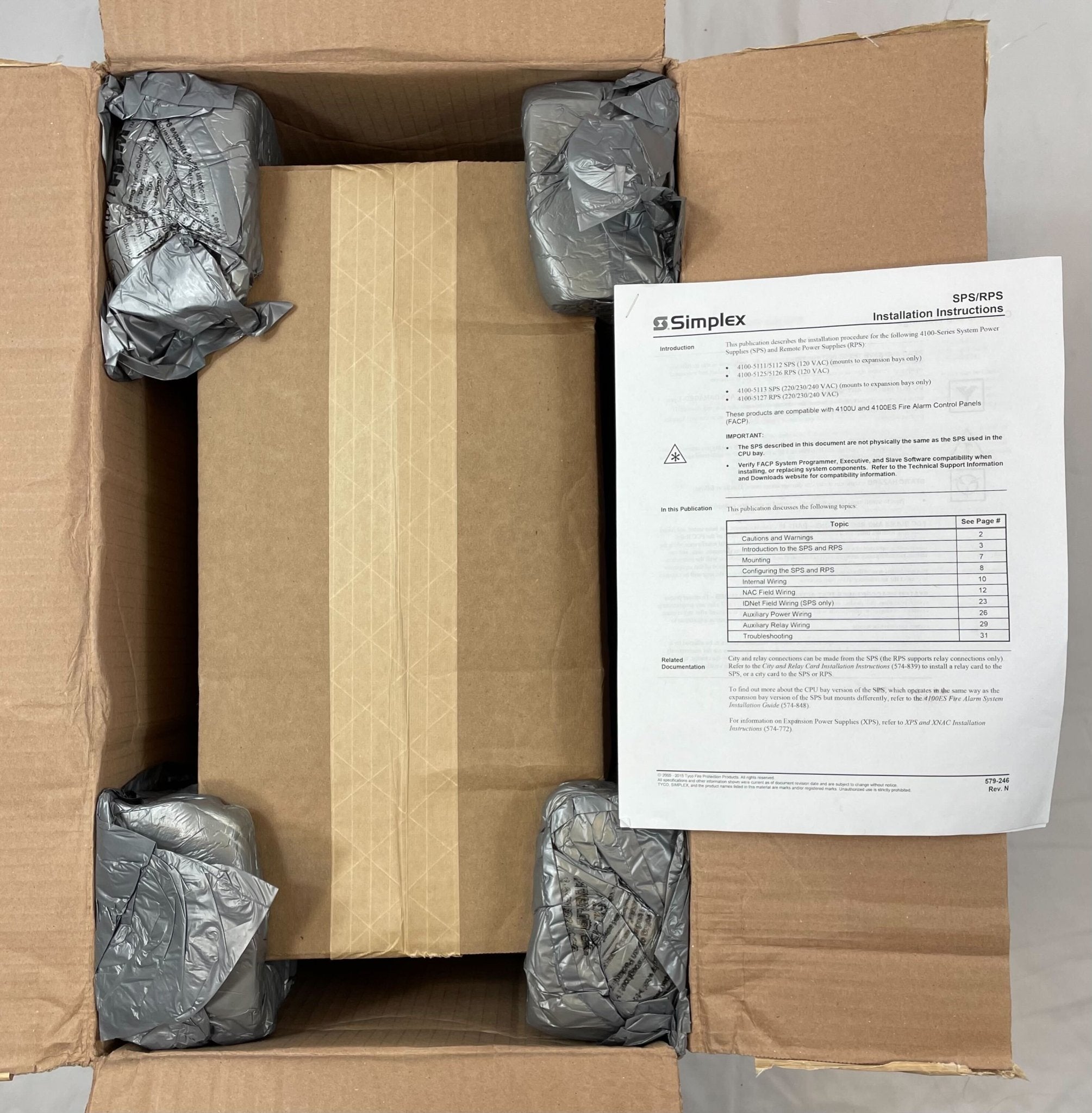

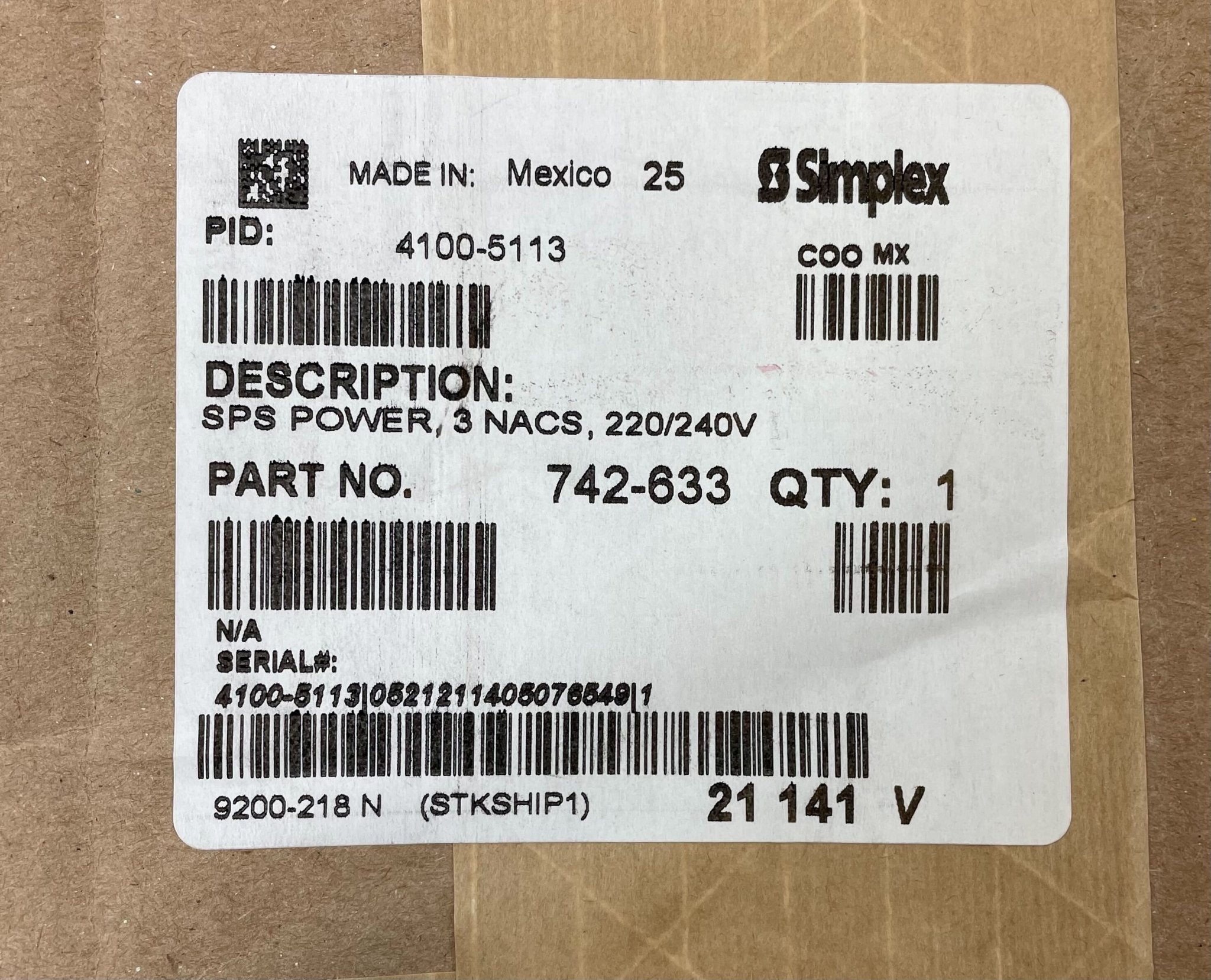

Simplex 4100-5113 — additional 4100ES System Power Supply (SPS), 220 to 240 VAC input, UL certified.
An SPS adds a second supply, charger and addressable channel to a 4100ES panel that has outgrown the one in its master controller. It fills four block spaces and brings a 250-point IDNet channel, three notification appliance circuits, auxiliary power, an auxiliary relay and earth detection.
- 9 A total with Special Application appliances, or 4 A for Regulated 24 DC appliance power
- Three 3 A NACs, reverse polarity, Class A or Class B, synchronised strobe or SmartSync over two wires
- NACs derate to 2 A each as auxiliary power; 5 A total auxiliary output per supply
- Dual-rate temperature-compensated charger to 50 Ah internally, 33 Ah single bay, 110 Ah external
- 175 mA supervisory and 185 mA alarm; outputs power limited except the charger
The 120 VAC equivalent is 4100-5111 and the Canadian ULC model 4100-5112. Do not confuse an SPS with the XPS expansion supply 4100-5101 to -5103, which shares the 9 A rating and three NACs but has no IDNet channel, or the RPS remote supply 4100-5125 to -5127, which has neither.
