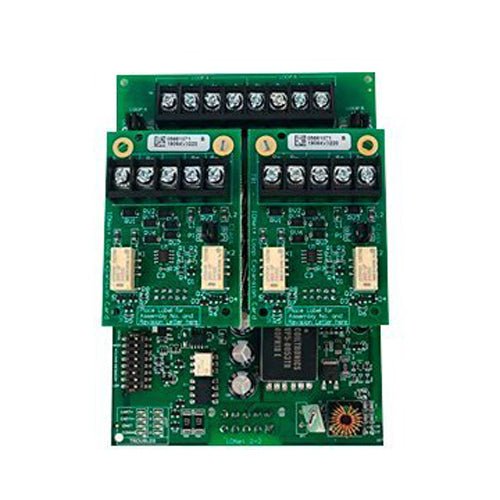

Simplex 4100-3110 IDNet 2+2 Addressable SLC Module, 250 Points Total, Four Isolated Class A or B Loops, 4100ES

Simplex 4100-3110 — IDNet 2+2 addressable signaling line circuit module for the 4100ES, with four short circuit isolating output loops.

A 4100ES CPU bay ships with one 250 point IDNet 2 channel on its ES-PS supply. This module adds another addressable initiating channel and splits it into four isolated loop outputs, so a short on one branch does not take the circuit down.

• 250 point capacity for the whole module, not for each loop; the two-loop IDNet 2 module carries the same figure
• Four short circuit isolating Class B or Class A output loops
• Occupies one block, a 4 in. × 5 in. card area
• 50 mA standby and 60 mA alarm with no devices, 250 mA and 350 mA at 250 devices
• Class B T-tapped wiring to 12,500 ft; 4,000 ft at 50 Ω up to 125 device loads, 2,500 ft at 35 Ω beyond
• Carries IDNet devices and TrueAlarm sensors including QuickConnect and QuickConnect2

4100-3109 and 4100-3117 are the IDNet 2 module with two loops and the same 250 point capacity. 4100-3111 is an aftermarket loop output module that mounts on those, not on this card. 4100-5451 is an IDNAC module and drives notification appliances.

Documents

• Simplex 4100ES Basic Panel Modules and Accessories S4100-1031 — Data Sheet (PDF)

FAQ

Is the 250 points per loop?
No. The 4100-3110 has 250 point capacity for the whole module, shared across its four isolated loops.

Can the loops be Class A?
Yes. The electrically isolated output provides four short circuit isolating Class B or Class A output loops.

How much current does it draw?
50 mA standby and 60 mA alarm with no devices, rising to 250 mA standby and 350 mA alarm at 250 devices (alarm currents for 50 or more devices include 20 device LEDs in alarm).

How much space does it take?
One block in the 4100ES.
