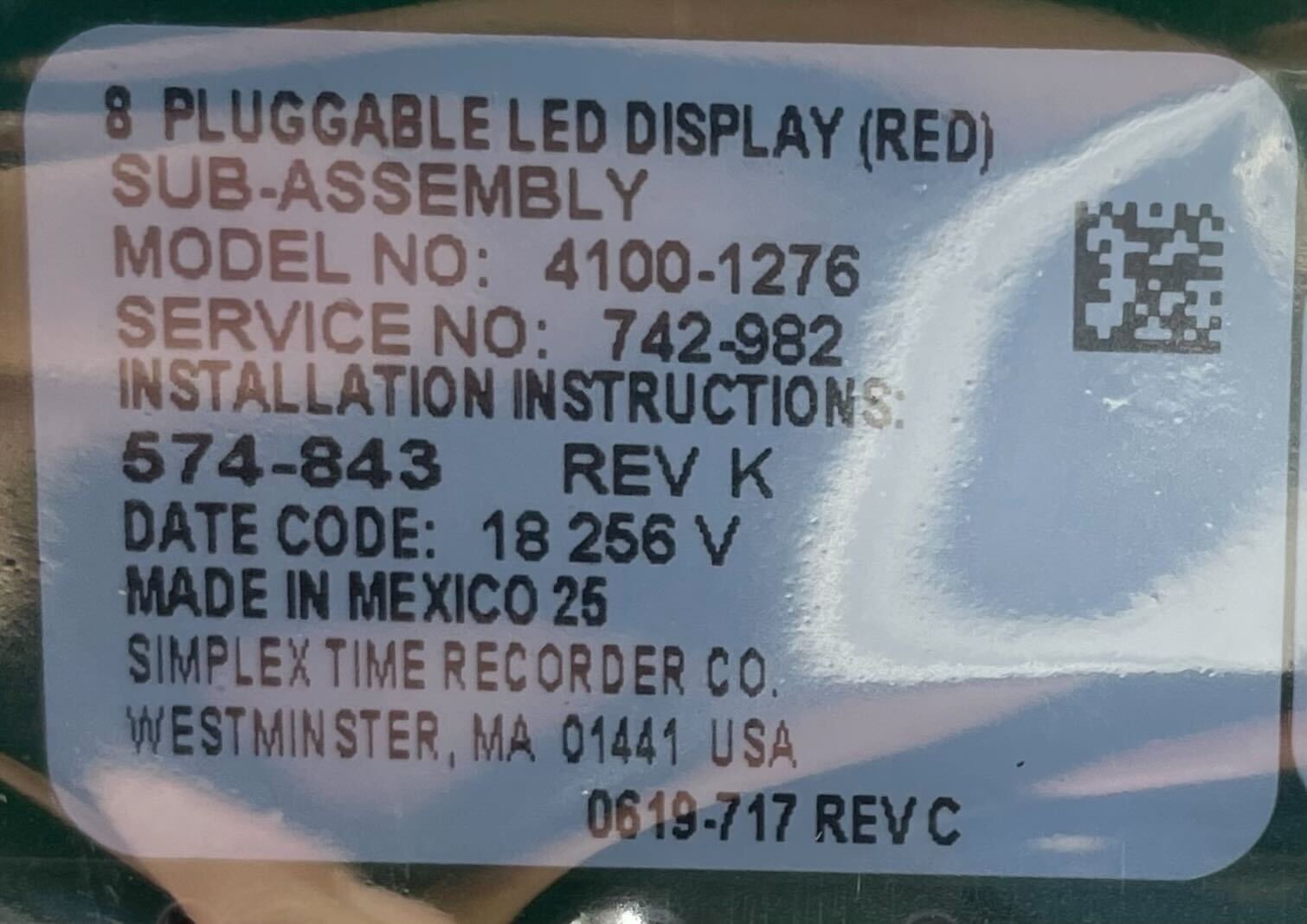

Simplex 4100-1276 — eight-LED annunciation module with red pluggable LEDs for 4100ES panel fronts.
Installers reach for this module when a 4100ES bay, remote annunciator or Network Display Unit needs dedicated status lamps without operator switches — zone or equipment status that should be readable through the glass door at a glance. It mounts on the front of the panel bay.
- Eight (8) LEDs, shipped red; no switches on this module
- LEDs are pluggable; color is changed on site with kits of eight — 4100-9845 red, 4100-9843 yellow, 4100-9844 green, 4100-9855 blue
- Custom label area per module and per LED; slide-in label kit 4100-1294 is ordered separately, one per cabinet
- Requires a 64 LED/64 switch controller (4100-1288 or 4100-1289), which must sit in the same bay
- Operating range 32°F to 120°F (0°C to 49°C)
This is an LED-only module. If the job needs pushbuttons, order 4100-1280 (8 switches with 8 red LEDs); for sixteen LEDs in red over yellow, order 4100-1277.
