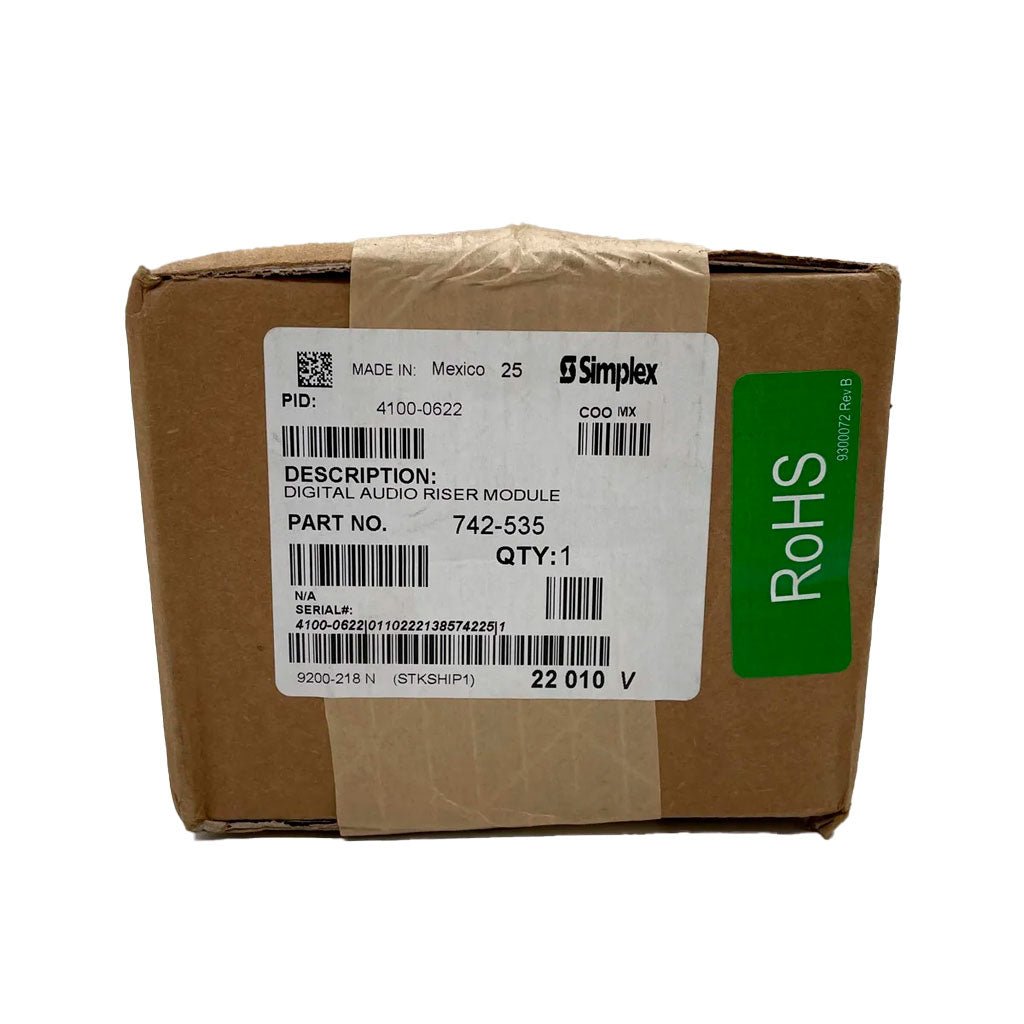

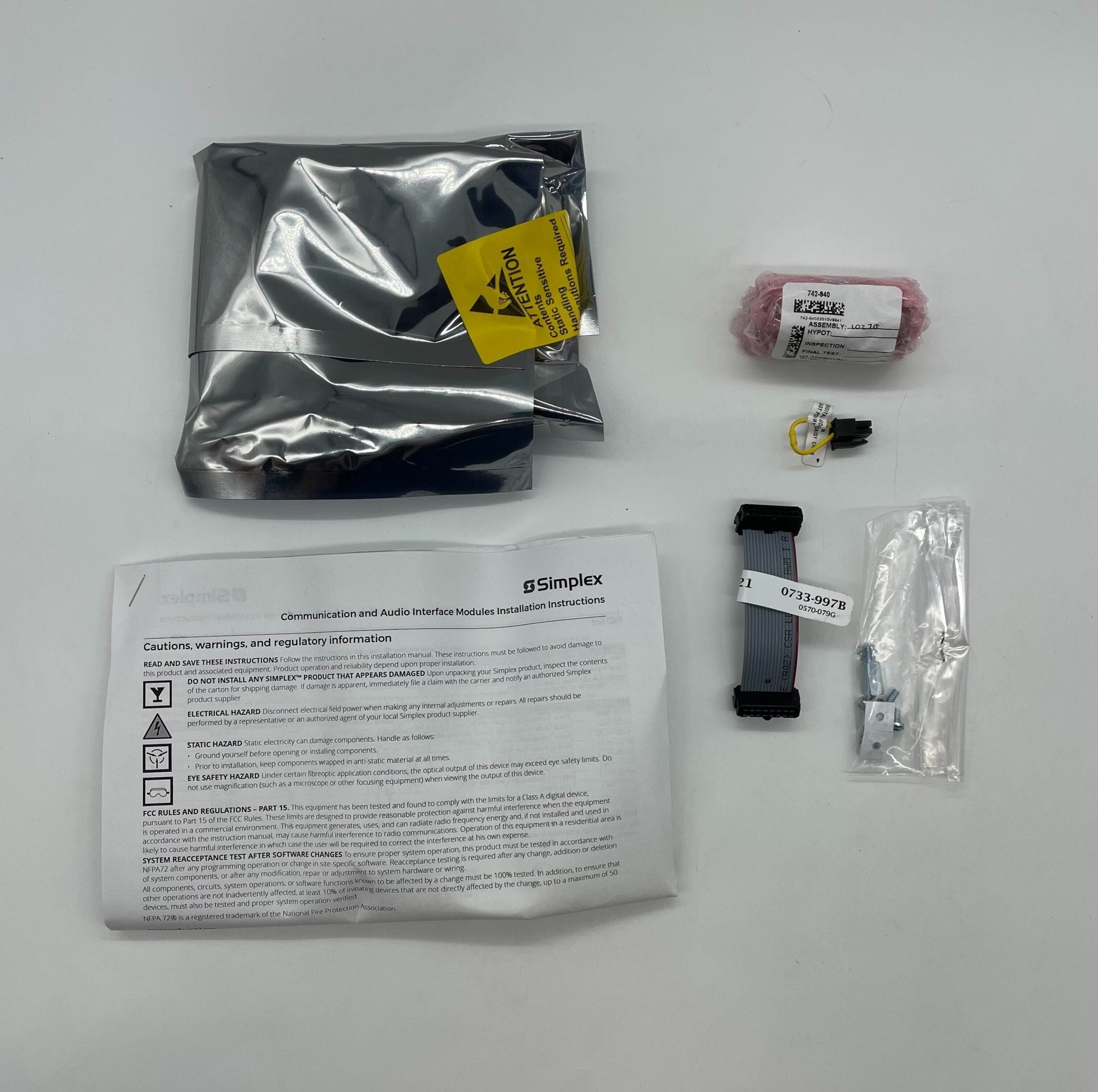

Simplex 4100-0622 (assembly 742-535) is a 3 to 8 channel digital audio riser module with NAA input for Simplex 4100ES emergency voice/alarm systems. It receives and decodes digital audio inputs for up to eight audio channels, so remote transponders can select and amplify the channels sent over the digital riser.
The riser signal is reformatted and repeated at each module, allowing up to 2,500 ft between the digital controller and the first riser module and up to 2,500 ft between modules. The NAA input accepts 25, 70.7 or 0.707 VRMS.
Specifications
| Function |
3-8 channel digital audio riser module with NAA input |
| Audio channels |
Up to eight |
| NAA input |
25, 70.7 or 0.707 VRMS |
| Current |
70 mA |
| Riser distance |
Up to 2,500 ft (762 m) from digital controller and between modules |
| Wiring |
UTP over 100 ft (30 m); STP for 100 ft or less |
| Assembly number |
742-535 |
Installation notes
- Used with the 4100-1311 or 4100-1411 digital audio controller
- Refer to Simplex installation instructions 574-844 for riser wiring
Related models
- 4100-0620 and 4100-0621: Simplex audio riser modules
- 4100-1411: digital audio controller
FAQ
How many audio channels does the 4100-0622 handle?
It receives and decodes digital audio inputs for up to eight audio channels (3 to 8 channel digital audio riser).
What does the NAA input accept?
The NAA input accepts 25, 70.7 or 0.707 VRMS.
How far can the digital riser run?
Up to 2,500 ft (762 m) from the 4100-1311 or 4100-1411 digital controller to the 4100-0622, and up to 2,500 ft between 4100-0622 modules, since the signal is reformatted and repeated.
What wire is required?
Unshielded twisted pair for runs over 100 ft (30 m); runs of 100 ft or less require shielded twisted pair.
