Simplex 4099-9015 — double action, push-operation addressable manual station for releasing applications, supplied blank for a label from the 4099-9802 kit.
Simplex documents it apart from the general fire alarm stations: a station that discharges an extinguishing agent must say which agent it releases. The front is blank instead of marked FIRE, and the 4099-9802 kit supplies clean agent, extinguishing, carbon dioxide, foam system, sprinkler and manual release labels.
- IDNet or MAPNET II communications, one address per station, power and data on a single pair
- Up to 2,500 ft (762 m) from the panel, 10,000 ft (3048 m) total including T-taps

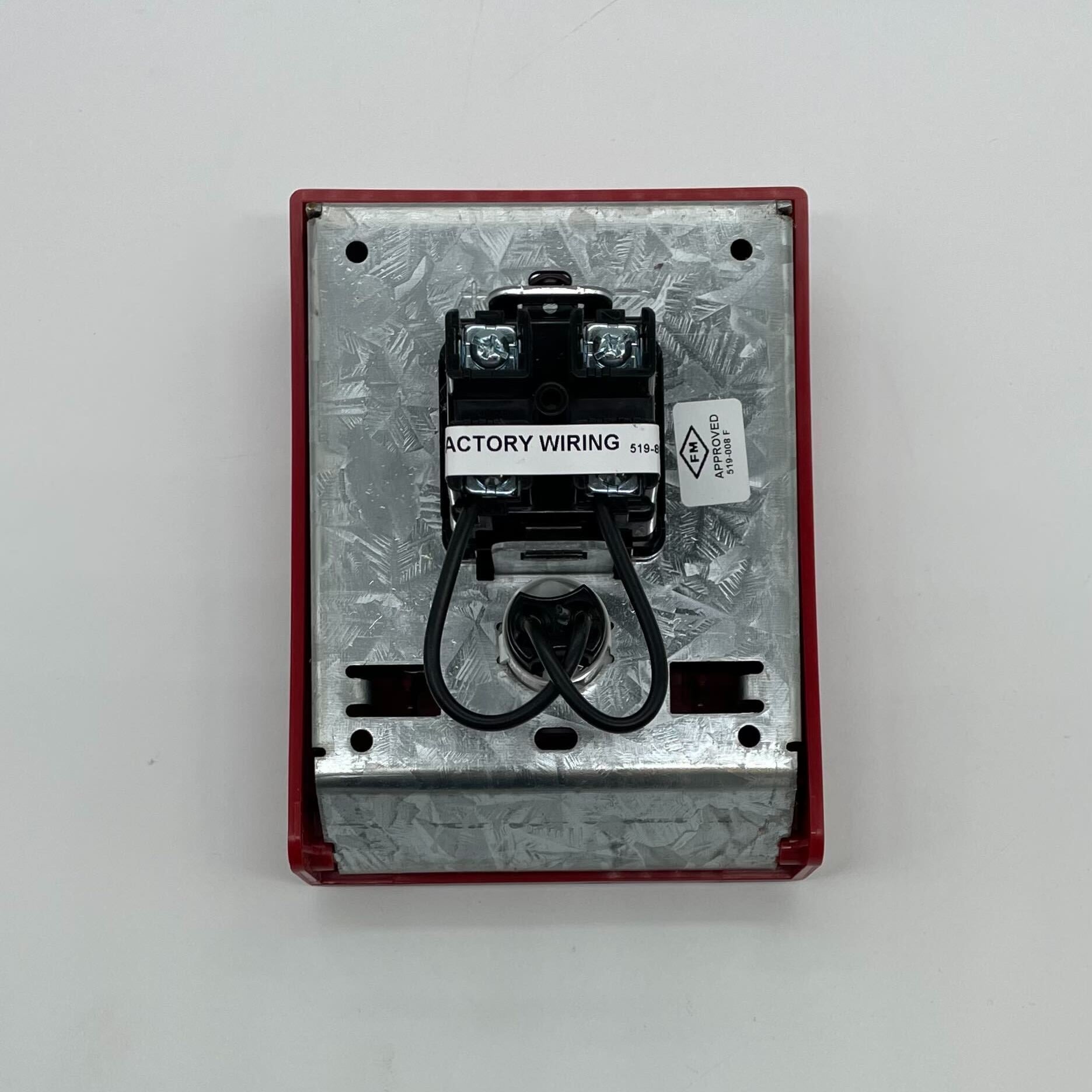

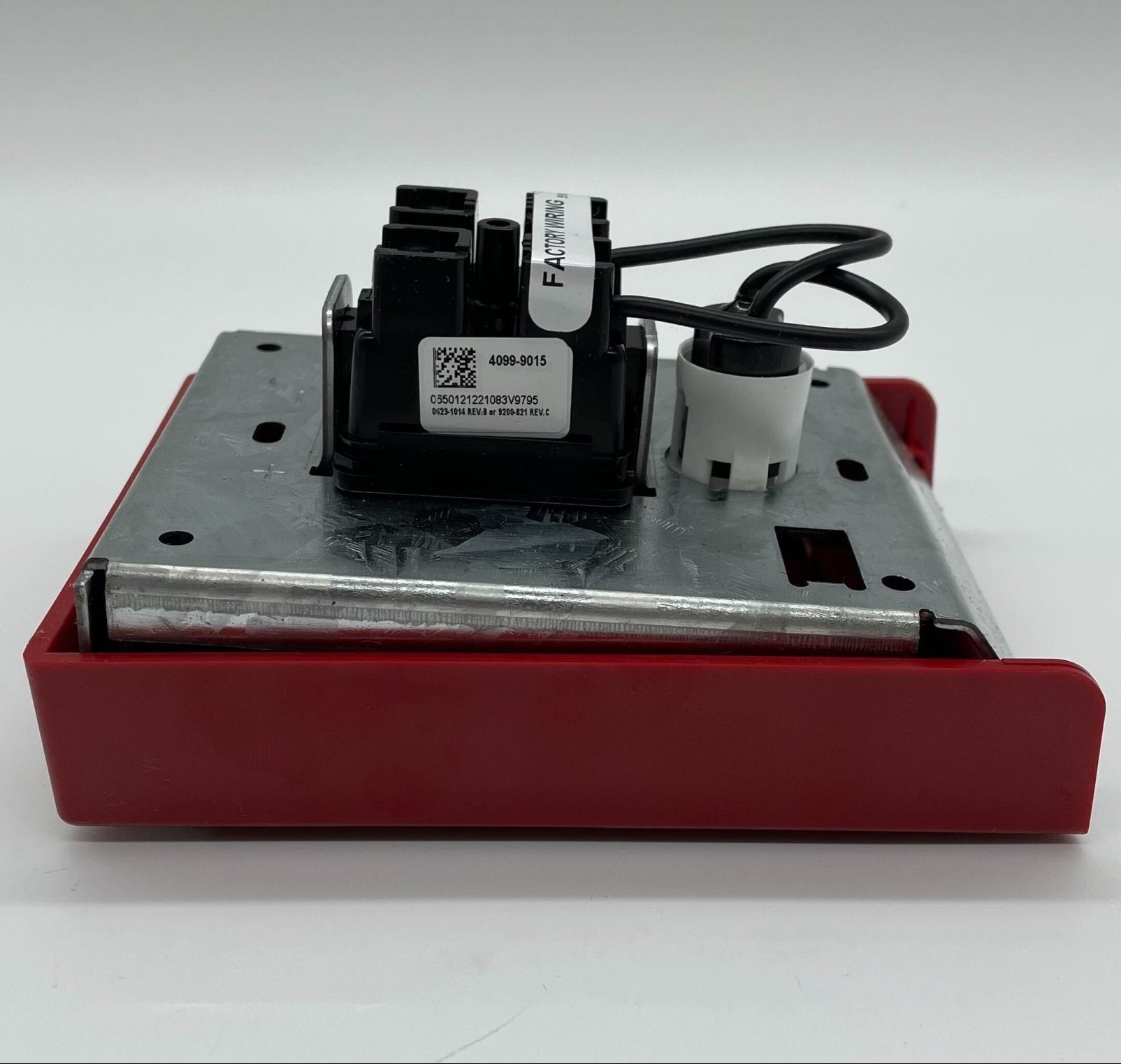

- Eight-position DIP switch addressing; screw terminals for 18 to 14 AWG

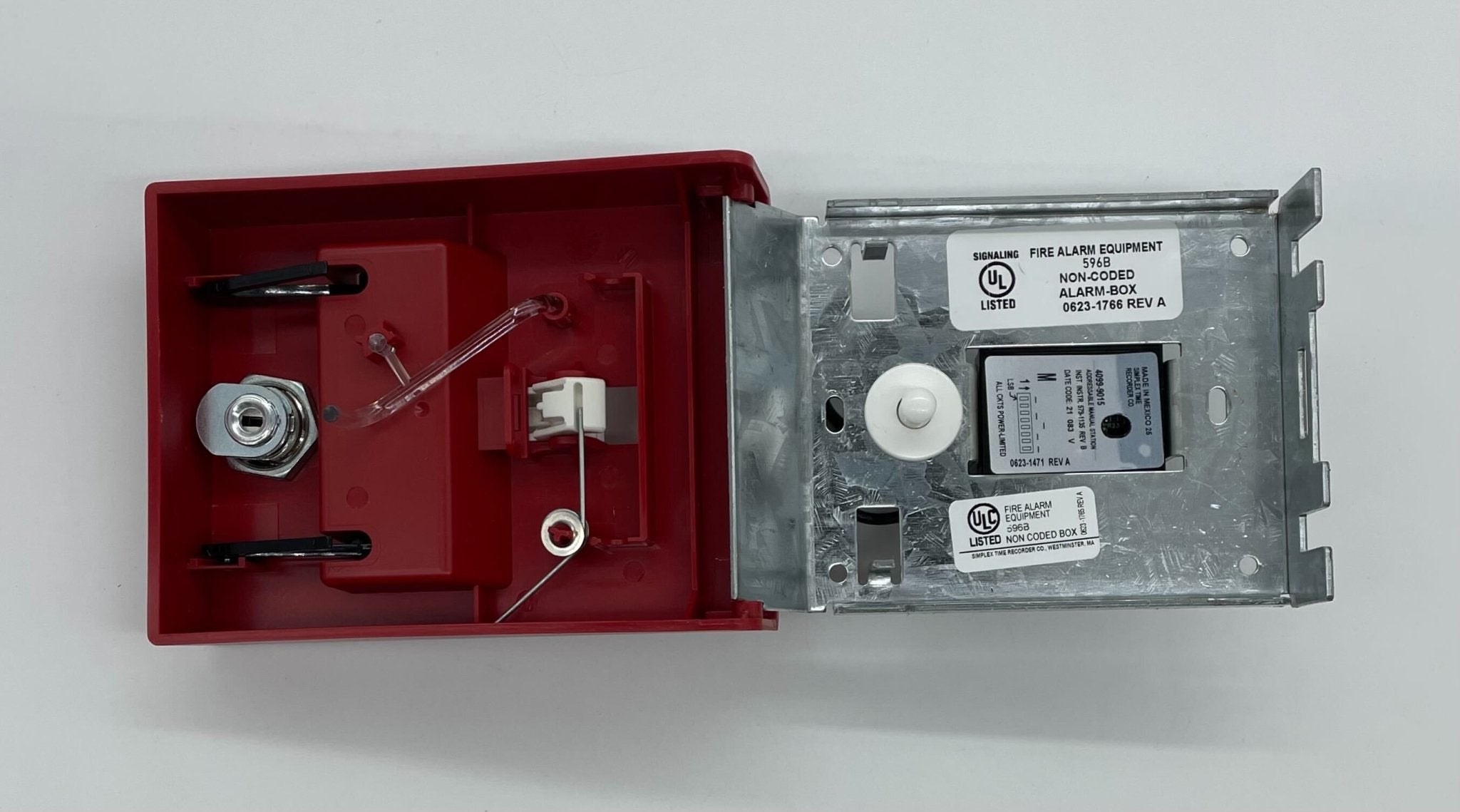

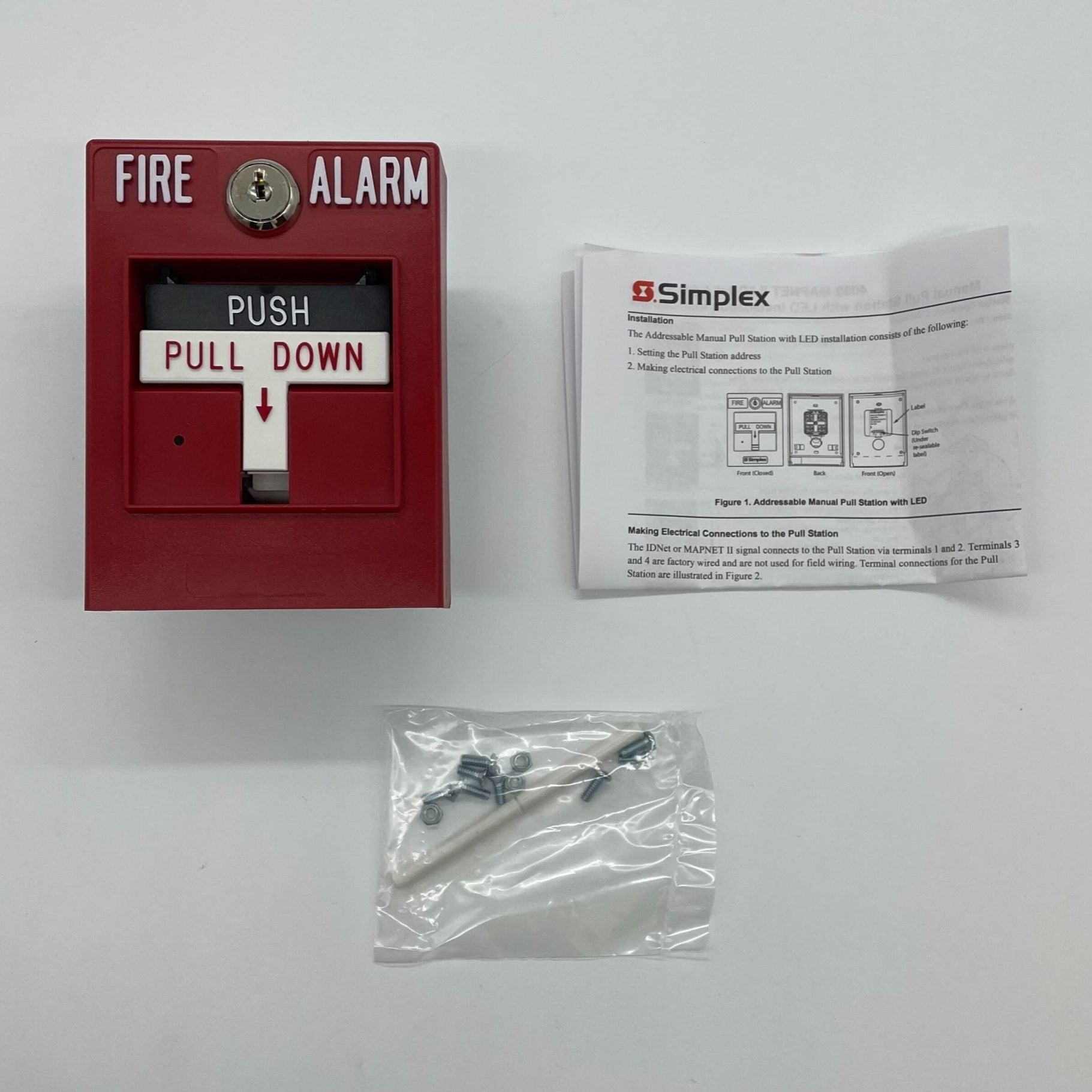

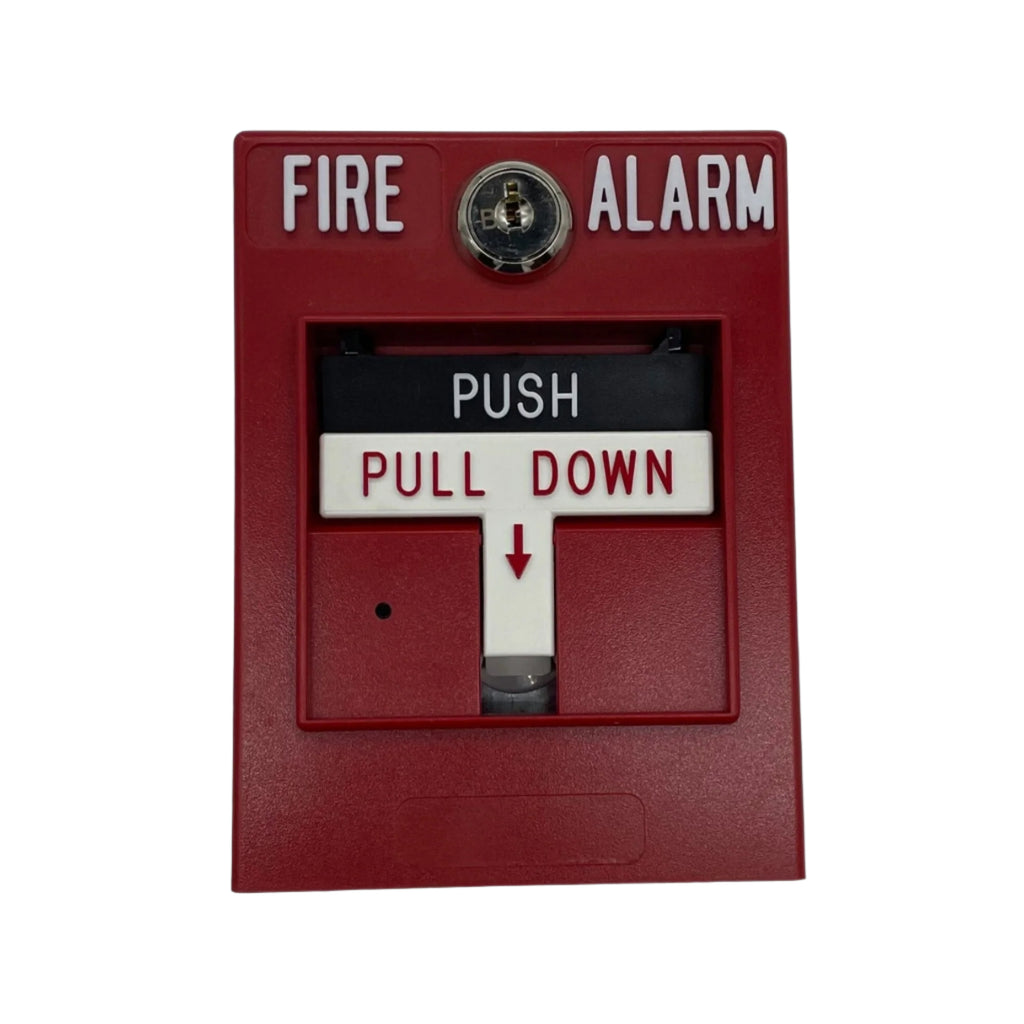

- Red Lexan polycarbonate housing, white pull lever; 5" H × 3-3/4" W × 1" D (127 × 95 × 25 mm)
- Indoor, 32 °F to 120 °F (0 °C to 49 °C); UL listed to Standard 38; key reset
Listed for Simplex releasing panels in the 4100ES, 4010ES and 4010 series. Do not substitute the ordinary stations from S4099-0005: 4099-9005 is the double action breakglass and 4099-9006 the double action push type.
