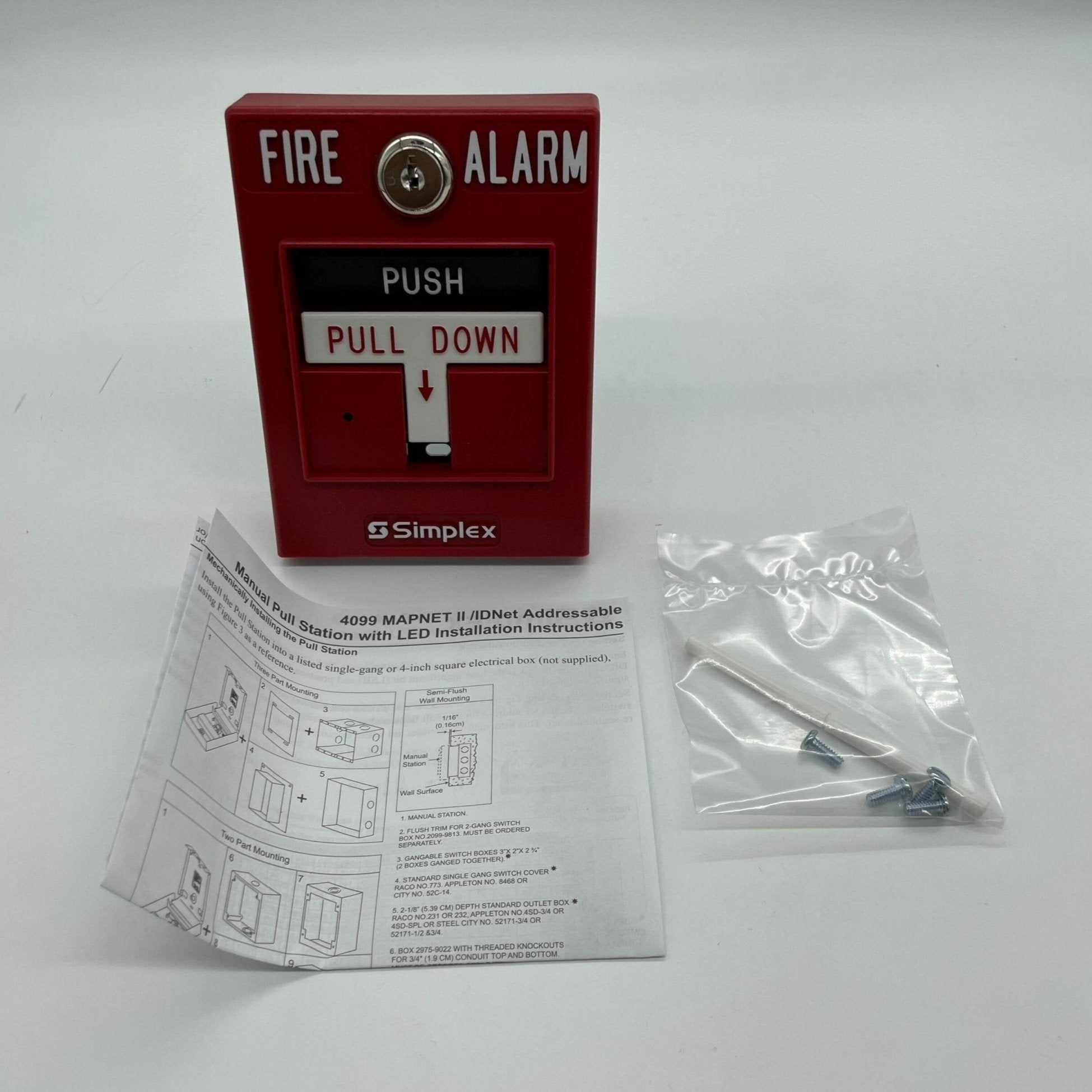

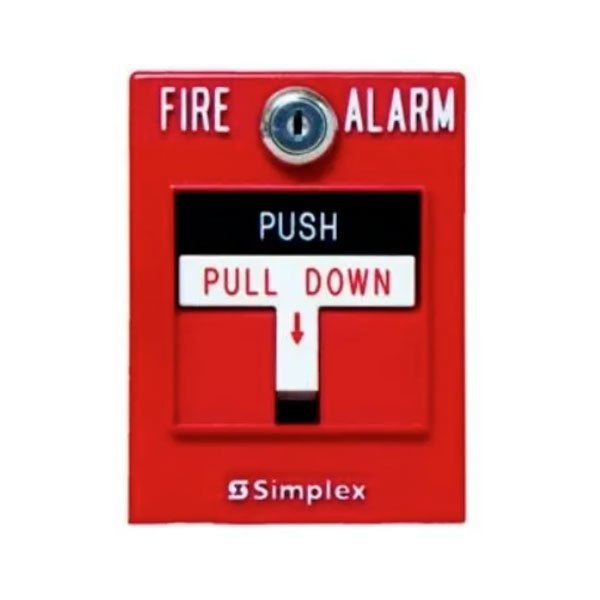

Simplex 4099-9006 is an addressable double action manual fire alarm station, push type, with English FIRE ALARM and PUSH PULL DOWN lettering. Operation requires a spring-loaded plate marked PUSH to be pushed back to reach the recessed pull lever, which then works as a single action station.
The station gets power and data over IDNet or MAPNET II on a single pair and takes one address, set on an 8-position DIP switch. It is for use with 4007ES, 4008, 4010, 4010ES, 4100ES, 4100U, 4020, 4100 and 4120 panels. A break-rod is supplied, and the station is key reset, keyed as Simplex fire alarm cabinets.
Specifications
| Type |
Addressable double action manual station, push type, English |
| Communication |
IDNet or MAPNET II, single pair, one address per station |
| Addressing |
8-position DIP switch |
| Panels |
4007ES, 4008, 4010, 4010ES, 4100ES, 4100U, 4020, 4100, 4120 |
| Housing |
5 in. H x 3 3/4 in. W x 1 in. D, red Lexan polycarbonate, white lettering |
| Wiring |
Screw terminals, 18 AWG to 14 AWG |
| Temperature |
32°F to 120°F |
| Approvals |
UL, ULC, FM and CSFM certified; UL 38; NEMA 1 with 2975-9178 back box |
Related models
-
4099-9005 - the other double action station, breakglass rather than push.
-
4099-9004 - single action station.
-
4099-9021 - the NO GRIP lever station.
-
4099-9015 - the releasing-applications station, which ships with a blank front panel and needs a label kit; the 4099-9006 is not that part.
FAQ
What is the difference between the 4099-9006 and the 4099-9005?
Both are double action. The 4099-9006 is push type; the 4099-9005 is breakglass.
