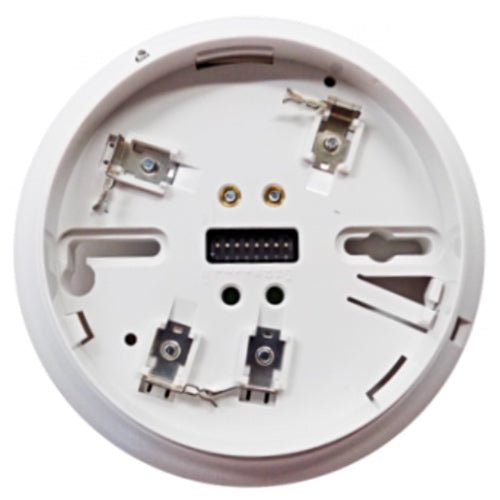

With the Simplex 4098-9791 4-wire TrueAlarm sensor base, an addressable smoke or heat sensor can also control a relay. It has connections for the 2098-9737 supervised remote relay, or for an LED indicator or unsupervised relay. The sensor gets power and data from the MAPNET II or IDNet loop, and a separate 24 VDC supply runs the relay.
Key Features
- 4-wire base for Simplex TrueAlarm analog sensors
- Connects to the 2098-9737 supervised remote relay, up to 100 ft of wire from the base
- Supports the 2098-9808 remote red LED alarm indicator or the 4098-9822 LED annunciation relay module
- Screw terminals accept 14 to 18 AWG solid or stranded wire
- White finish
Specifications
-
Manufacturer: Simplex
-
Part Number: 4098-9791
-
Type: 4-wire supervised relay sensor base
-
Communication: MAPNET II or IDNet single wire pair
-
Relay Power: Separate 24 VDC required
-
Max Wire Length to 2098-9737: 100 ft
-
Terminal Wire Size: 14–18 AWG
-
Color: White
-
Surface/Semi-Flush Mounting: Requires 4098-9832 adapter plate
Compatibility
Works with Simplex 4010, 4020, 4100+ and 4120 fire alarm panels over MAPNET II or IDNet. NOT compatible with the 2120 CDT. Do not use a remote LED when the 4098-9822 relay module is installed.
