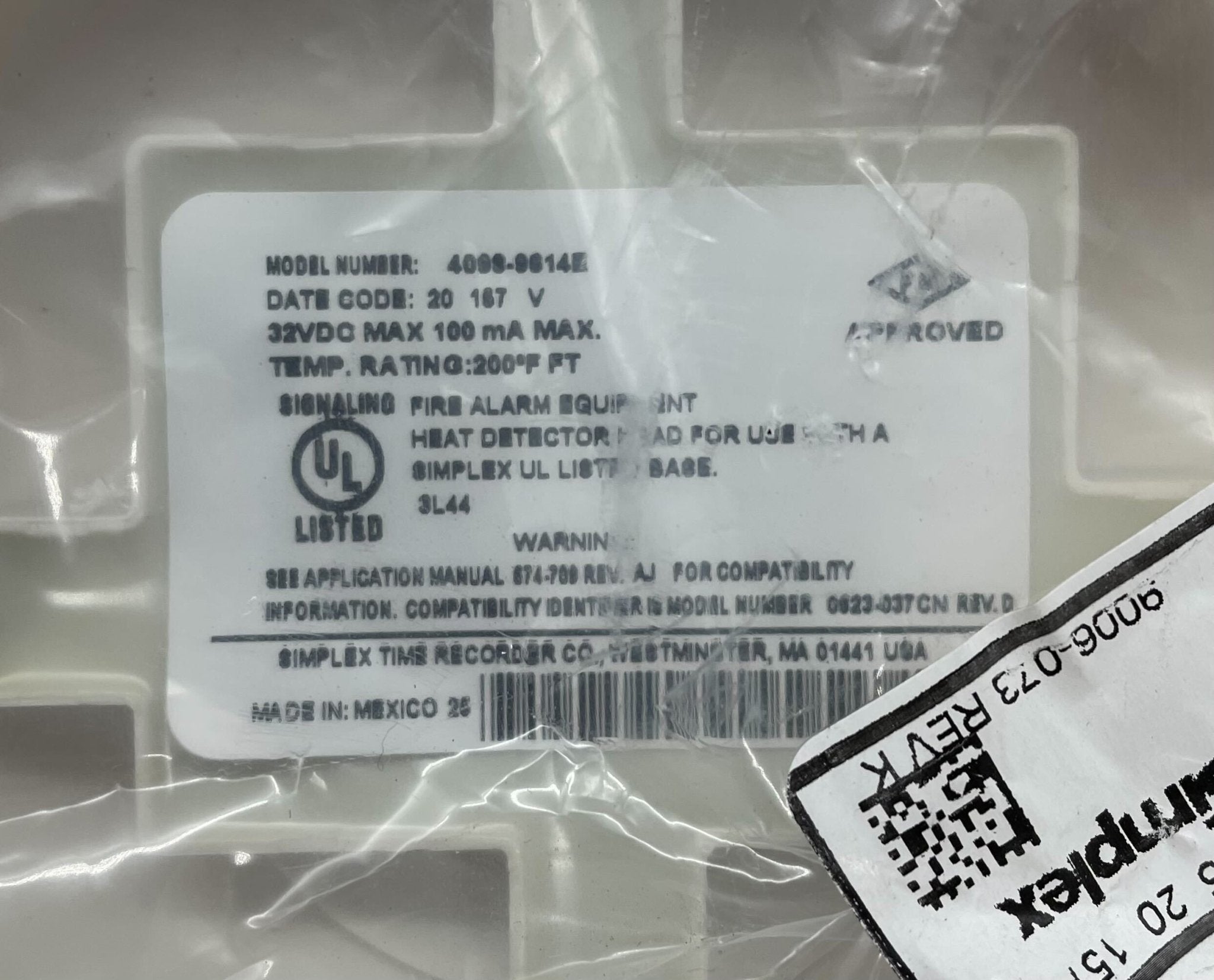

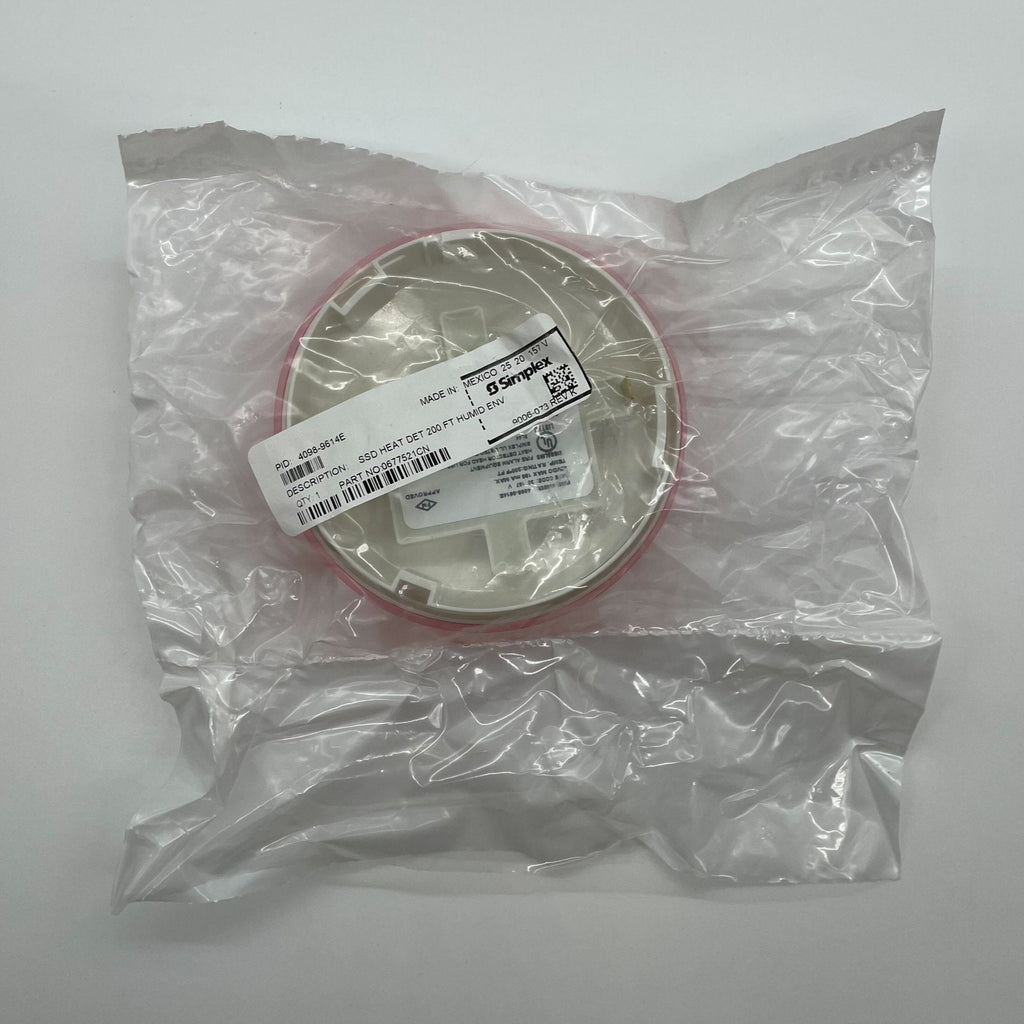

Simplex 4098-9614E SSD Heat Detector 200 FT Humid Env
The 4098-9614 is a Simplex non-addressable electronic heat detector with 200 F (93 C) fixed-temperature operation, used on two-wire or four-wire bases. It senses temperature with a fast-response thermistor instead of a fusible or bimetallic element.
Key Features
- Thermistor-based electronic heat detector, UL listed to Standard 521 as rate compensated
- Epoxy encapsulated electronics for ceiling or wall mounting
- Self-restoring operation; alarm LED on the detector
- Current-limited alarm compatible with two-wire initiating device circuits
- Bases available for 2-wire or 4-wire operation, with relay or remote LED options
- Fixed temperature 200 F (93 C); for normal temperatures above 100 F but below 150 F
Specifications
| Voltage |
15 to 32 VDC (filtered DC, 30% max ripple) |
| Standby current |
80 uA typical, 100 uA maximum |
| Alarm current, 2-wire |
Up to 86 mA maximum (set by IDC current limiting) |
| Alarm current, 4-wire |
24 mA typical @ 24 VDC |
| Humidity |
10% to 95% RH from 32 to 122 F; not intended for outdoor applications |
| Color |
Frost-White |
| Fixed temperature rating |
200 F (93 C) |
| Ambient operating range |
32 to 150 F (0 to 66 C) |
| UL & ULC maximum spacing |
70 ft x 70 ft (21.3 x 21.3 m) |
| FM maximum spacing |
20 ft x 20 ft, RTI Quick |
Compatible With
- 4098-9788 2-wire base
- 4098-9684 2-wire base with remote LED connection
- 4098-9683 2-wire base with auxiliary relay
- 4098-9682 4-wire base
