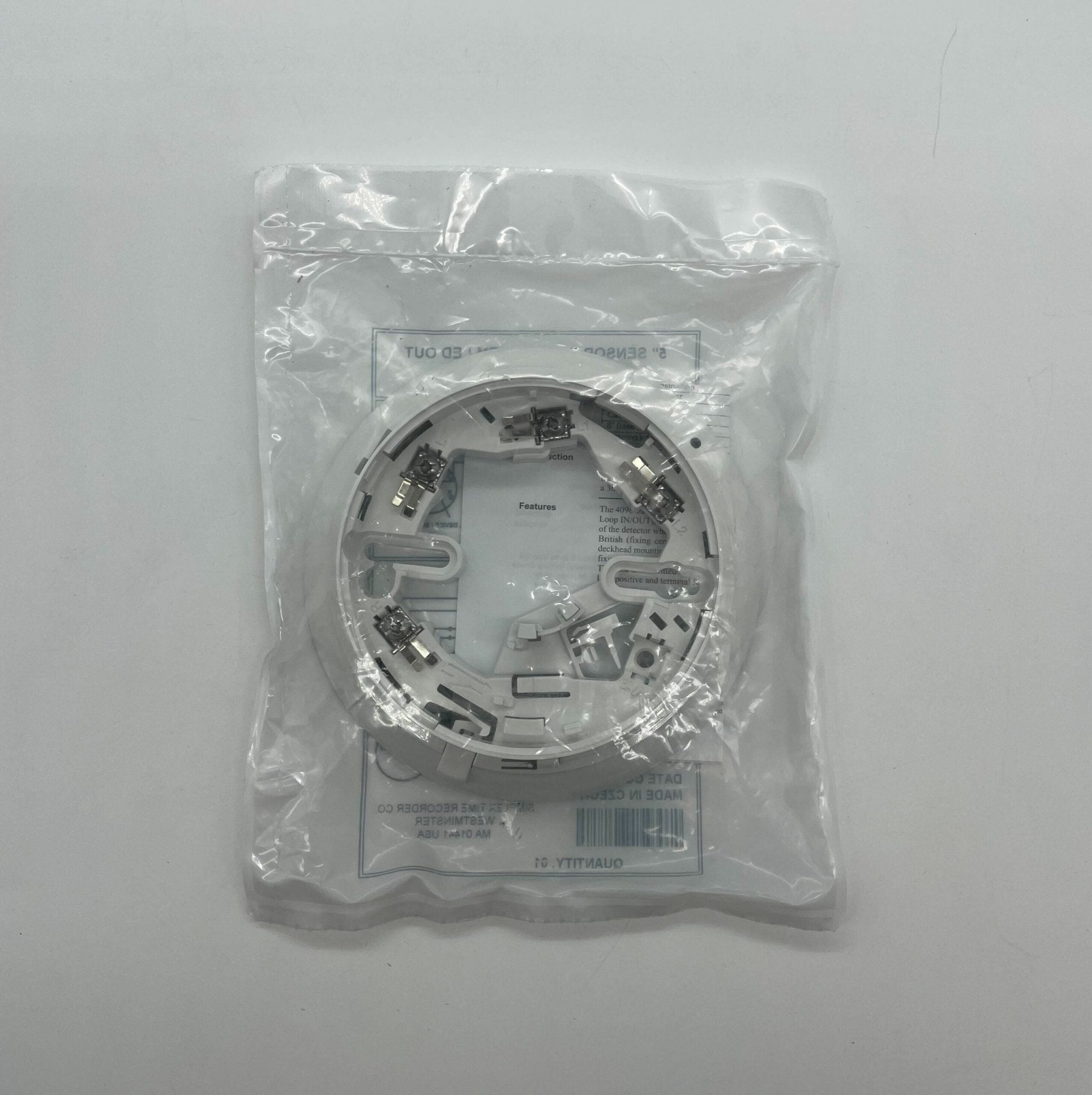

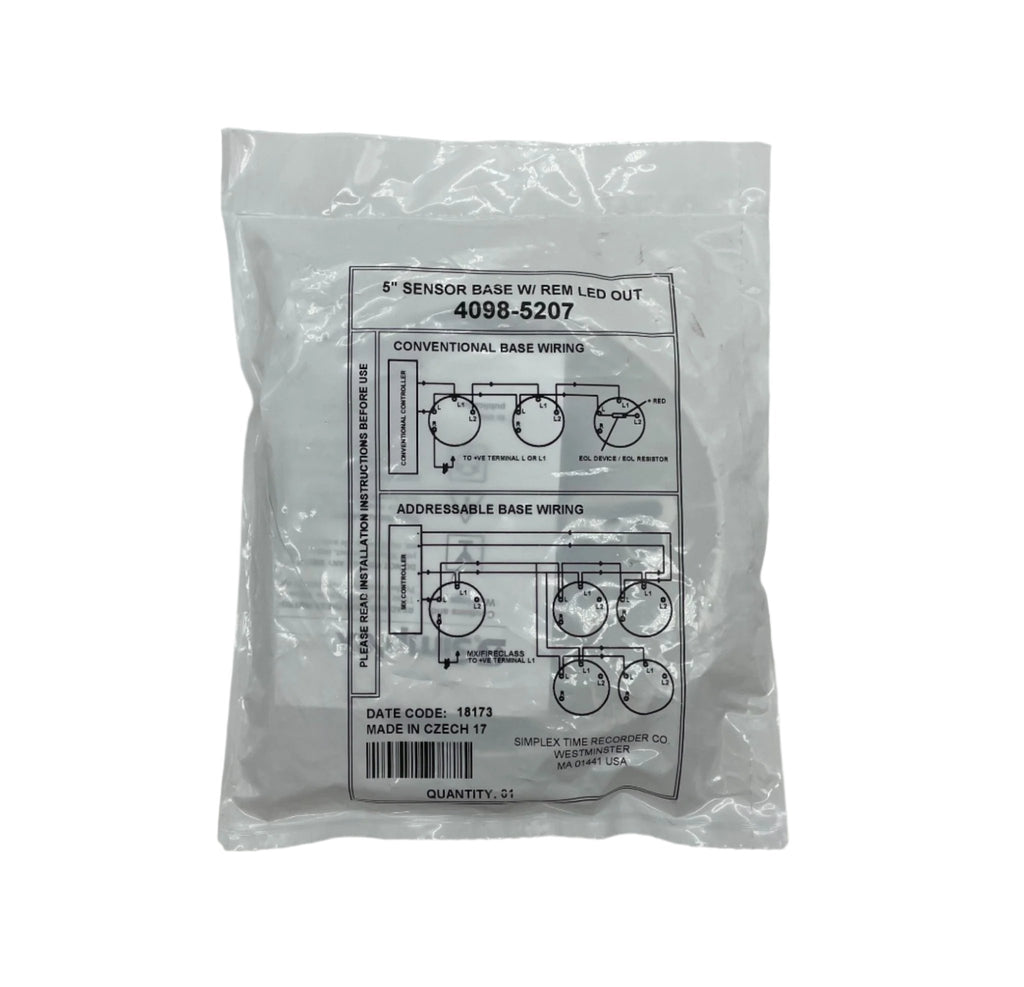

Simplex 4098-5207 is the 5 in. addressable sensor base with remote LED output for Simplex MX Technology smoke, heat and multi-sensors. It is compatible with a variety of standard ceiling and wall mount back boxes and is ordered separately from the sensor head.
The base carries the wiring terminals for the MX loop and remote LED connections for an indicator where the sensor LED cannot be seen. Anti-tamper and park features make service easier, and an address flag holder identifies the device.
Specifications
| Type |
5 in. addressable sensor base with remote LED output |
| For sensors |
Simplex MX Technology 4098-5201, 4098-5202, 4098-5203 |
| Panels |
4100ES, 4010ES and 4100U with MX Loop Module |
| Operating temperature |
-13 °F to 158 °F (-25 °C to 70 °C) continuous; up to 194 °F (90 °C) short term |
| Use |
Indoor only |
| Installation instructions |
579-936 |
Features
- Remote LED connections
- Anti-tamper facility
- Park position and address flag holder
- Integral breakout locking key
Related models
-
4098-5208: the same base with bi-directional short circuit isolation
-
2098-9808: remote LED alarm indicator for these bases
Documents
FAQ
Which sensors fit the 4098-5207?
It is the 5 in. standard base for Simplex MX Technology addressable sensors, such as the 4098-5201 heat, 4098-5202 photoelectric and 4098-5203 photo/heat multi-sensor.
Which panels use these sensors?
Simplex 4100ES, 4010ES and 4100U control panels equipped with an MX Loop Module.
Can it drive a remote LED?
Yes. It has remote LED connections, for example for the 2098-9808 remote LED alarm indicator.
Is the base required for 200 °F heat applications?
When the 4098-5201 heat sensor is set for 200 °F (93 °C), only the 4098-5207 standard base, 4098-5208 isolator base or 4098-5210 sounder base may be used.
