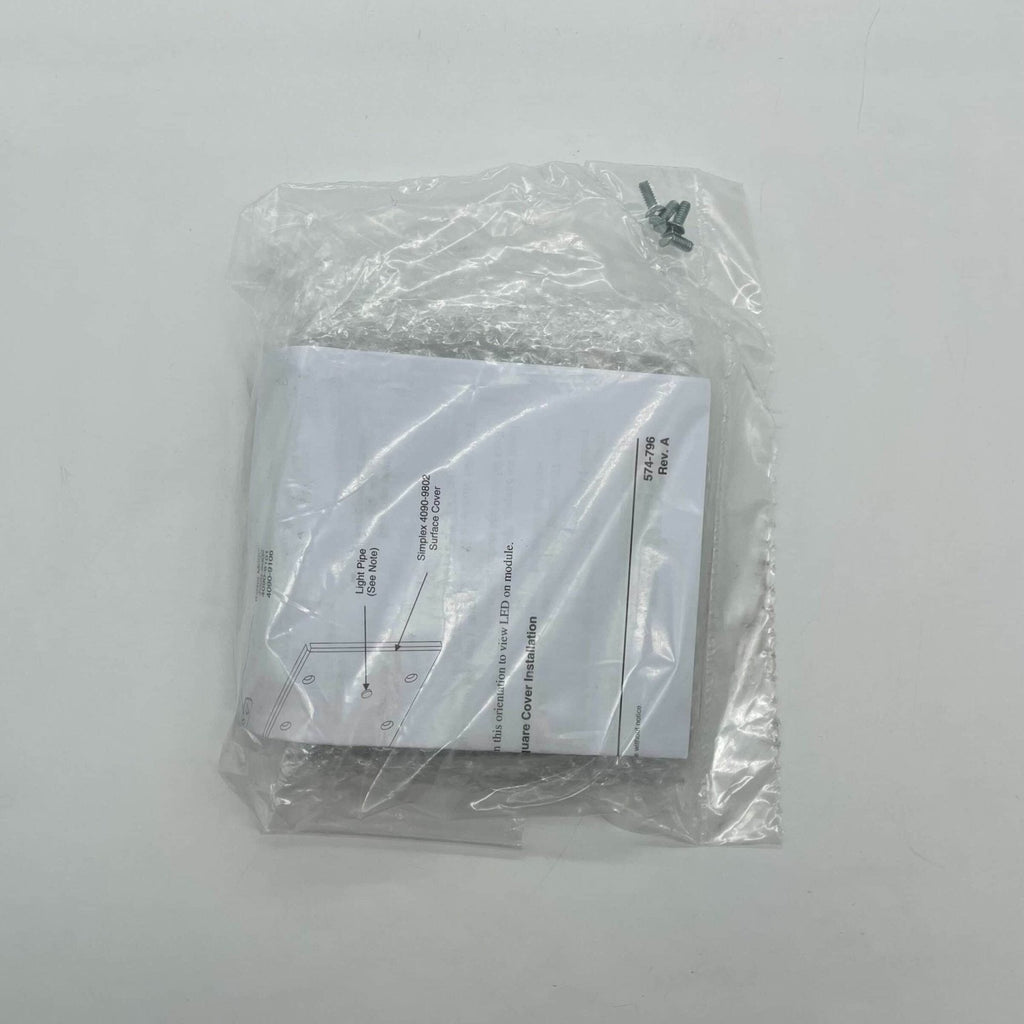

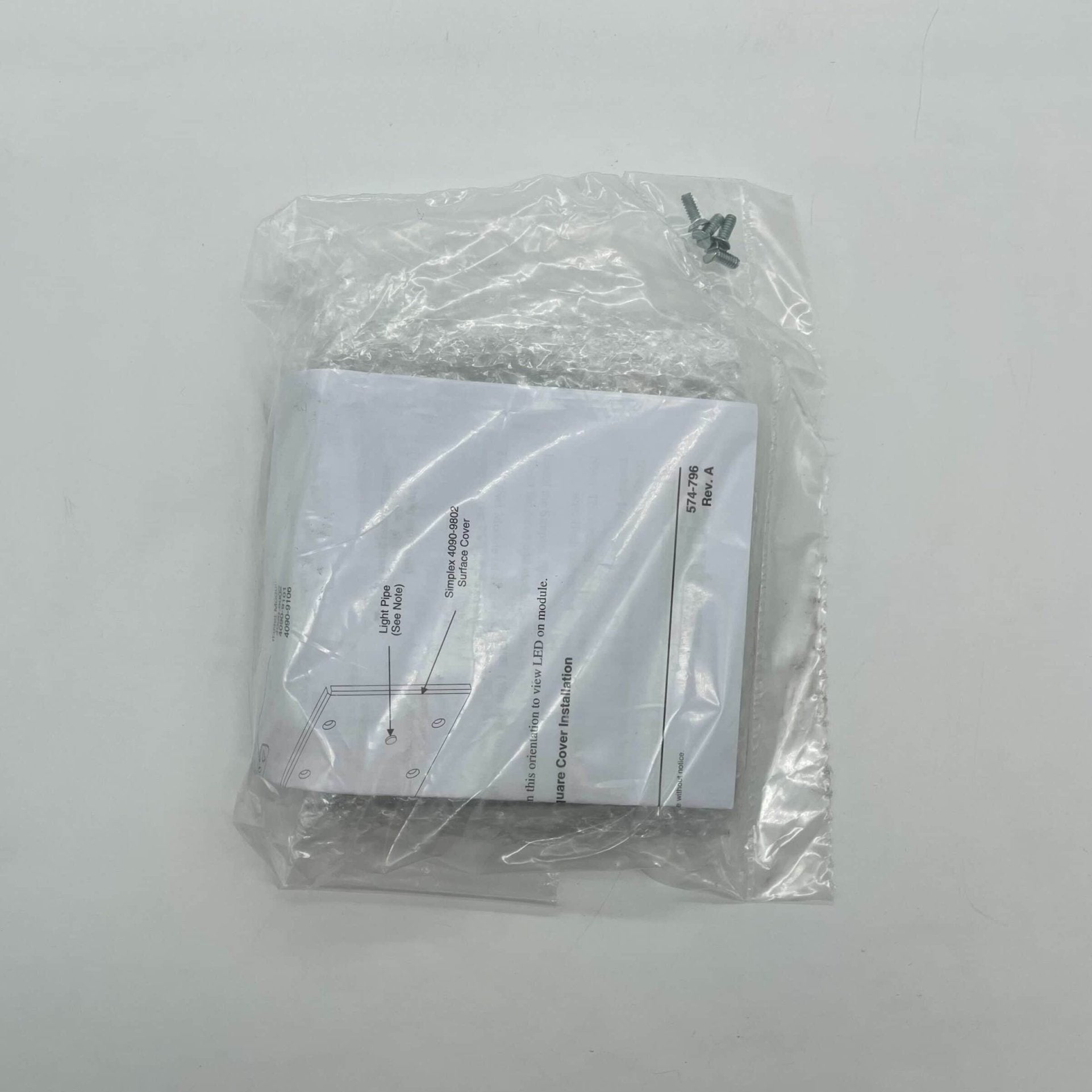

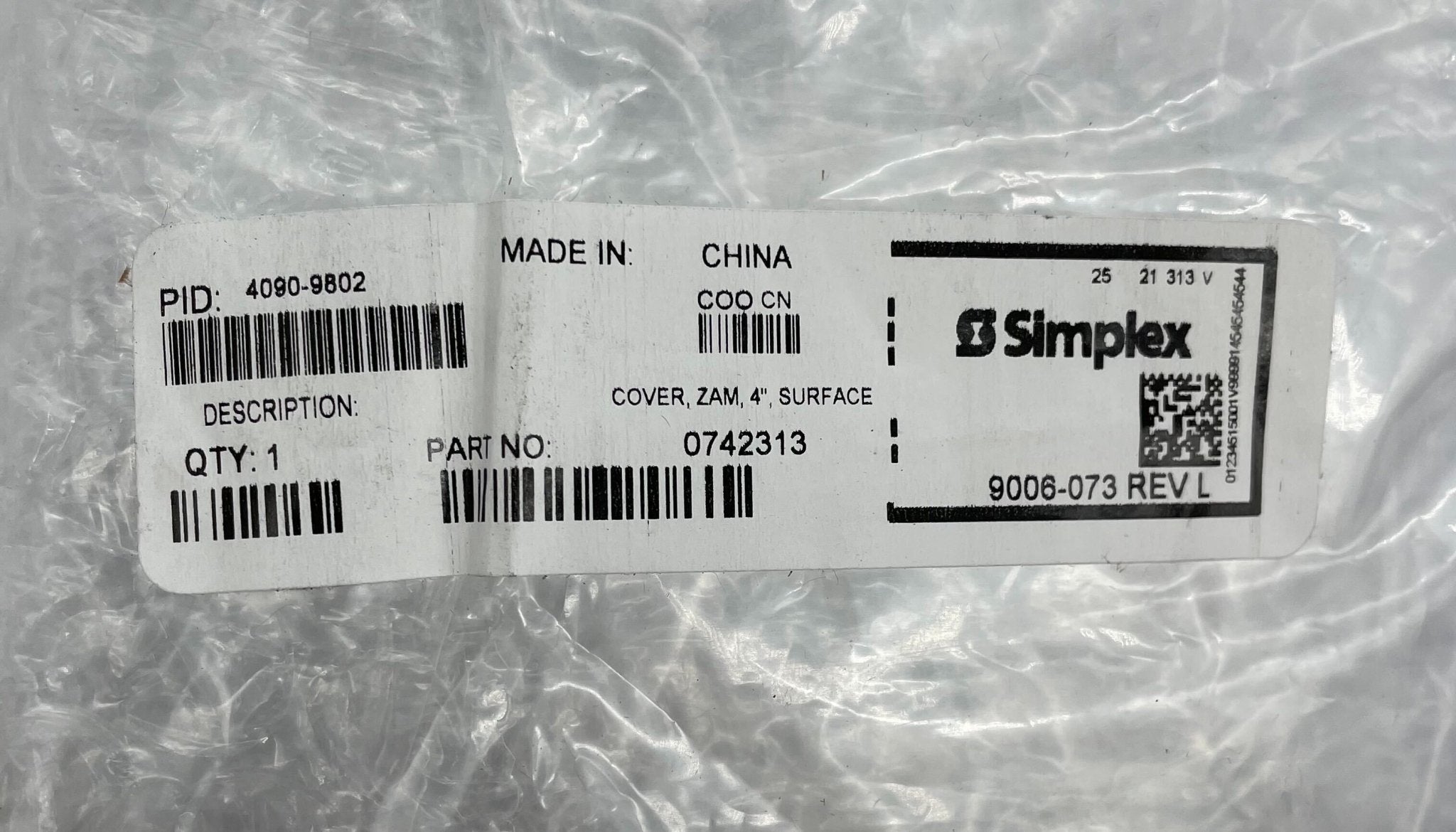

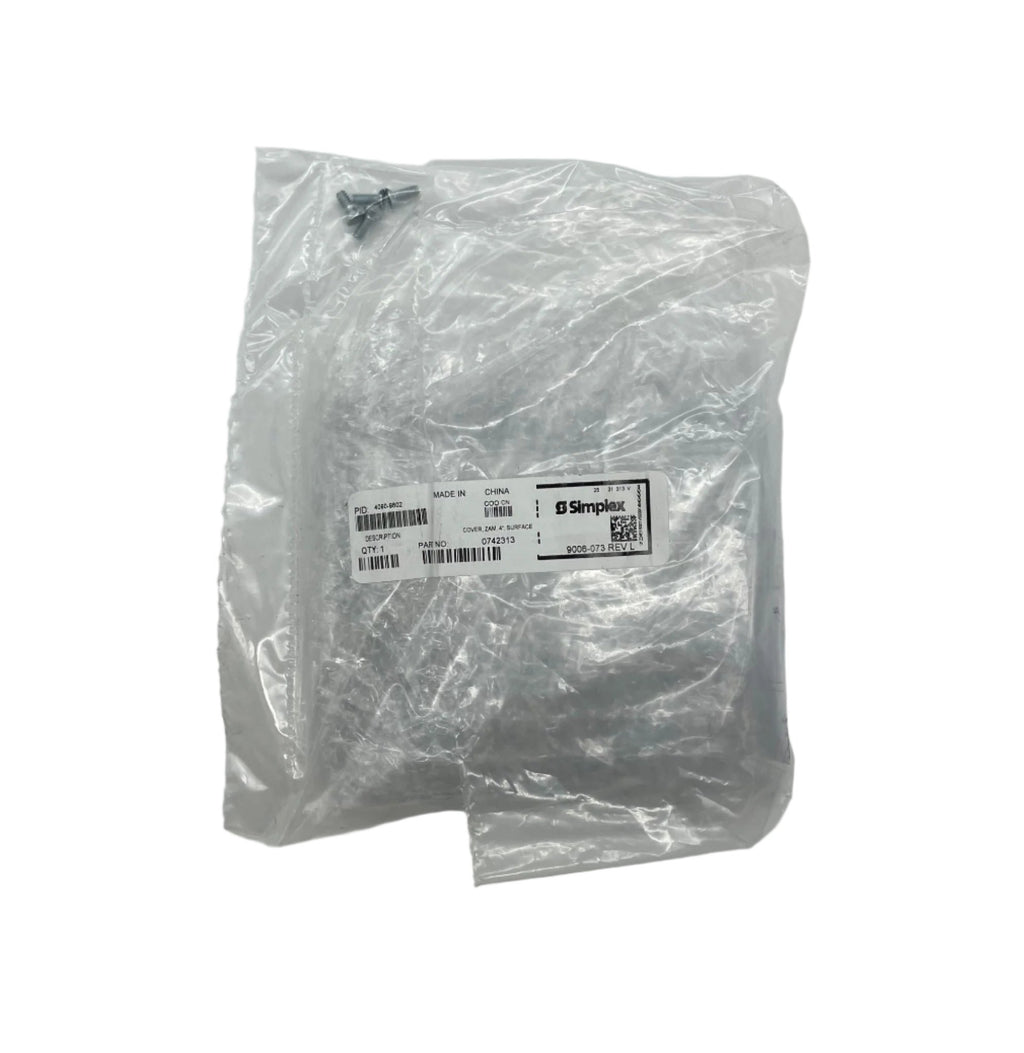

Simplex 4090-9802 — 4 inch surface cover with light pipe for IDNet Relay IAM and Monitor ZAM back boxes.
A ZAM or IAM sits in a 4 inch square box and reports its health with a communications LED that flashes roughly once every three seconds. A blank plate hides that LED, so verifying the module means opening a live box. This trim plate closes a surface-mounted box and carries a light pipe, letting the LED be read with the cover in place.
- Surface version; the 4090-9801 is the matching semi-flush cover for the same modules
- Named by Simplex as the surface cover for the 4090-9002 Relay IAM and the 4090-9101 and 4090-9106 Monitor ZAMs (574-183 Rev. E)
- Ordered separately from the module; installation is covered by Simplex publication 574-796
Check the module first. The 4090-9001 Supervised IAM takes the 4090-9806 semi-flush and 4090-9807 surface covers, which are not interchangeable with this pair.
Documents
FAQ
Which modules does the 4090-9802 fit?
Simplex names it as the trim plate for the 4090-9002 Relay IAM in a surface-mounted box. It is also used as the surface cover for the 4090-9101 and 4090-9106 monitor ZAMs.
What is the difference between the 4090-9802 and the 4090-9801?
The 4090-9802 is for a surface-mounted box; the 4090-9801 is for a semi-flush mounted box.
Why use this cover instead of a blank plate?
It has a light pipe so the module LED can be viewed without removing the cover. Where the LED does not need to be viewed, a standard double-gang blank cover plate (supplied by others) can be used.
