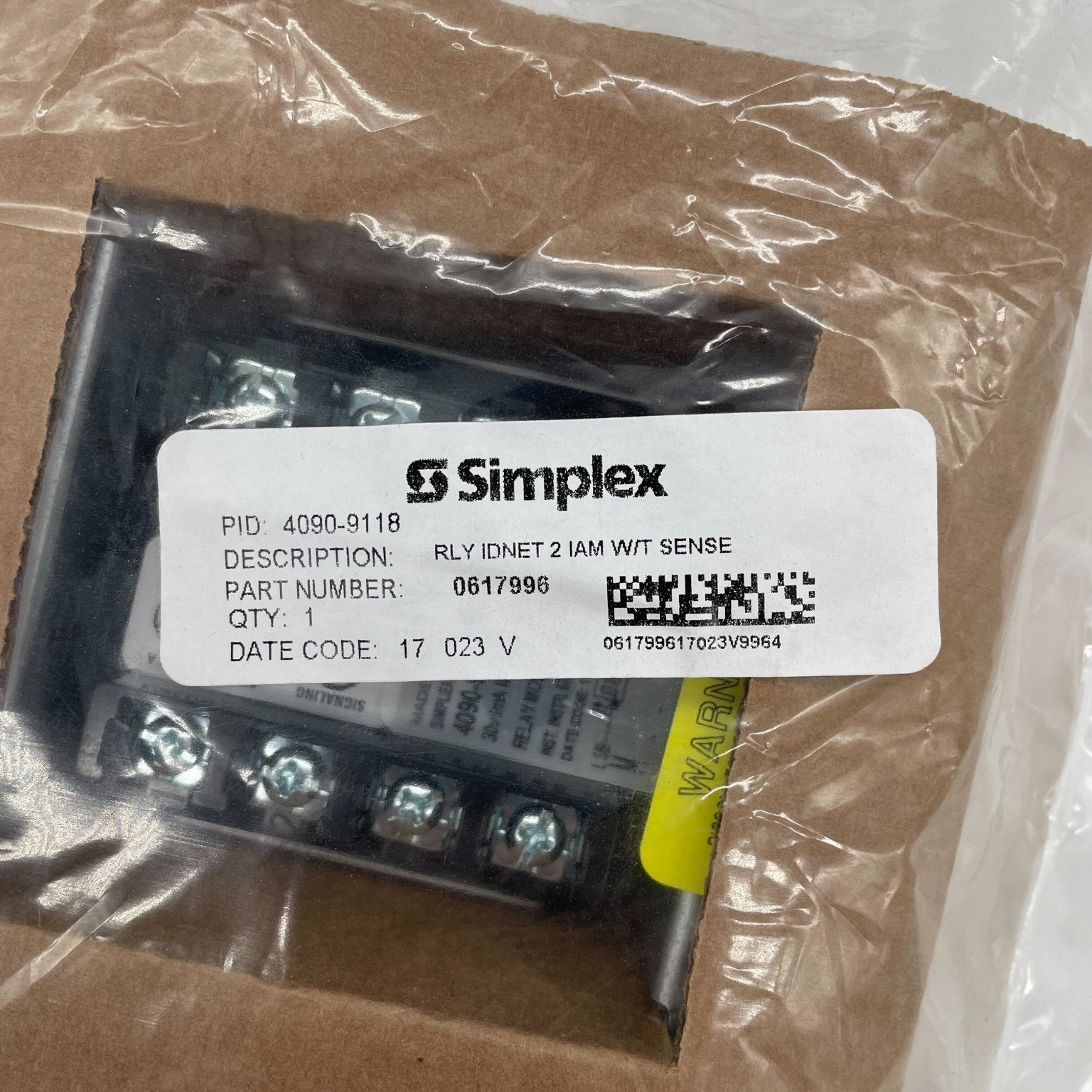

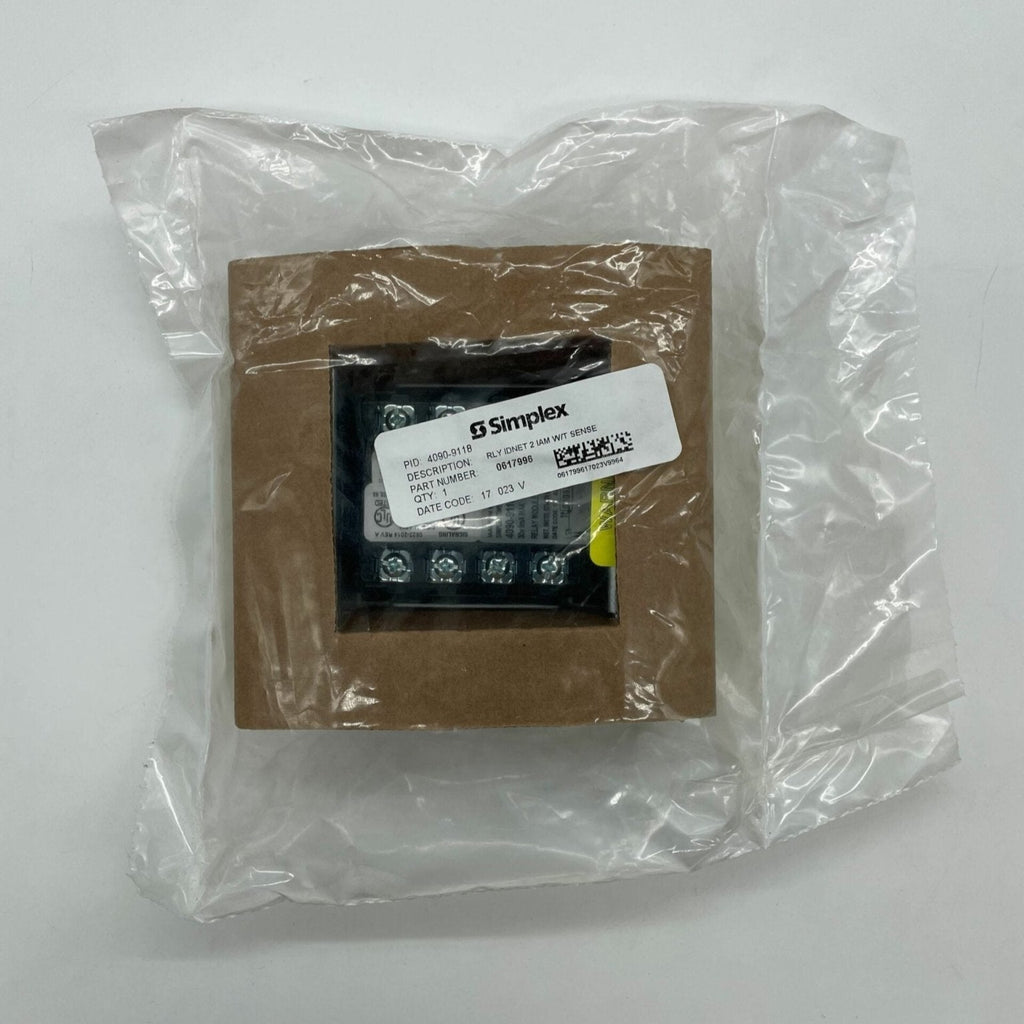

Simplex 4090-9118 is a Relay IAM (Individual Addressable Module) with T-Sense input for Simplex IDNet. On a single address it provides a supervised multi-state input and a Form C relay output, so a typical use is damper motor control with dual damper position feedback (open and closed).
The T-Sense input monitors for continuity to an end-of-line resistor and can tell a short from an open, so two contact closures can be monitored on one input. A low power latching relay lets the IDNet channel supply both data and module power, and the relay is set to OFF at power up and on loss of IDNet communications.
Specifications
| Panels |
Simplex 4007ES, 4010ES, 4100ES or 4100U with IDNet (4100U needs software revision 11 or higher) |
| Addressing |
Single IDNet address, dual point |
| Power |
From the IDNet communications channel; no separate power wiring |
| Relay contacts |
Form C; 2 A (1 A inductive) at 30 VDC; 0.5 A (0.25 A inductive) at 120 VAC; non-power-limited |
| Mounting |
Standard 4 in. square electrical box |
| Indication |
LED flashes to show communications |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Certification |
UL 864 |
Installation notes
- Input and relay operate independently and can be disabled separately.
- Screw terminals for wiring connections.
- Optional covers allow the LED to be viewed after installation.
Related models
- 4090-9001 supervised IAM
- 4090-9002 relay IAM
- 4090-9008 dual relay IAM
Documents
FAQ
Which Simplex panels support the 4090-9118?
The 4007ES, 4010ES, 4100ES and 4100U panels with IDNet; the 4100U needs software revision 11 or higher.
Does it need separate power?
No. Its low power latching relay design lets the IDNet channel supply both data and module power.
What is the T-Sense input?
A supervised input that monitors continuity to an end-of-line resistor and can tell a short from an open, so it can report two contact closures such as damper open and closed.
What happens to the relay if communication is lost?
The relay is set to OFF on initial power up and upon loss of IDNet communications.
